Outlet connecon
A check valve has been pre-installed within this macerator unit. Normally the installer does not need to install
additional check valves on the outlet pipework.

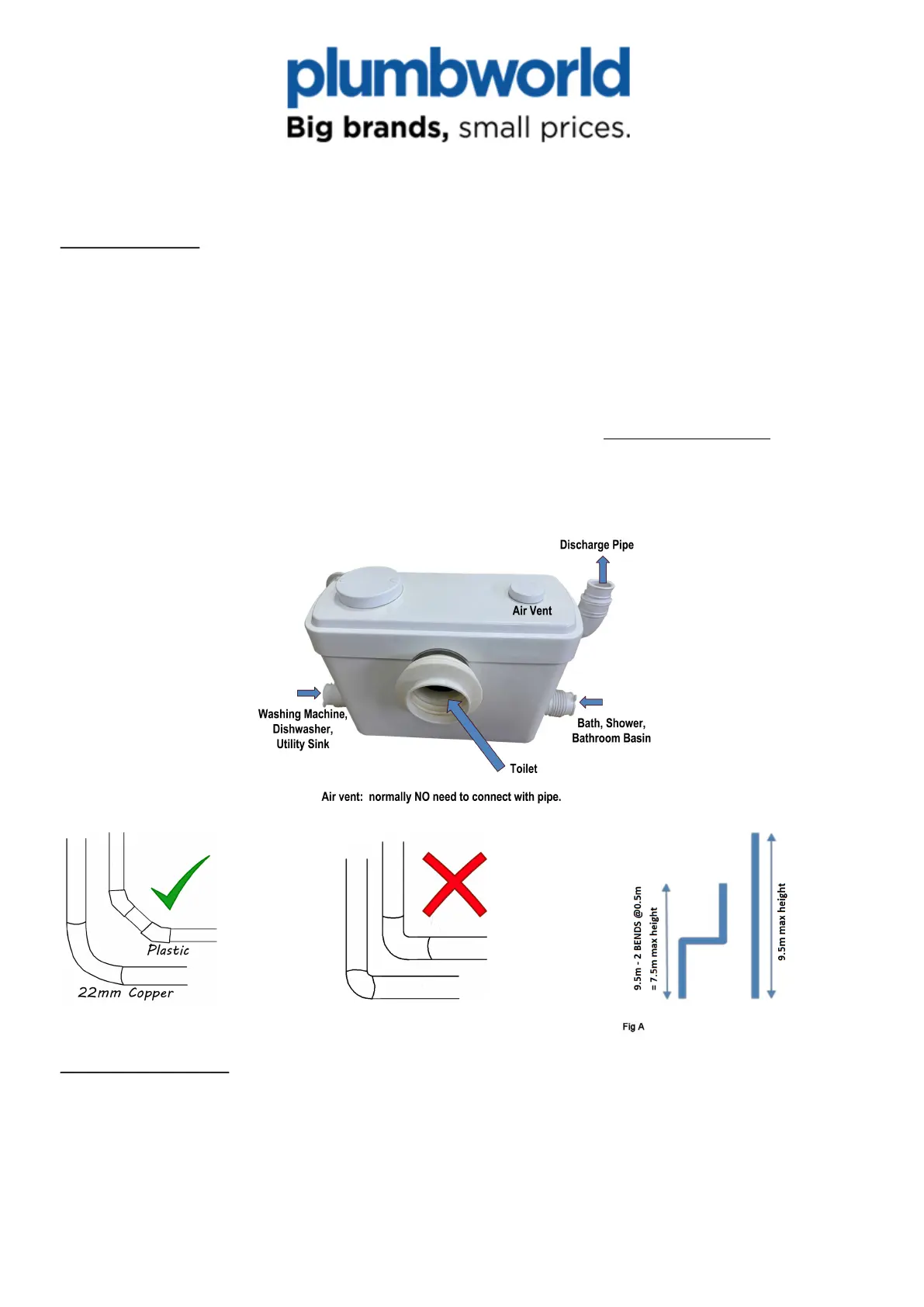

Push the outlet elbow connector into the unit and secure with a jubilee clip. See the following picture.
Horizontal runs of pipework should have a fall of 1%.
The outlet comes as standard with a 32mm connection however 22mm can be used with a reducer. If using bends in
the connecting pipe work ensure they are smooth curves to avoid blockages. Allow a reduction of 0.5m per bend
introduced, see Fig A for example.
Technical informaon
Motor Power—600W
Motor Duty Rating—S2
Maximum Vertical Pumping Distance—9.5 metres
Maximum Horizontal Pumping Distance—90 metres
Maximum Water Temperature— 45°C
Minimum Shower Waste Height—85mm
600W Lifting Station MACERP600A
