Axxon Composites
Page 5 of 15

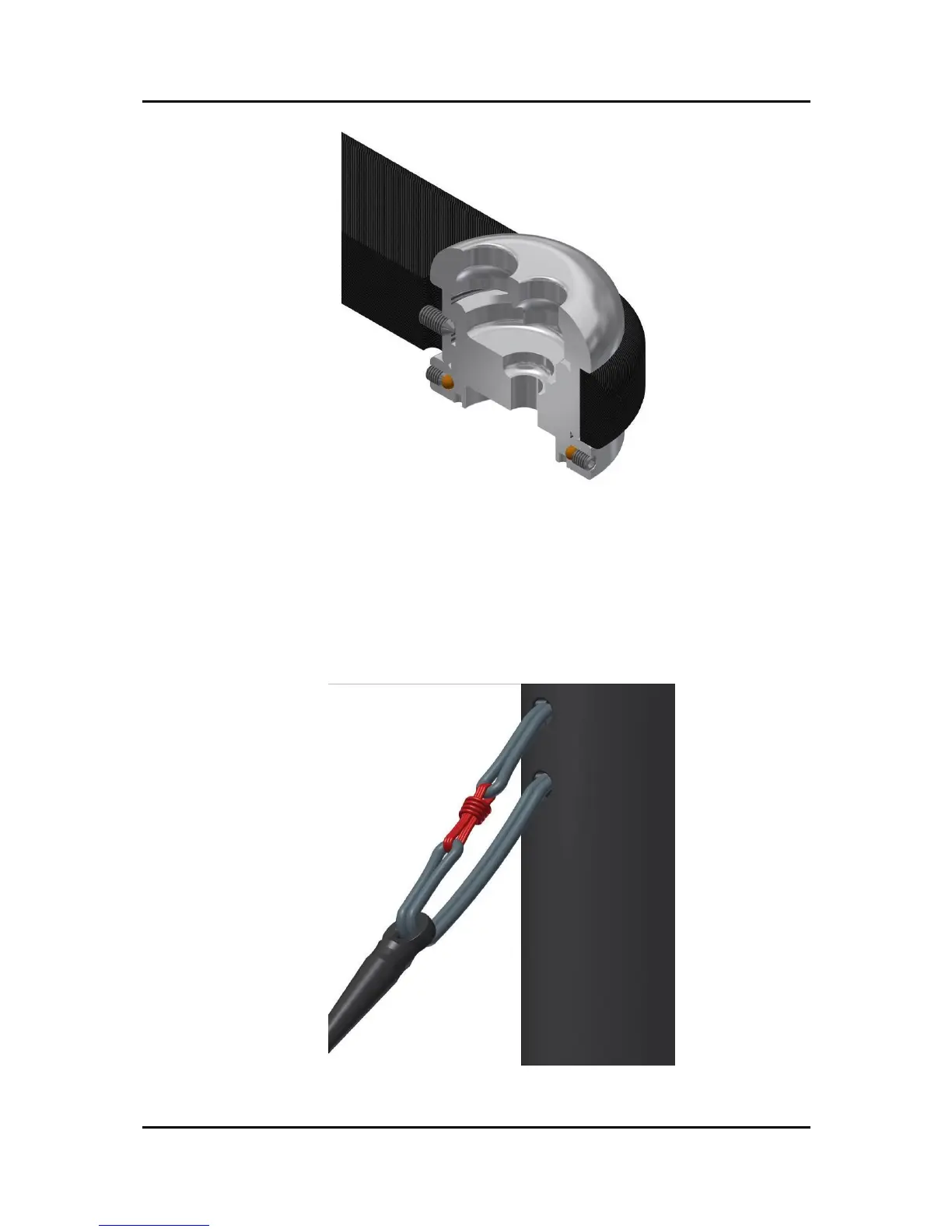

Figure 1 : Tipcup
Assembling the loop for headstay, runner or shroud without T-bone
a. Verify there is no aggressive part on the mast holes and the eye.
b. Pass the loop through the hole in the mast and the eye. Make a lashing between the two
extremities of the loop.
c. Make sure the final resistance of the loop is 1.5 times the breaking load of the cable.
d. Make sure the cable fitting will not be in contact with the mast. We required to protect
the area with protect tape.
Figure 2 : Lashing 1
