D3, D4 etc. adjustments
a. Follow the same procedure as for the D2.
* Tension of the diagonals needs to be adjusted according to luff curve of your mainsail
* The numbers indicated are estimated and relative to masts on 40 footers
Final check
a. Make sure all steps are completed.
b. Check pre bend of the mast.
c. Verify that the mast is straight laterally.
d. Check the bearing point of the mast plug on the base is centered about 40% from the
back of the mast.
e. For mast on keel, verify that the tie rods are tight.
f. Verify that the clevis pins and split pins are installed.
g. Verify that the turnbuckles are locked properly.
h. Verify that the locking screws of the tipcup are locked with Loctite 270.
i. Verify that the Tef-Gel has been applied properly.
j. Verify that the stemballs and the turnbuckles are aligned with the ROD.

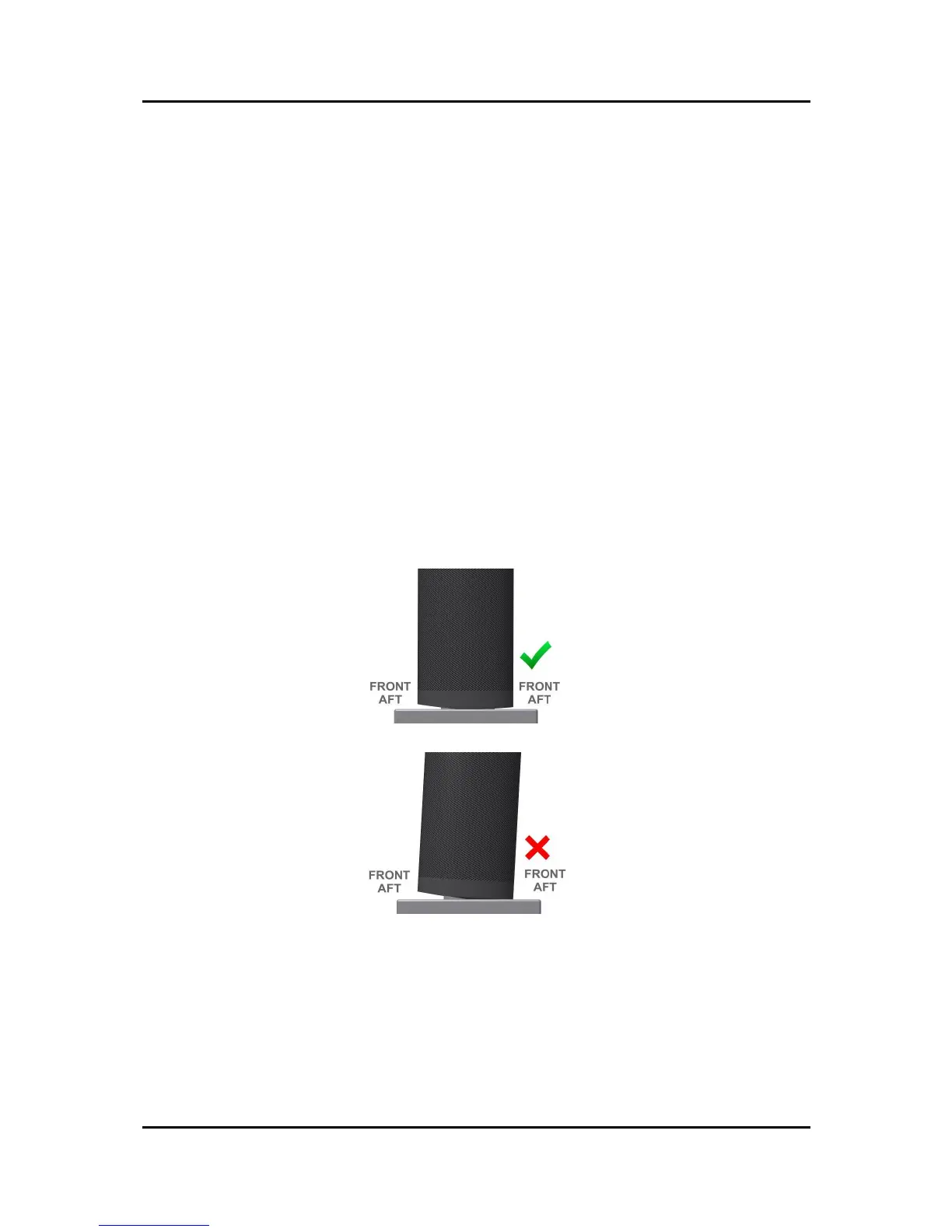

Figure 3 : Mast step
