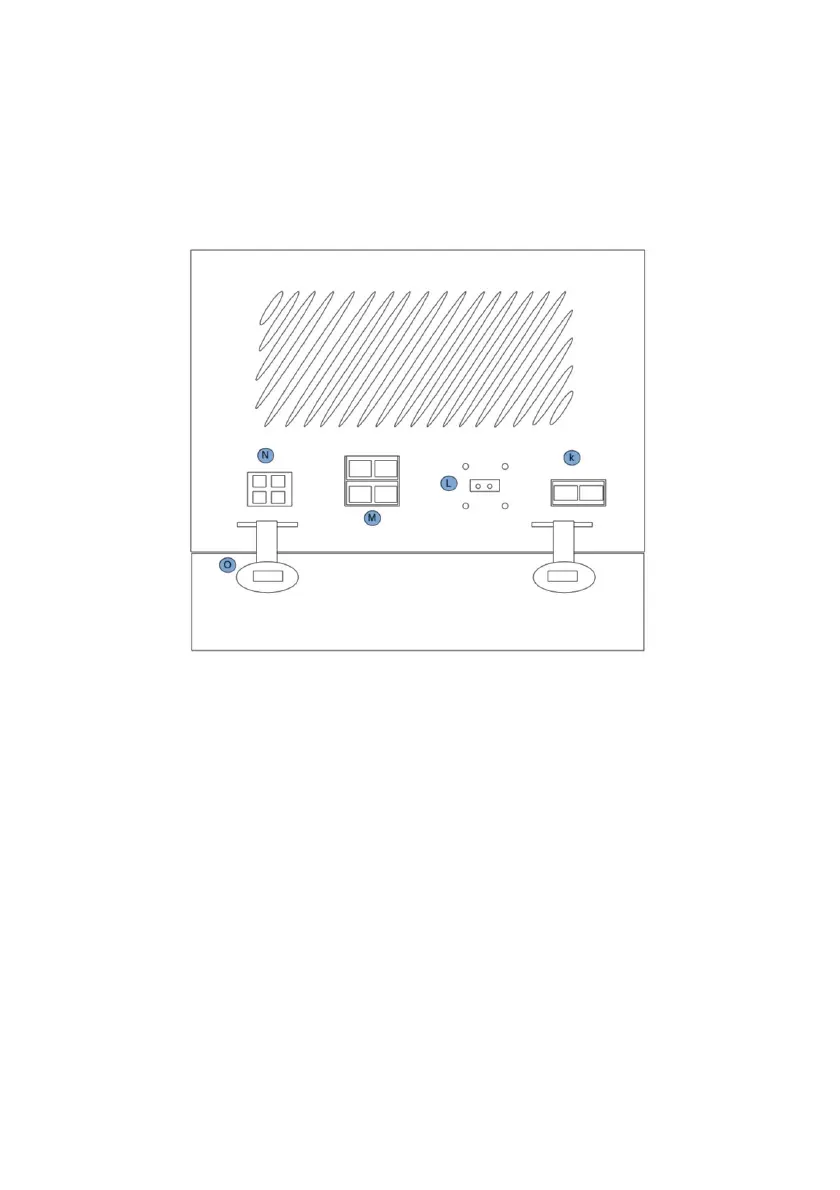

SIDE VIEW
K– External battery port
L– 12V Car Charging Port and Battery Reset Port (input voltage 10-20V
DC Max charging 160 watts)
M– AC Charging Ports. Max 50A per port @ 29.2V
N– Solar input ports. Max charging 1,000 watts per port. Max input amps
30, max VOC (voltage open circuit) 145V
O– Battery latch. Make sure the battery is secure with all 4 latches before
use
3
(Figure 2)
