39
THE PERFECT FIT
EDGE Rear Suspension Adjustments
Rear Shocks
Indy Select Rear Shock
Some snowmobiles are equipped with the Indy Select rear shock, which
allows for adjustments to the compression valving by turning the adjust-
ment screw located near the base of the shock.

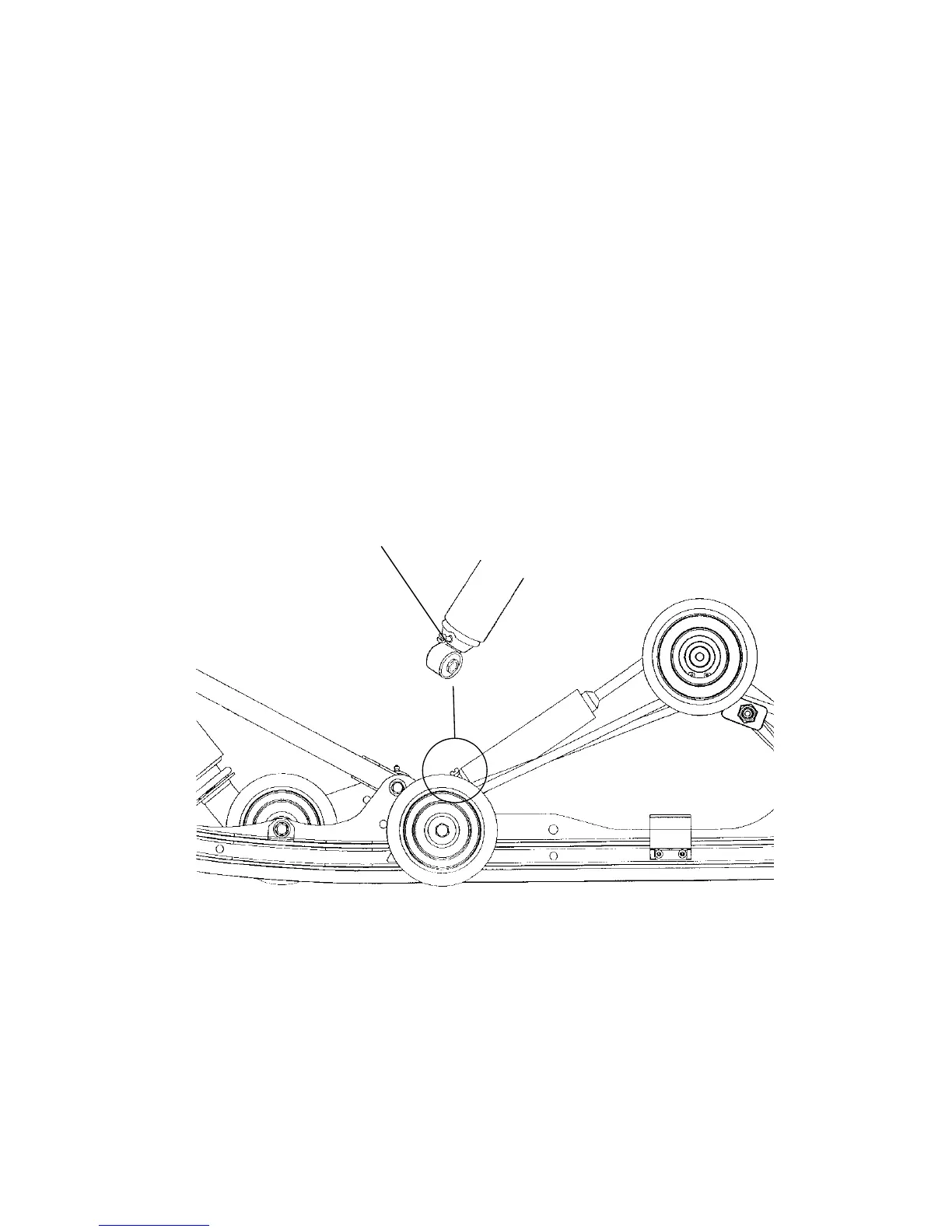

Locate the adjustment screw near the base of the shock. In half-turn
increments, turn the screw clockwise to increase compression valving
and stiffen the ride, or counterclockwise to reduce compression and
soften the ride. There are approximately three full turns of adjustment
available.
If bottoming continues after the screw has been turned fully clockwise,
the torsion spring should be adjusted (see page 38). Return the screw to
its original starting position after the torsion spring has been tightened.
Adjustment Screw
