3.36
Engine/Cooling/Exhaust

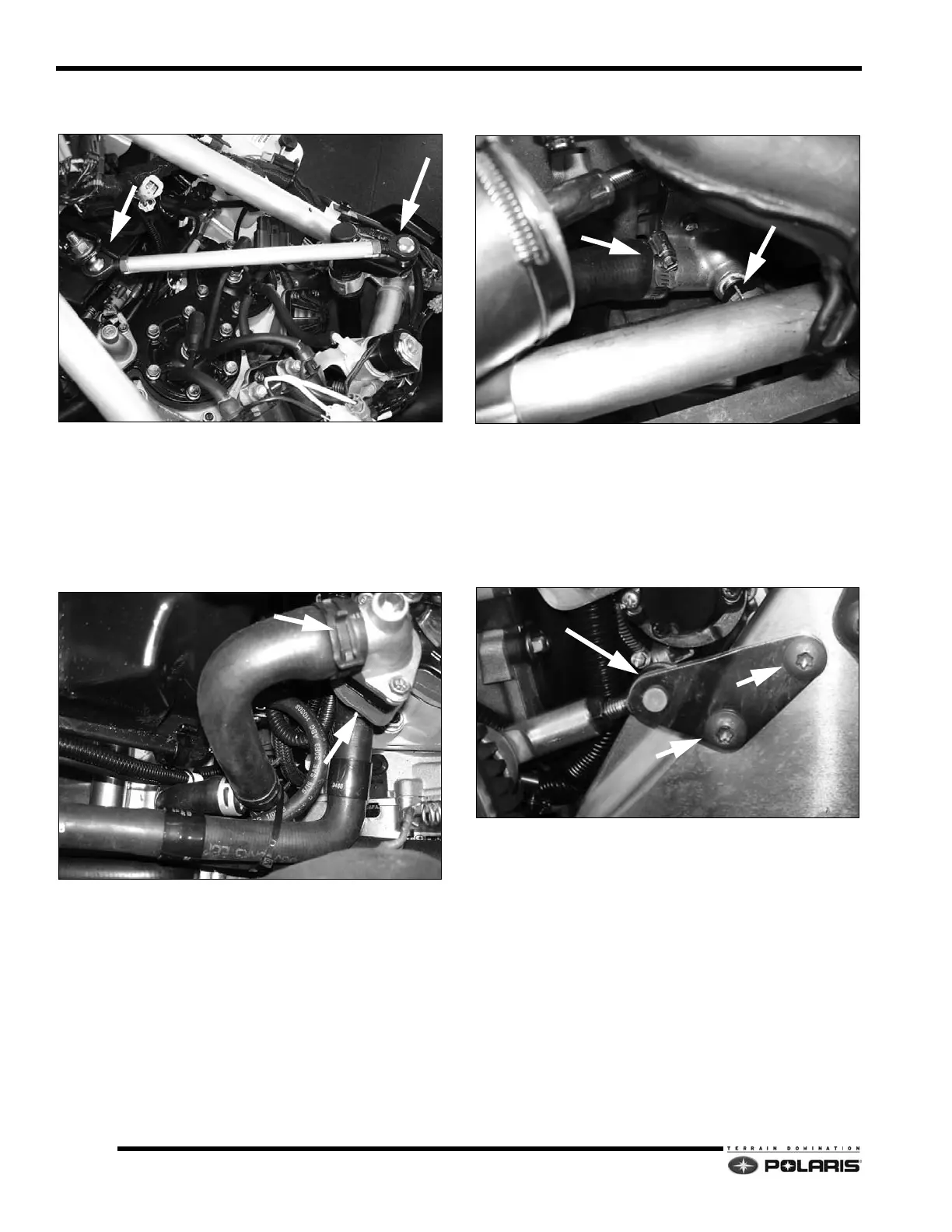

7. Remove the upper steering drag link from the lower
steering shaft.
8. Remove the airbox assembly.See “Air Box Servicing”
on page 2.24.
9. Remove the fuel supply and return hoses between the
fu
el tank and fuel rail mounted to the engine.
10. Remove the surge tank cap. Extract the engine
co
olant with a siphon or wet/dry vacuum.
11. Remove the thermostat bypass and main outlet hoses
fro
m the thermostat housing.
12. Remove the coolant return hoses from the water
pum
p cover.
13. Disconnect the throttle cable from the throttle body.
14. Cut the knot at the end of the recoil rope to remove
th
e handle. Pass the recoil rope through the console
and guide. Tie the recoil rope in a knot to prevent it
from retracting into the recoil housing.
15. Disconnect the engine torque link by removing the two
scr
ews securing the bracket to the bulk, and then the
torque link lock nut.
NUT ON BACKSIDE

Polaris 600 RUSH 2010 Specifications

General

Horsepower	120 HP
Engine Displacement	599 cc
Cylinders	2
Cooling	Liquid
Bore x Stroke	77.25 mm x 64 mm
Fuel System	Cleanfire Injection
Ignition	Digital CDI
Front Suspension	PRO-RIDE
Rear Suspension	PRO-RIDE
Track Width	15 in
Track Lug Height	1.25 in
Front Travel	9 in
Ski Stance	42.5 in
Brake	Hydraulic Disc
Width	48 in
Starter	Electric
Drive Clutch	P-85
Track Length	121 in
Rear Travel	14 in
Ski Type	Gripper
Driven Clutch	TEAM
