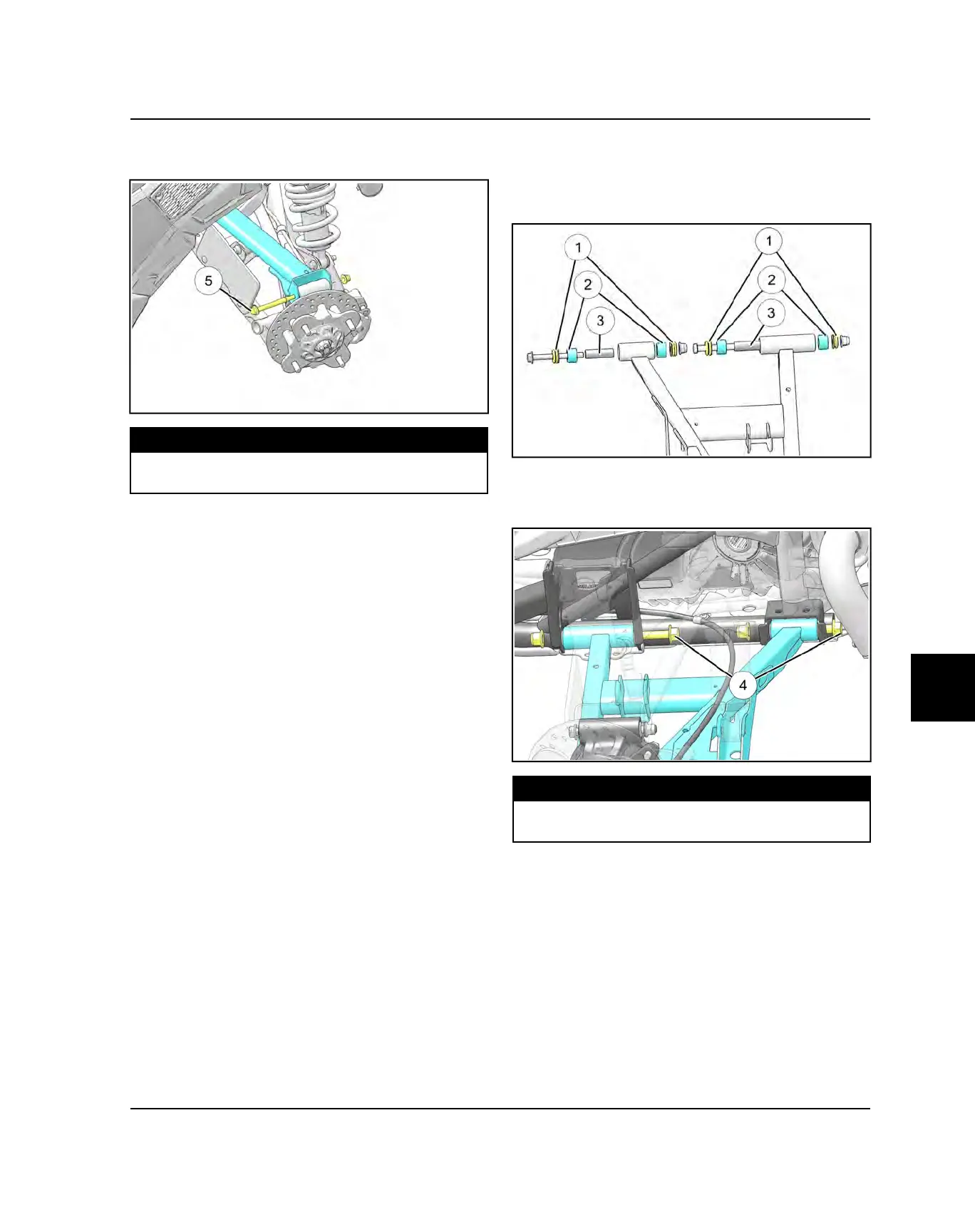

3. Install NEW fasteners
t
holding control arm to
bearing carrier. Torque fasteners to specification.
TORQUE
Rear Outer Upper Control Arm Fasteners:
42 lb-ft (57 Nm)
LOWER CONTROL ARM
1. Insert NEW pivot caps
q
, control arm bushings
w
,
and pivot tube
e
into new control arm. A light press
force may be needed.
2. Install lower control arm assembly onto vehicle frame.
Install NEW fasteners
r
holding control arm to
vehicle. Torque fasteners to specification.
TORQUE
Rear Inner Control Arm Fasteners:
40 lb-ft (54 Nm) + 90°
