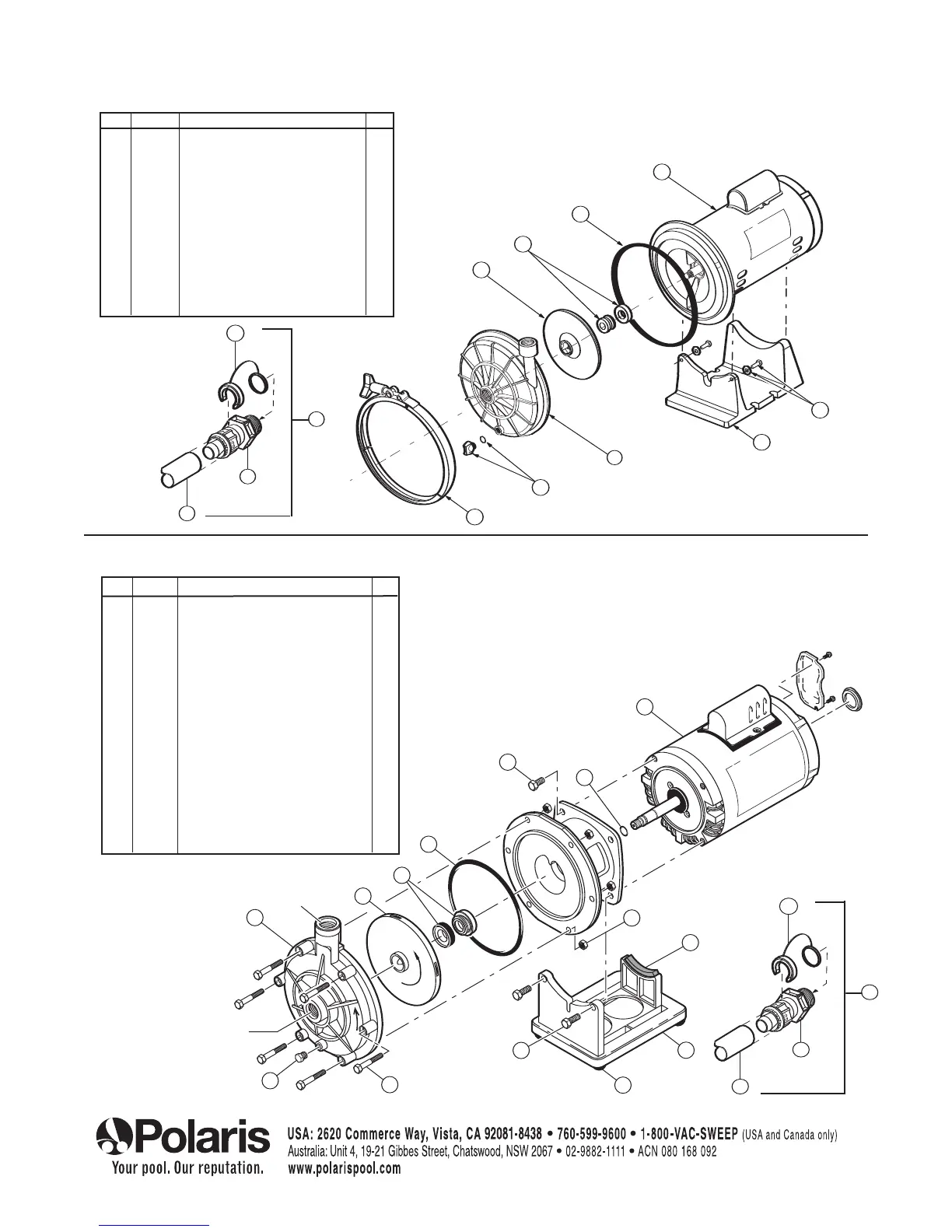

Exploded Parts Diagram
Polaris Halcyon Booster Pump Part #PB4-60Q
1 P64 3/4 HP Motor – Seal Plate Assembly 1
2 P85 O-Ring, Seal Plate 1
3
P84 Seal, Ceramic/Spring 1
4 P16 Impeller, 60 HZ 1
5 P82 Volute (Includes Drain Plug with O-Ring) 1
6 P87 Band Clamp 1
7 P88 1/2"-20 UNF Drain Plug with O-ring 1
8 P86 Pump Stand 1
9 P91 1/4-20 x .75" Bolt with washer 2
10 P17 Installation Kit, Softube® Quick Connect 1
11 P19 Pump Hose, 6 Ft, Flexible Reinforced 1
12 P133 Softube® Quick Connect 4
13 P21 Pump Quick Connect Retainer 4
R
O
T
A
T
I
O
N
Inlet
13
1
3
6
2
8
9
10
12
11
9
14
4
7
Outlet
16
17
18
15
No. Part # Description Qty
Polaris Booster Pump Part #PB4-60
No. Part # Description Qty
1 P5 Volute (Includes Drain Plug) 1
2 P15 Impeller 1
3 P55 Seal, Stainless Steel Cup/Spring 1
4 P95 O-Ring, Bracket 1
5 P10 Bracket 1
6 P35 Bolt, Stainless, Bracket to Motor 2
7 P40 O-Ring for Shaft 1
8 P61 Motor, 3/4 HP, Threaded Shaft, 60 Hz 1
9 P25 Bolt/Nut, Stainless for Volute to Bracket 6
10 P80 Rubber Strip, Motor/Bracket 1
11 P70 Pump Stand with Feet, Strip 1
12 P75 Rubber Feet 4
13 P65 Bolt, Stainless, Stand to Bracket and Motor 2
14 P20 1/8" NPTM Plug, Plastic 1
15 P17 Installation Kit 1
16 P19 Pump Hose, 6 Foot, Flexible Reinforced 1
17 P133 Softube™ Quick Connect 4
18 P21 Pump Quick Connect Retainer 4
