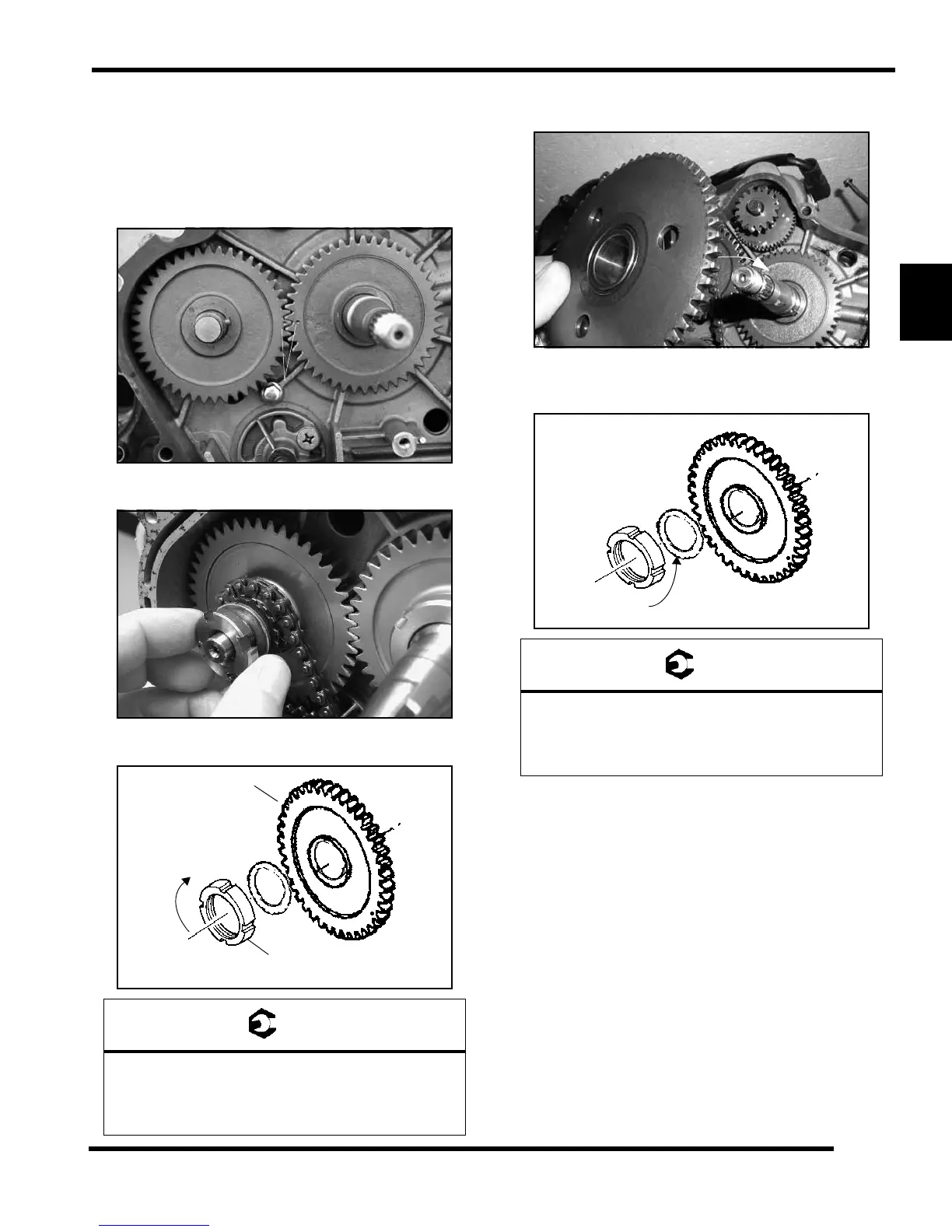

Crankshaft, Balance Shaft and Starter Drive
Gear Installation
1. Install woodruff keys on the balancer shaft and
crankshaft.
2. Install and align the marks of the balance shaft gear
and the crankshaft gear as shown.
3. Install the oil pump drive sprocket, washer and slotted
nut onto the balance shaft.
4. Using Slotted Nut Socket PA-47344, tighten the nut to
the specified torque.
5. Install the Starter Drive one-way gear assembly,
washer and slotted nut.
6. Using Slotted Nut Socket PA-49935, tighten the crank
shaft nut to the specified torque. NOTE: Slotted nut is
left hand threaded.
= T
Balance Shaft Slotted Nut:
43 ft-lbs(59 Nm)
Special Tool:
PA-47344
Alignment marks
A
B
Install
= T
Crankshaft Slotted Nut Torque:
43 ft-lbs (59 Nm)
Special Tool:
PA-49935
Install
