ENGINE SERVICE
ACCESSIBLE ENGINE COMPONENTS
The following components can be serviced or removed
with the engine installed:
• Camshaft(s)
• Camshaft Sprocket(s)
• Cylinder Head
• Flywheel
• Oil Cooler
• Starter Motor / Idler Gear Asm
• Stator (Alternator)
• Thermostat
• Valve Cover
• Water Pump
The following components require engine removal for
service:
• Camshaft Timing Chain
• Connecting Rod(s)
• Counterbalance Shaft / Bearings
• Crankcase
• Crankshaft / Main Bearings
• Crankshaft Seal (PTO)
• Cylinder
• Oil Pump / Oil Pump Sprocket or Chain
• Piston / Rings
FRONT ENGINE MOUNT ISOLATOR
REPLACEMENT

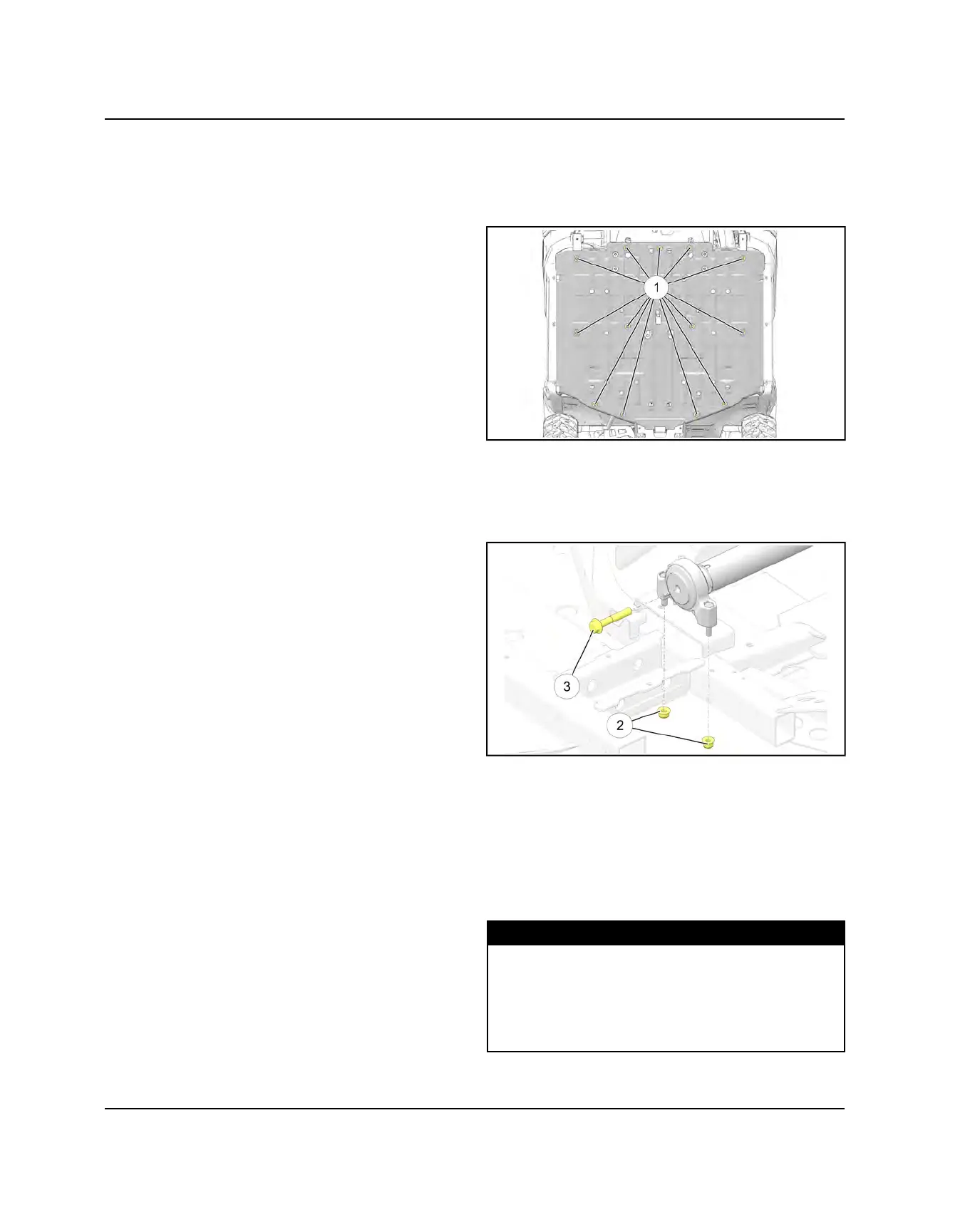

1. Remove the rear skid plate fasteners
q
and remove
the skid plate from the vehicle.
2. Using a commercially available transmission lift or
pump jack, lift the front engine mount to take the
weight off the isolators.
3. Remove the nuts
w
retaining the isolator mounts to
the frame.
4. Remove the isolator bolt
e
and remove the isolator.
5. Install new isolator and bolt. Torque fastener to
specification.
6. Lower the lift or jack and align the isolator tang with
the holes in the frame. Install isolator to frame
fasteners. Torque fasteners to specification.
7. Install rear skid plate. Torque fasteners to
specification.
TORQUE
Isolator Bolts:
40 ft-lbs (54 Nm)
Engine Mount Isolator Nuts:
22 ft-lbs (30 Nm)
Skid Plate Fasteners:
6 ft-lbs (8 Nm)
