9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.

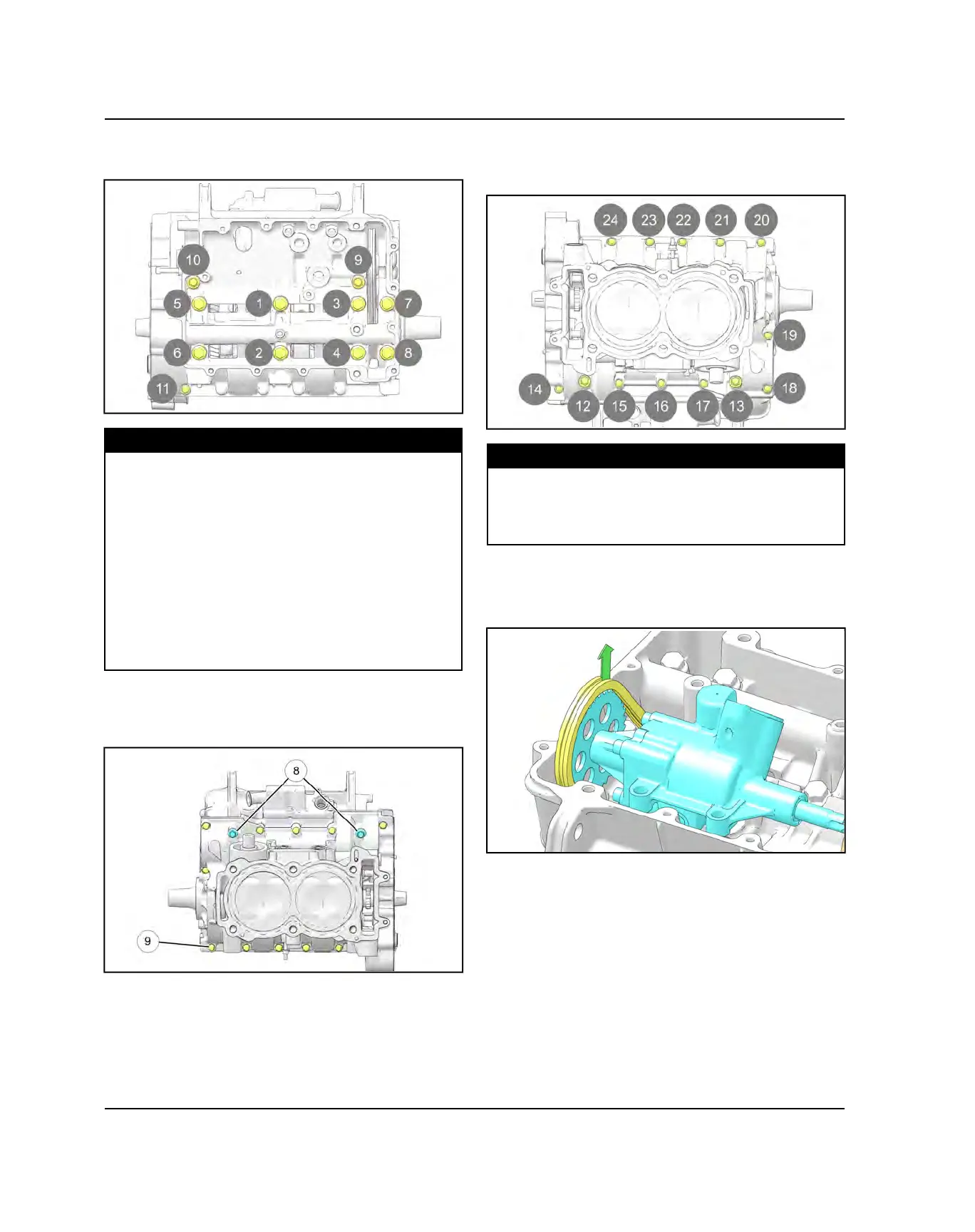

10.Torque lower crankcase bolts in sequence to
specification. Repeat sequence to verify final torque.
TORQUE
Lower Crankcase Bolts:
M10 Bolts:
Step 1: 9 ft-lb (12 Nm)
Step 2: 21 ft-lb (28 Nm)
Step 3: Tighten add’n 90°
M8 Bolts:
26 ft-lbs (35 Nm)
M6 Bolts:
9 ft-lbs (12 Nm)
11. Rotate the engine so the cylinder is facing up.
12.Install the eleven M6
o
and two M8
i
upper
crankcase bolts. Tighten all bolts lightly by hand.
13.Torque the upper crankcase bolts in sequence to
specification (start with #12). Repeat the sequence to
verify final torque.
TORQUE
Upper Crankcase Bolts:
M8 Bolts: 26 ft-lbs (35 Nm)
M6 Bolts: 7 ft-lbs (10 Nm)
14.Rotate the engine so the cylinder is facing down.
15.Install a new seal on the oil pump.
16.Lift the oil pump drive chain and install the oil pump.
ENGINE / COOLING / EXHAUST
