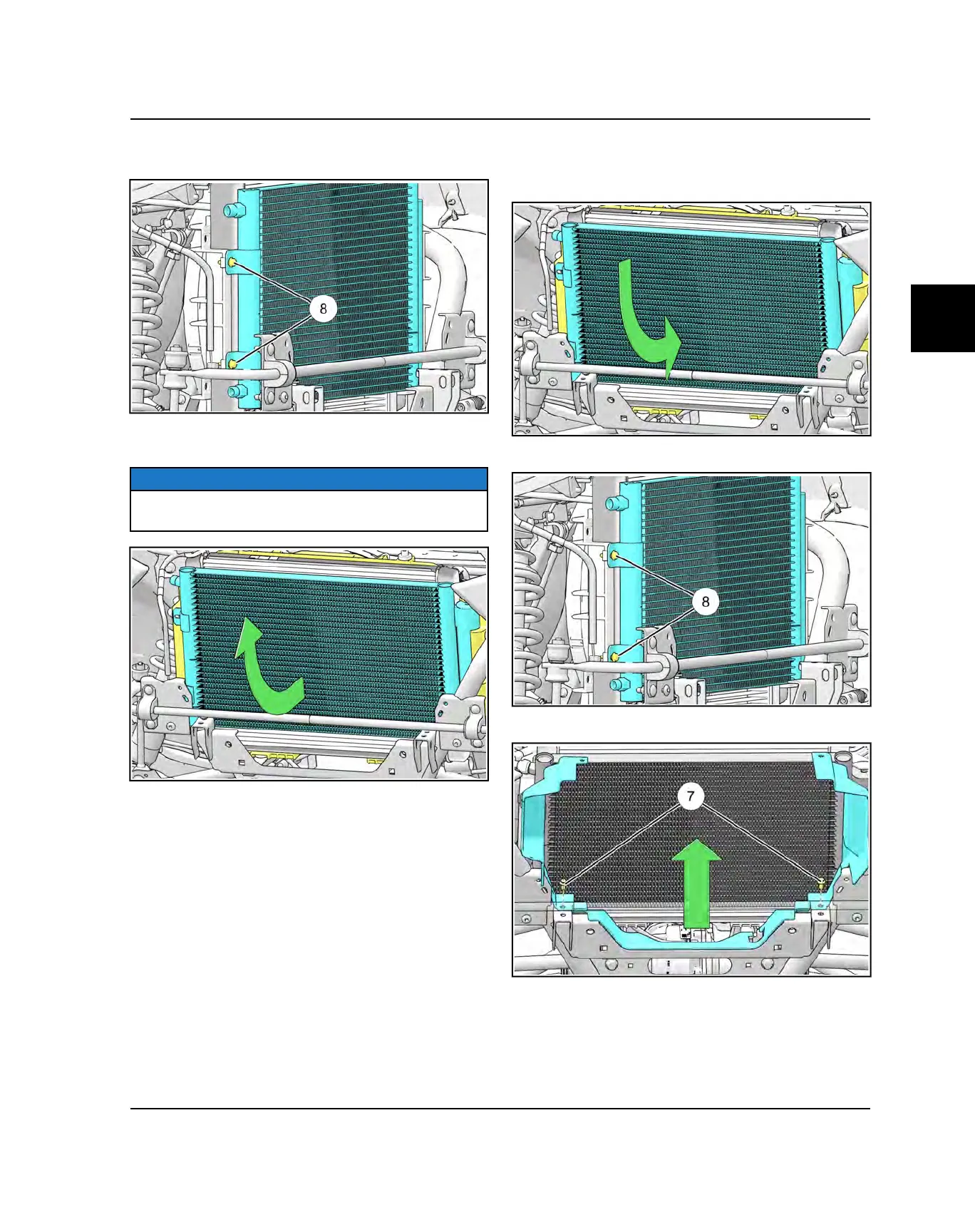

8. Remove the two bolts
i
retaining the condenser to
the radiator support.
9. Pull the condenser forward to release from radiator
support and lift straight up to remove.
NOTE
Receiver Drier is contained within the condenser and is
not replaced separately.
CONDENSER INSTALLATION
1. Install the condenser straight down and into radiator
support bracket.
2. Reinstall the two condenser retaining fasteners
i
.
3. Install the front shroud and two push rivets
u
.
