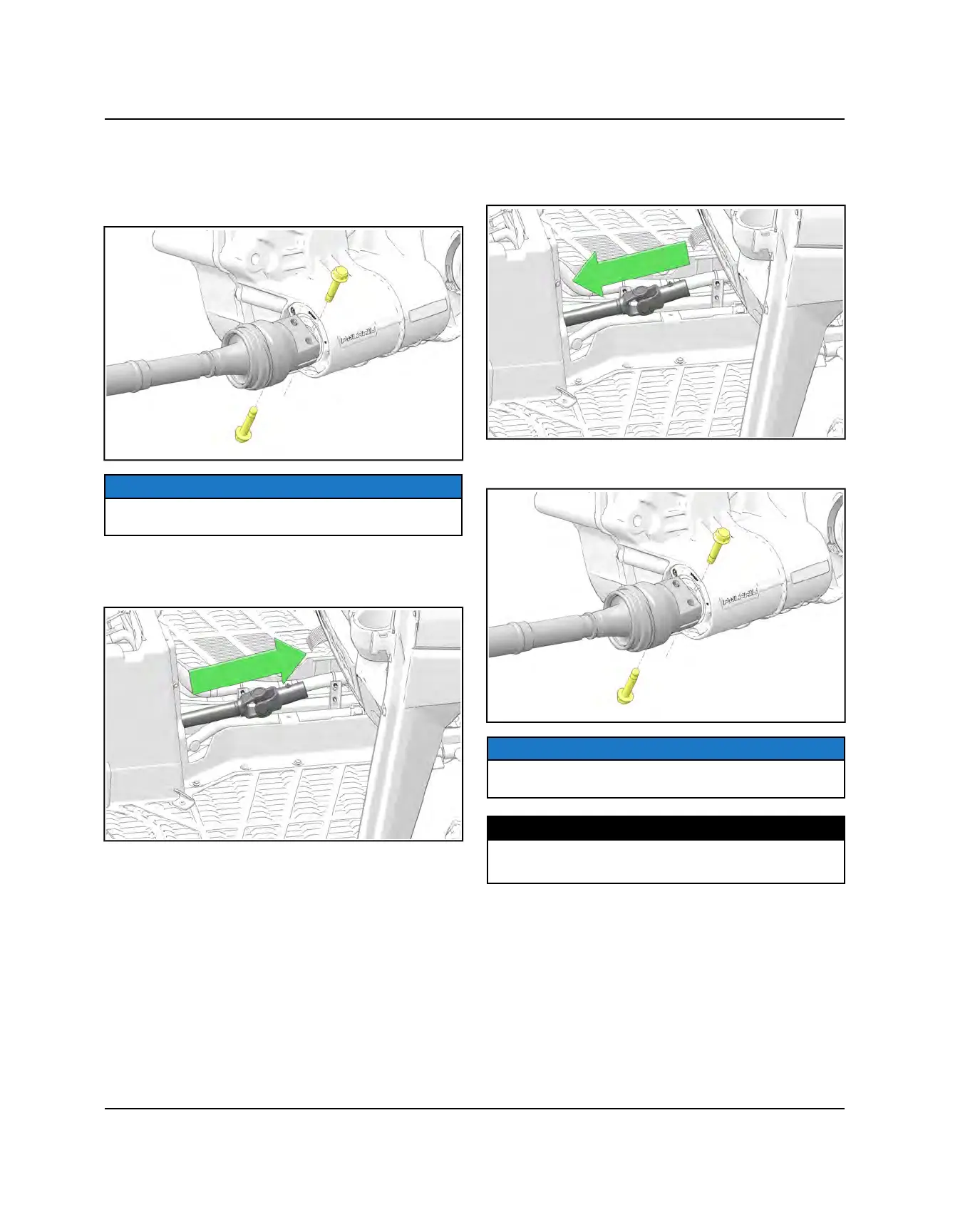

REAR PROP SHAFT REMOVAL
1. Perform Front Prop Shaft Removal, page 7.10.
2. Remove two fasteners securing the Rear Prop Shaft
to the transmission.
NOTE
Access the Rear Prop Shaft from the rear driver side of
the vehicle.
3. Disengage the Rear Prop Shaft from the
transmission. Remove the Rear Prop Shaft through
the opening in the floor.
REAR PROP SHAFT INSTALLATION
1. Install the Rear Prop Shaft through the opening in the
floor.
2. Install two fasteners securing the Rear Prop Shaft to
the transmission.
NOTE
Access the Rear Prop Shaft from the rear driver side of
the vehicle.
TORQUE
Rear Prop Shaft Fasteners:
40 ft-lbs (54 Nm)
3. Perform Front Prop Shaft Installation, page 7.13.
