Polaris RANGER XP 1000 2018 - Roof Assembly View

10.14
9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.

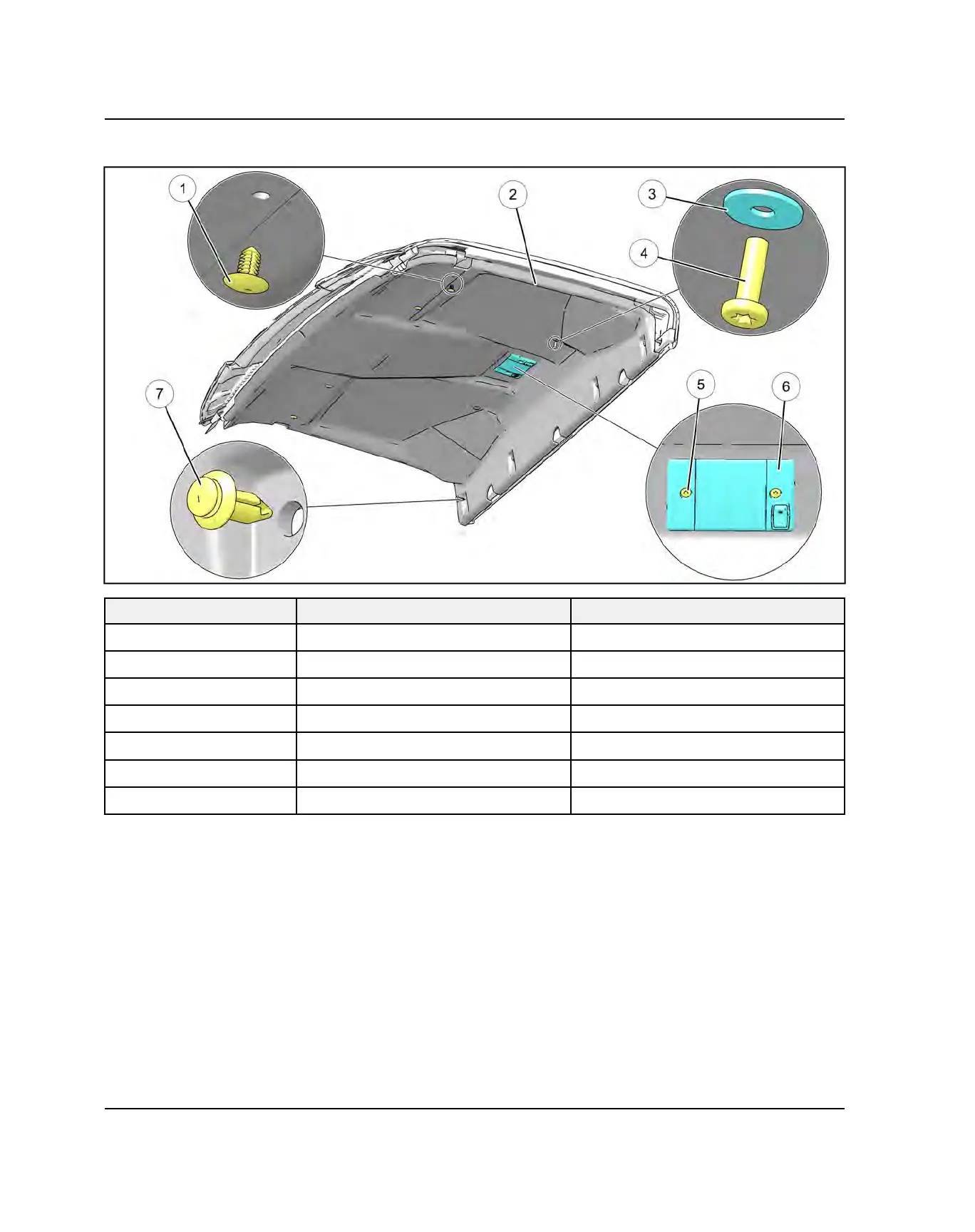

ROOF ASSEMBLY VIEW
REF
DESCRIPTION TORQUE
q
CLIP DART
NA
w
HEADLINER NA
e
WASHER
NA
r
HEADLINER FASTENER 24 in-lbs (3 Nm)
t
OVERHEAD LIGHT FASTENER 18 in lbs (2 Nm)
y
OVERHEAD LIGHT
NA
u
PUSH RIVET
NA
BODY / FRAME
