9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.

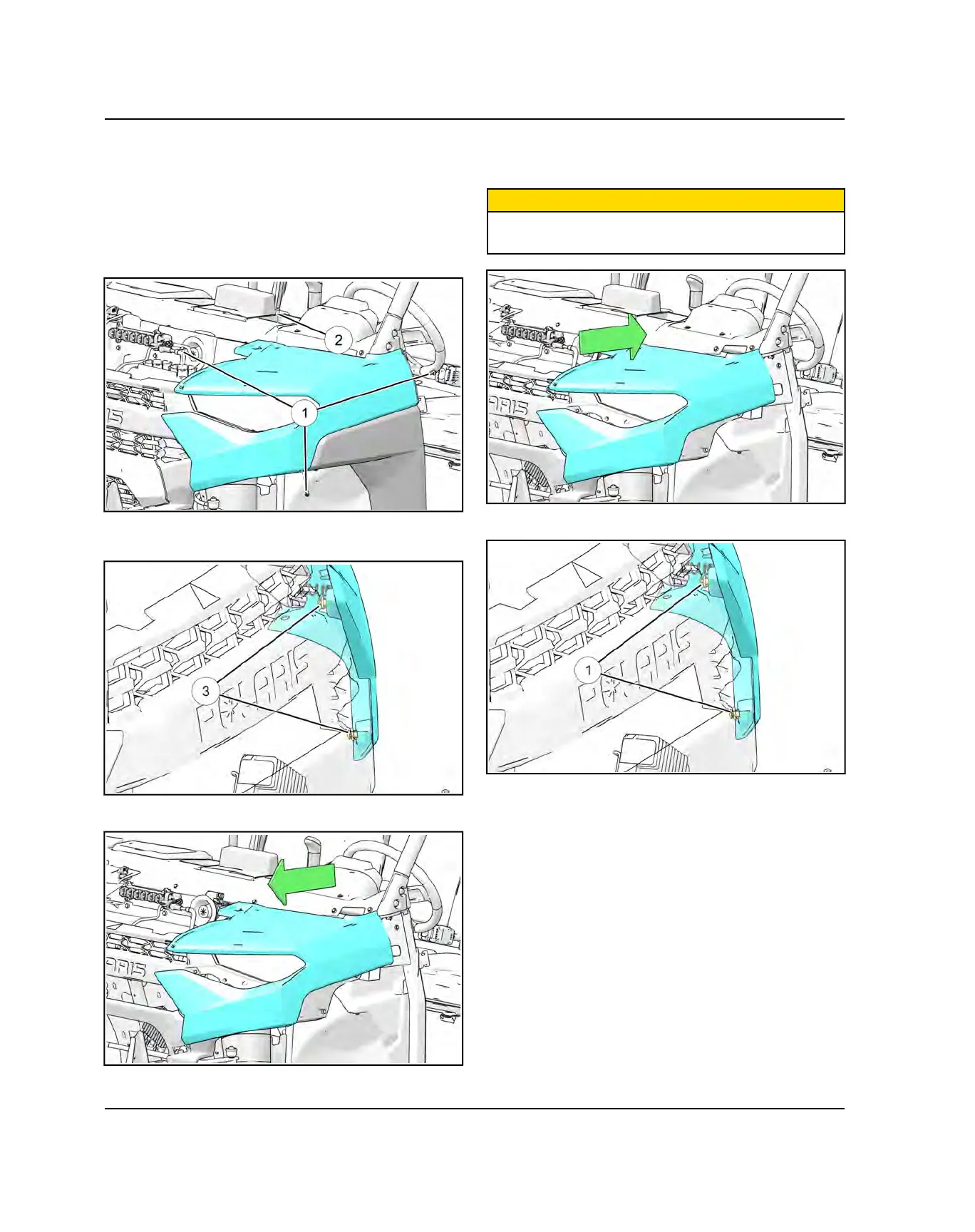

FRONT FENDER SERVICE
UPPER FENDER REMOVAL
1. Remove the hood by turning each 1/4 turn fastener
90 degrees to unlock the hood. Lift the hood straight
up and out.
2. Remove the three push rivets
q
and the T-30 torx
fastener
w
.
3. Remove the two push rivets
e
behind the front
fascia.
4. Pull upper fender straight out as shown.
UPPER FENDER INSTALLATION
1. Install the fender straight on as shown.
CAUTION
Ensure all alignment clips on the back of the fender are
properly inserted or damage may occur to upper fender.
2. Install the two push rivets
q
behind the front fascia.
BODY / FRAME
