Polaris RANGER XP 1000 2018 - Lower Fender Service

10
9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
10.27
3. Install the three push rivets
e
. Install the T-30 torx
fastener
w
and torque to specification.
TORQUE
Front Fender Fasteners:
22 in lbs (3 Nm)
4. Install the hood by inserting into slots and locking
down with 1/4 turn fasteners.

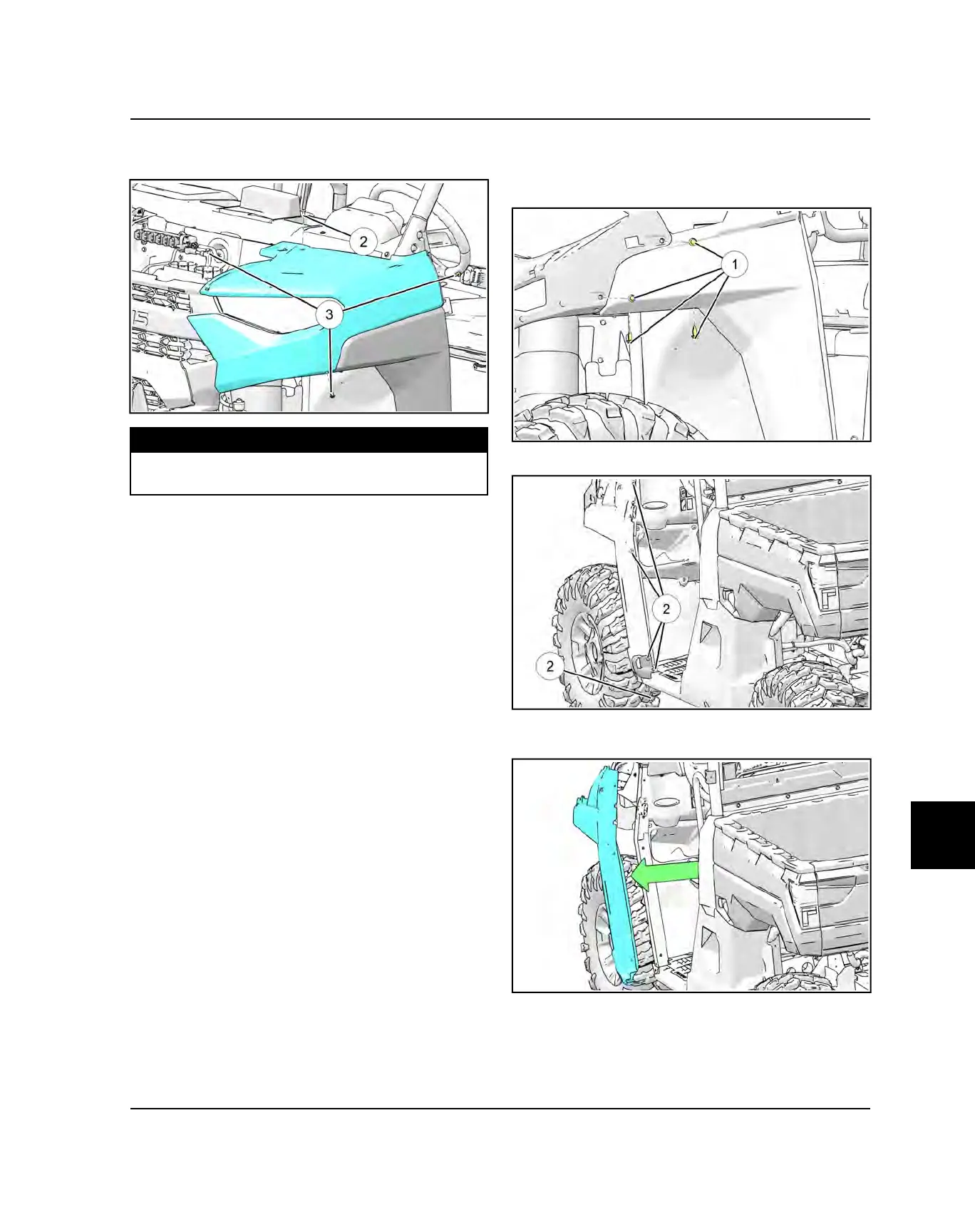

LOWER FENDER SERVICE
1. Remove the upper fender.
2. Remove the four push rivets
q
.
3. Remove the five T-40 torx fasteners
w
.
4. Pull the lower fender straight out from vehicle to
remove.
BODY / FRAME
