FRONT GEARCASE FLUID REPLACEMENT

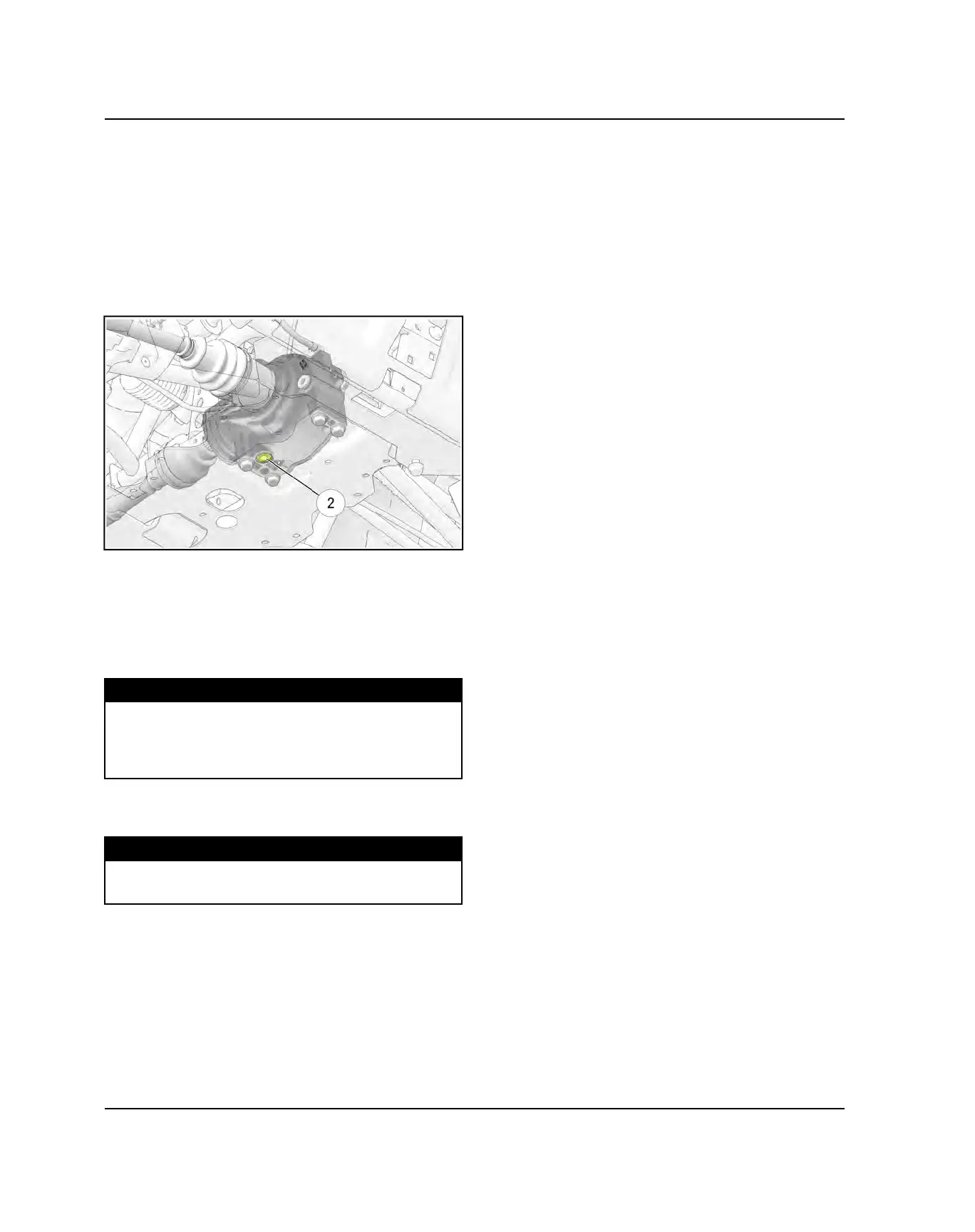

The drain plug is located on the bottom of the front
gearcase. Access the drain plug through the access hole
in the frame underneath the front gearcase.
1. Remove the fill plug.
2. Place a drain pan under the front gearcase drain
plug.
3. Remove the drain plug
w
and allow fluid to drain
completely.
4. Clean the drain plug magnetic surface.
5. Reinstall drain plug with a new O-ring and torque to
specification.
6. Add the recommended amount of fluid through the fill
hole. Maintain the fluid level even with the bottom
threads of the fill plug hole.
FLUID CAPACITY
Recommended Front Gearcase Fluid:
Polaris Demand Drive Fluid
(PN 2877922) (Quart)
Capacity:6.75 oz (200 mL)
7. Reinstall fill plug with a new O-ring and torque to
specification.
TORQUE
Front Gearcase Fill / Drain Plug:
8-10 lb-ft (11-14 Nm)
8. Check for leaks. Dispose of used fluid properly.
