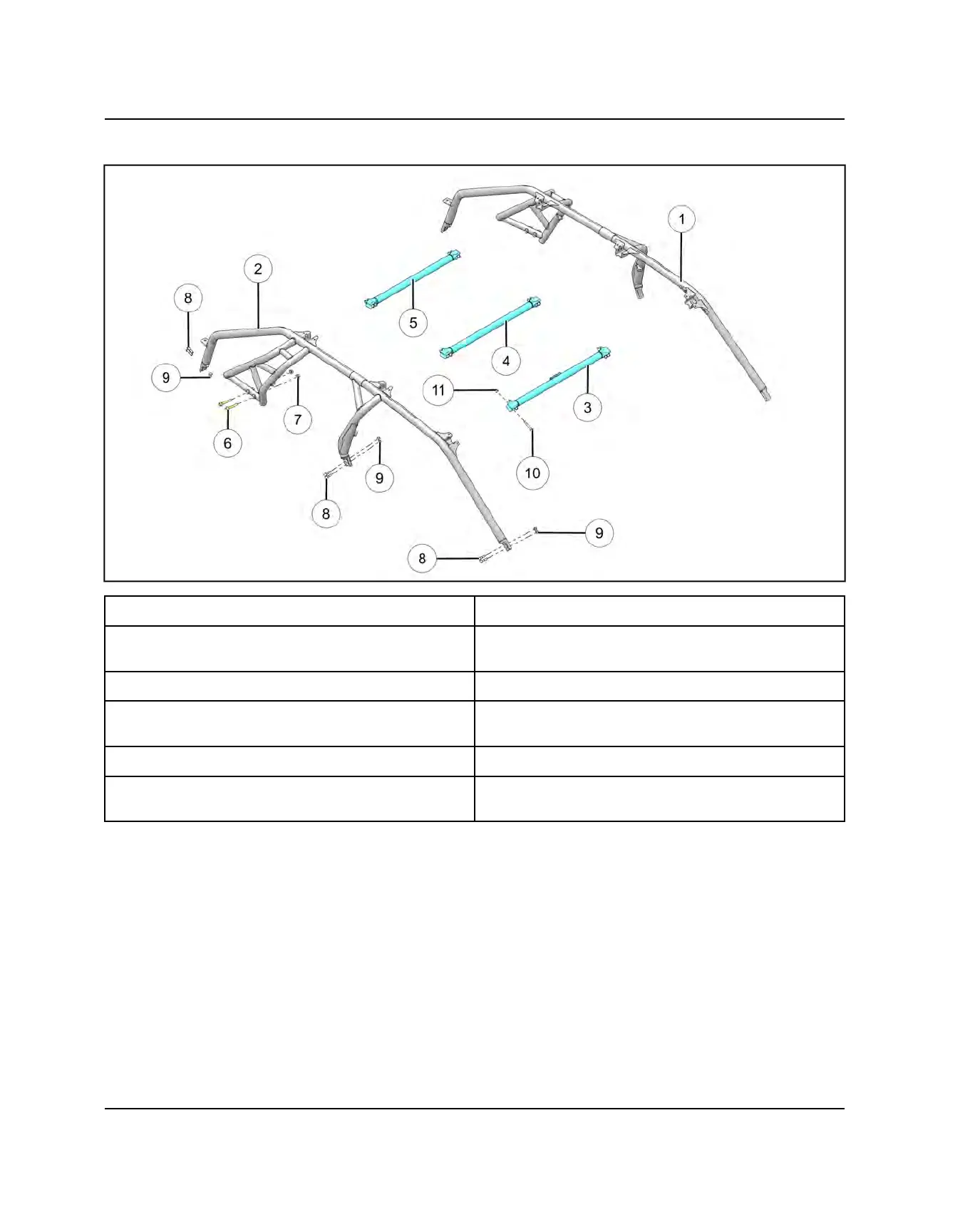

CAB FRAME ASSEMBLY (4-SEAT)
q
LH ROPS
u
Flanged Nyloc Nut - M12 x 1.5
w
RH ROPS
i
Fastener - M10 x 1.5 x 45 (10.9)
44 ft-lbs (60 Nm)
e
Front Cross Member
o
Nyloc Nut - M10 x 1.5
r
Middle Cross Member
a
Fastener - M10 x 1.5 x 75 (10.9)
44 ft-lbs (60 Nm)
t
Rear Cross Member
s
Nyloc Nut - M10 x 1.5
y
Fastener - M12 x 1.5 x 80 (10.9)
89 ft-lbs (120 Nm)
