Polaris RZR PRO XP 4 2021

12
9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.
12.37
FUSES / RELAYS

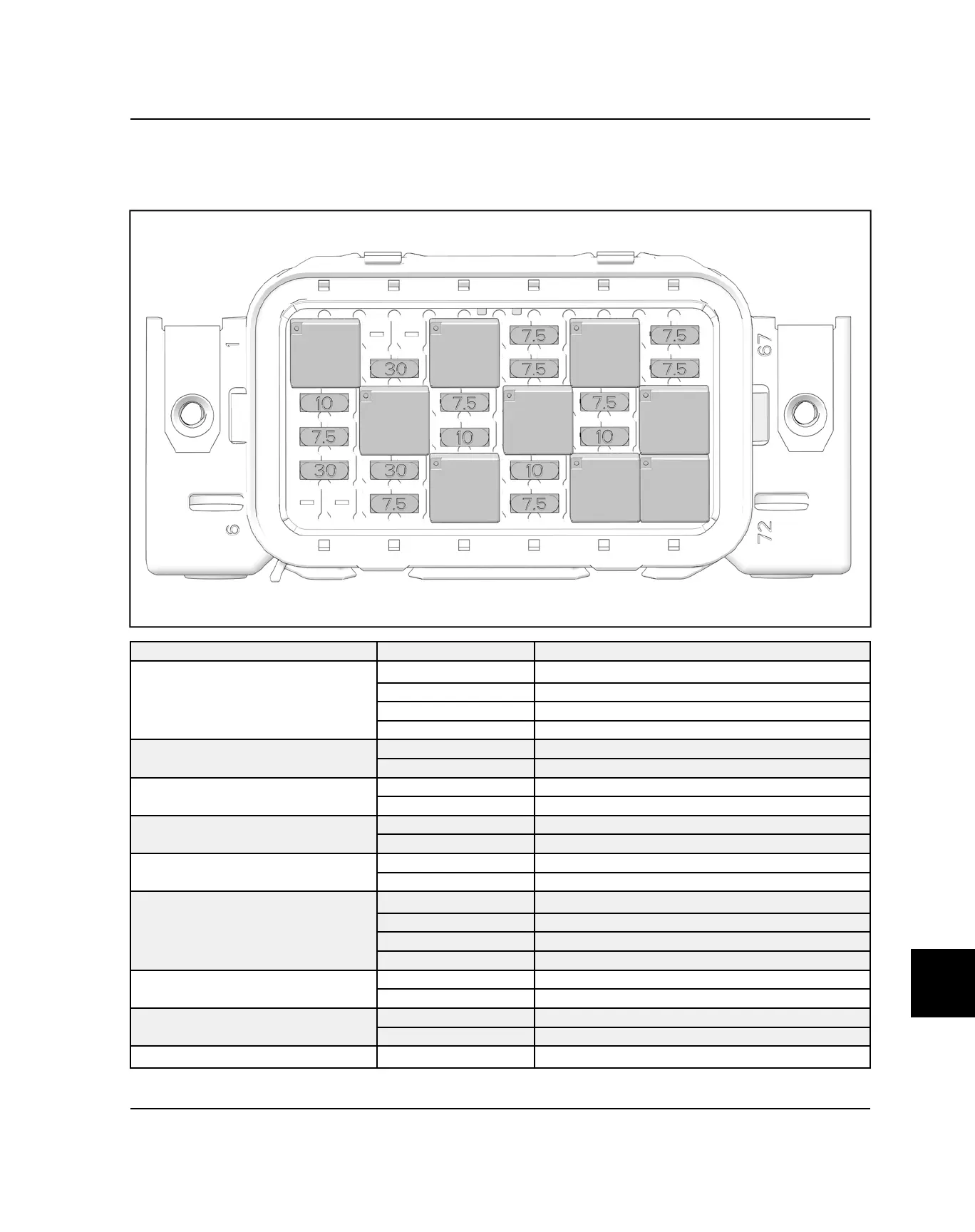

FUSE / RELAY BOX
The fuse box is located below the lower dash, to the left of the EPS unit.
CIRCUIT PIN FUNCTION
Start Relay
1
Coil High
2 Power In
7 Power Out
8 Coil Low
Term Accy 10A Fuse
3 Power In
9 Power Out
Instr Accy 7.5A Fuse
4 Power In
10 Power Out
Spare 30A Fuse
5 Power In
11 Power Out
Fan 30A Fuse
14 Power In
20 Power Out
Accy Relay
15
Coil High
16 Power In
21 Power Out
22 Coil Low
Key 7.5A Fuse
13 Power In
19 Power Out
Fan 30A Fuse
14 Power In
20 Power Out
Accy Relay
15
Coil High
ELECTRICAL
