CLUTCH
6.26

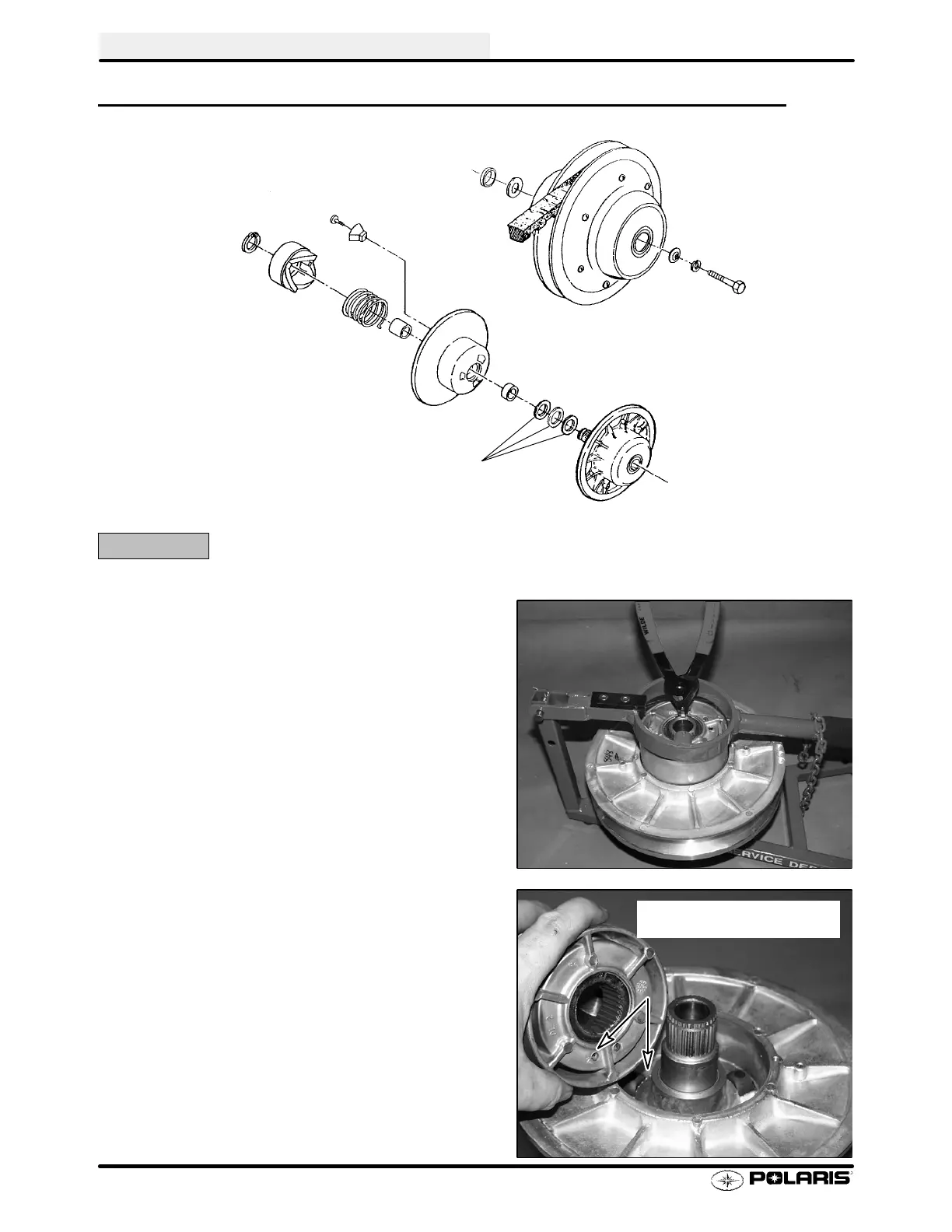

DRIVEN CLUTCH DISASSEMBLY/INSPECTION (NON EBS)
Used to adjust
belt tension. One must
always be installed.
CAUTION:
Wear eye protection when removing snap ring to prevent serious personal injury.
1. Apply and hold downward pressure on the helix, or
placedrivenclutchincompressortoolPN8700220.
2. Remove snap ring retainer.
3. Note location of spring and remove helix.
4. Notelocationofspringinthemoveablesheave,and
remove the spring.
Note hole location of spring
in helix and sheave
