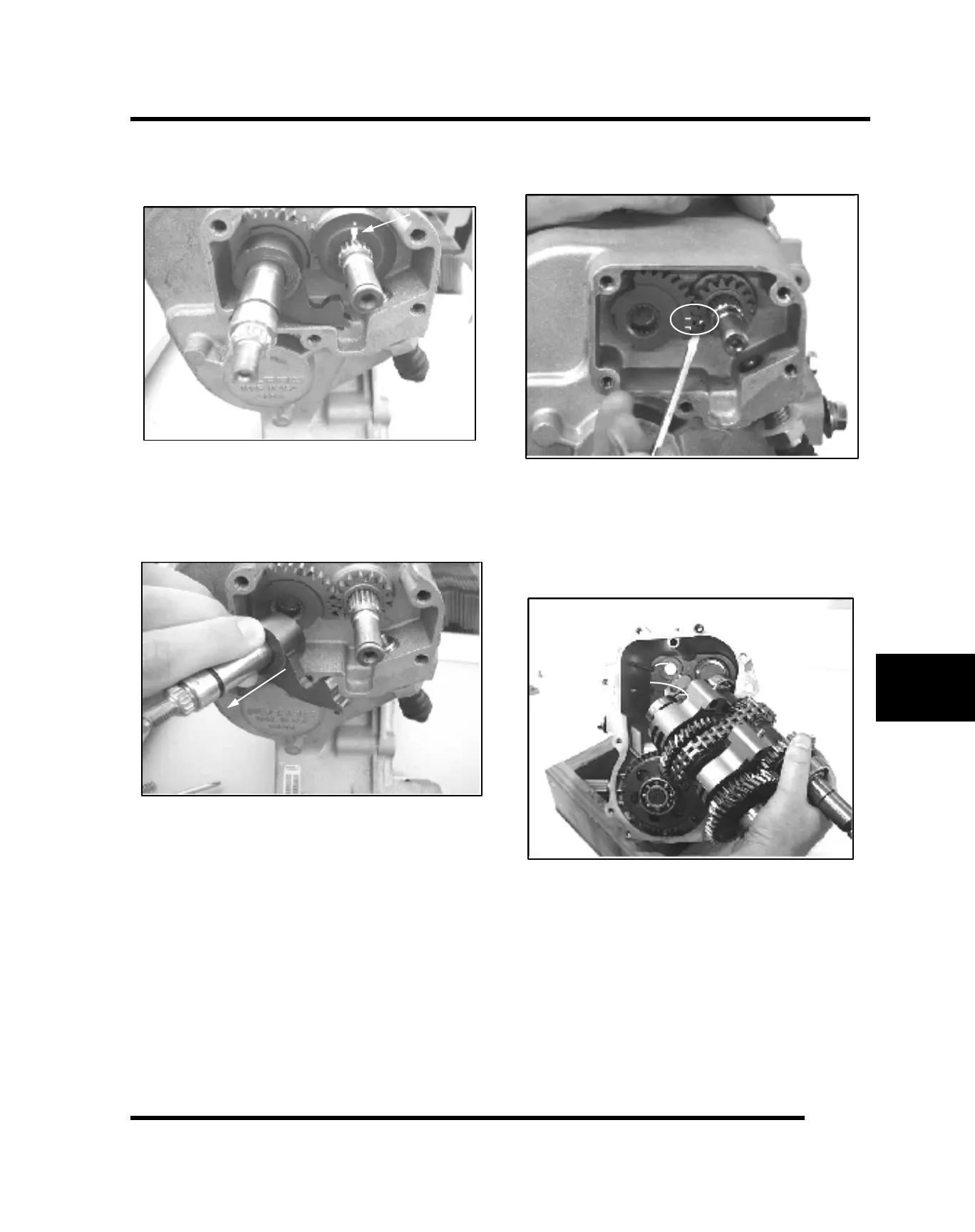

6. Mark the shift lockout disc, this will indicate which
side of the disc faces outward during assembly.
Remove the shift lockout disc.
NOTE: It may be helpful to place a mark just
above the keyed spline. Note the raised edge on
the detent gear for reassembly.
7. Remove the shift shaft and detent lever.
8. Note and mark the timing marks on the shift gears.
Remove the shift gears from the case.
NOTE: You may have to tap the shift drum from
the backside of the case to aid in removal.
9. Remove the upper gear cluster and shift forks. You
may need to move the assembly back and forth to
aid in removal.
TRANSMISSION
