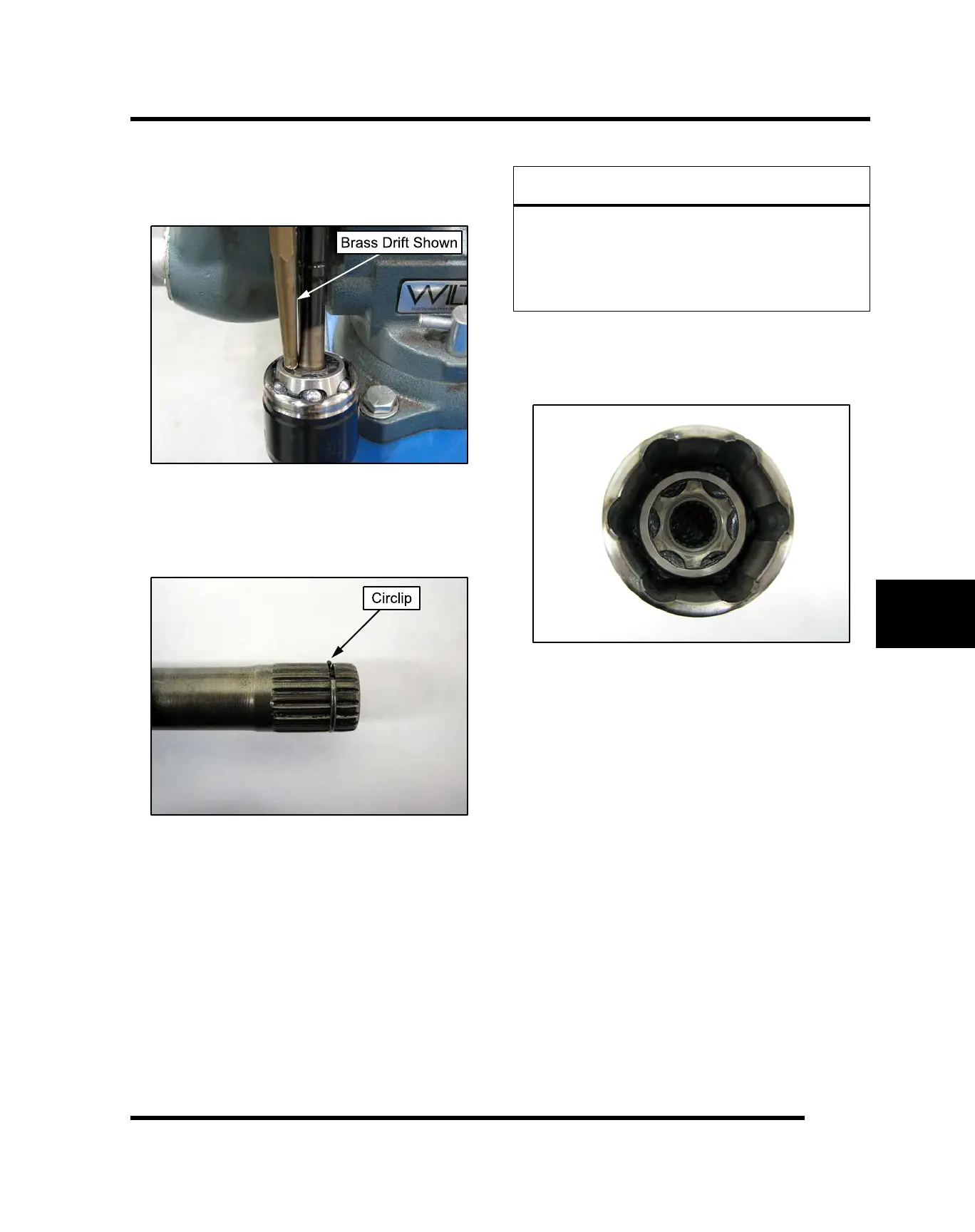

5. Using a soft-faced hammer, or brass drift, strike the
inner race of the joint to drive the joint off the drive
shaft. Be sure to tap evenly around the joint to avoid
binding.
IMPORTANT: Tap on inner race only!
6. Make sure the circlip is still on the shaft and not left
in the joint.
7. Remove the boot from the shaft.
CAUTION
Complete disassembly of the plunging joint is NOT
recommended. The internal components are a
precision fit and develop their own characteristic wear
patterns. Intermixing the internal components could
result in looseness, binding, and/or premature failure of
the joint.
NOTE: If the grease in the joint is obviously
contaminated with water and/or dirt, the joint
should be replaced.
8. Thoroughly clean the joint with an appropriate
solvent and dry the joint to prevent any residual
solvent from being left in the joint upon reassembly.
9. Visually inspect the joint for damage. Replace if
needed.
10. Clean the splines on the end of the shaft and apply a
light coat of grease prior to reassembly.
11. Slide the small boot clamp and boot (small end first)
onto the drive shaft and position the boot in its
groove machined in the shaft.
12. Install a NEW circlip on the end of the shaft.
