PC/VGA IN
VHF/UHF IN
6
5
7
34 2
8
1 AC IN / Power Switch
Connects the AC power cord to this socket./ Make sure
that this switch is in the ON position (Red LED light will
show on the bottom centre of the TV).
2 AV1
SCART
Connect to external equipment with scart socket. This
scart input allows audio and CVBS/YC/RGB+CVBS.
RGB,S-VIDEO from an external devise to be shown on
your TV.
3 AV2
S-VIDEO/AUDIO
(L/R)
Connects to the S- VIDEO output sockets and Audio
output sockets on your video equipment.
4 AV3
VIDEO/AUDIO(L/R)
Connects to the composite A/V output sockets on your
video equipment.
5 AV4
Y, Pb, Pr /AUDIO(L/R)
Connects to the component (Y, Pb, Pr) video sockets
and audio (L/R) sockets of your DVD player, HDTV, or
video equipment.
6 AV5
PC/VGA IN/PC AUDIO IN
Connects to a PC or other devices with a VGA interface.
7 AV6
HDMI IN
Connects to devices with a HDMI interface.
8 DIGITAL OUT
Connects to digital out socket on external digital
audioequipment.
9 VHF/UHF IN
Connects RF input from VHF/UHF antenna or cable to receive high/standard
de nition television.
ITEM DESCRIPTION
1
9
10
Chapter 1 Introducing the LCD TV

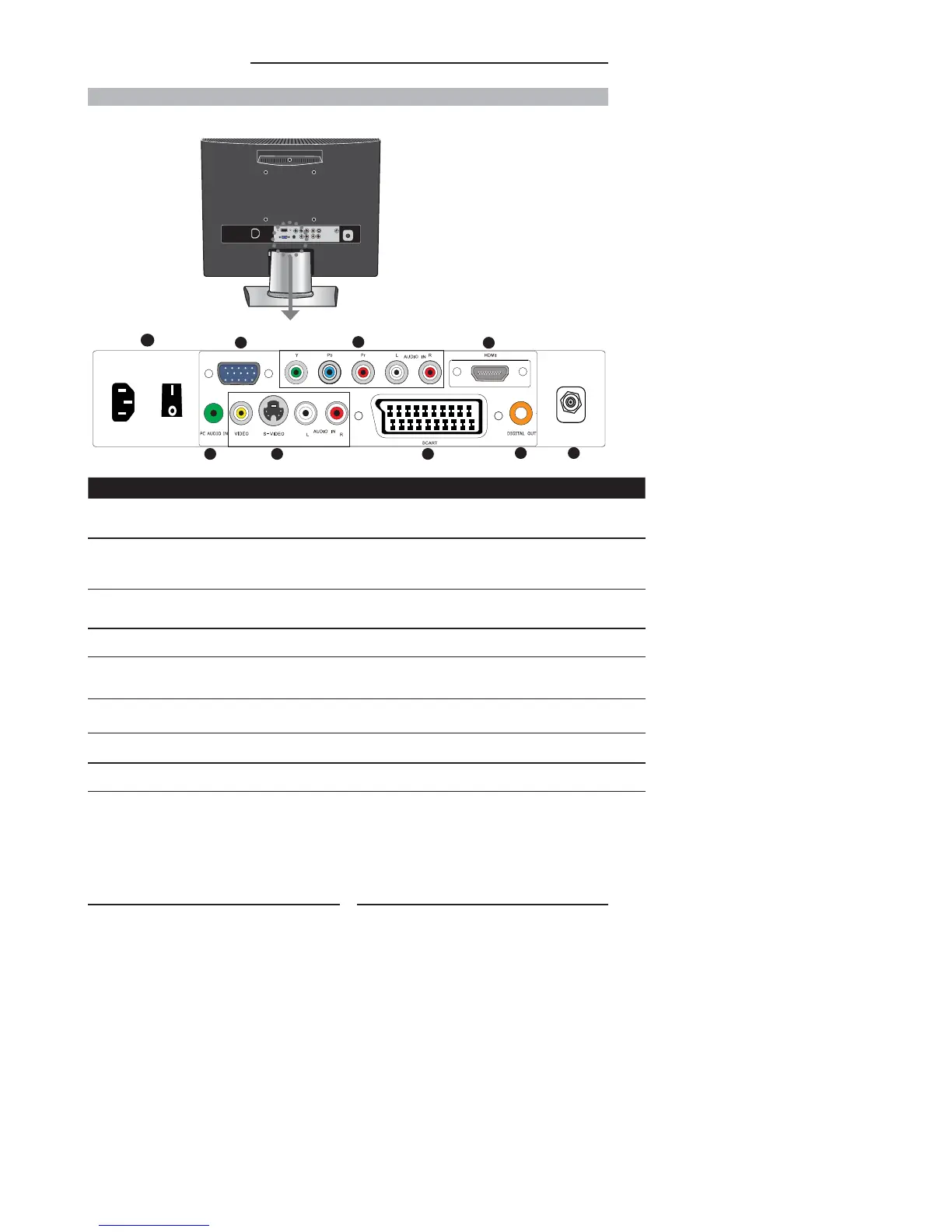

Rear View and Jacks
