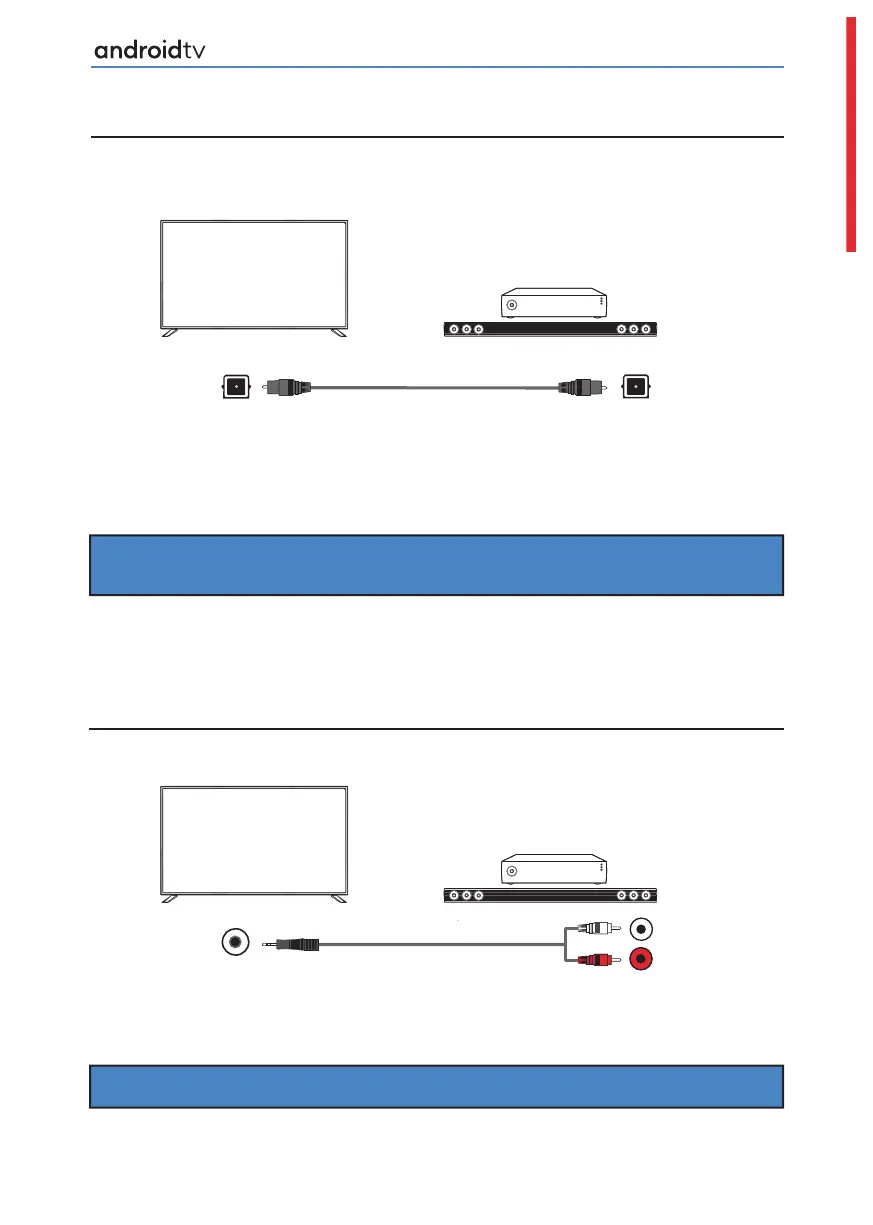

Digital Optical Cable
Connecting your television and audio system with a digital optical cable.
Connect to the audio system digital optical input terminal.
(A)
(B)
Digital Audio Out
Optical
Digital Audio In
Optical
(A)
(B)
AV Receiver or Soundbar
Audio Optical cable (not supplied)
If there is no output on the digital optical output, ensure that the digital output is set to PCM.
set Settings > Device Preferences > Sound > Digital Output to PCM.
The digital optical output is always present whatever source is selected.
RCA Analogue Audio Cable
Connect to the audio system’s audio input terminal.
(A)
L
R
Audio In L/R
Earphone
output
(B)
(A)
(B)
AV Receiver or Soundbar
Audio cable (not supplied)*
Getting Started
Note: The output audio level is dependent upon the headphone level. The volume level on the
connected audio system must be turned up.
Note: When connected via the digital optical output, it is necessary to turn off the television’s internal
speakers to prevent any echo effects. To do this go to Speakers >- External Audio System and
turn this on. This will disable the television’s internal speakers.
