Quick Start Guide
More
Detail for
Connecting Your
LCD TV to A/V Devices
Widescreen LCD Television
A/V Devices include:
• VCRs • DVD players • Game consoles
• Cable, satellite, or set-top boxes
* Your A/V devices may not have all of
the following connections.
CONTENTS
BEST

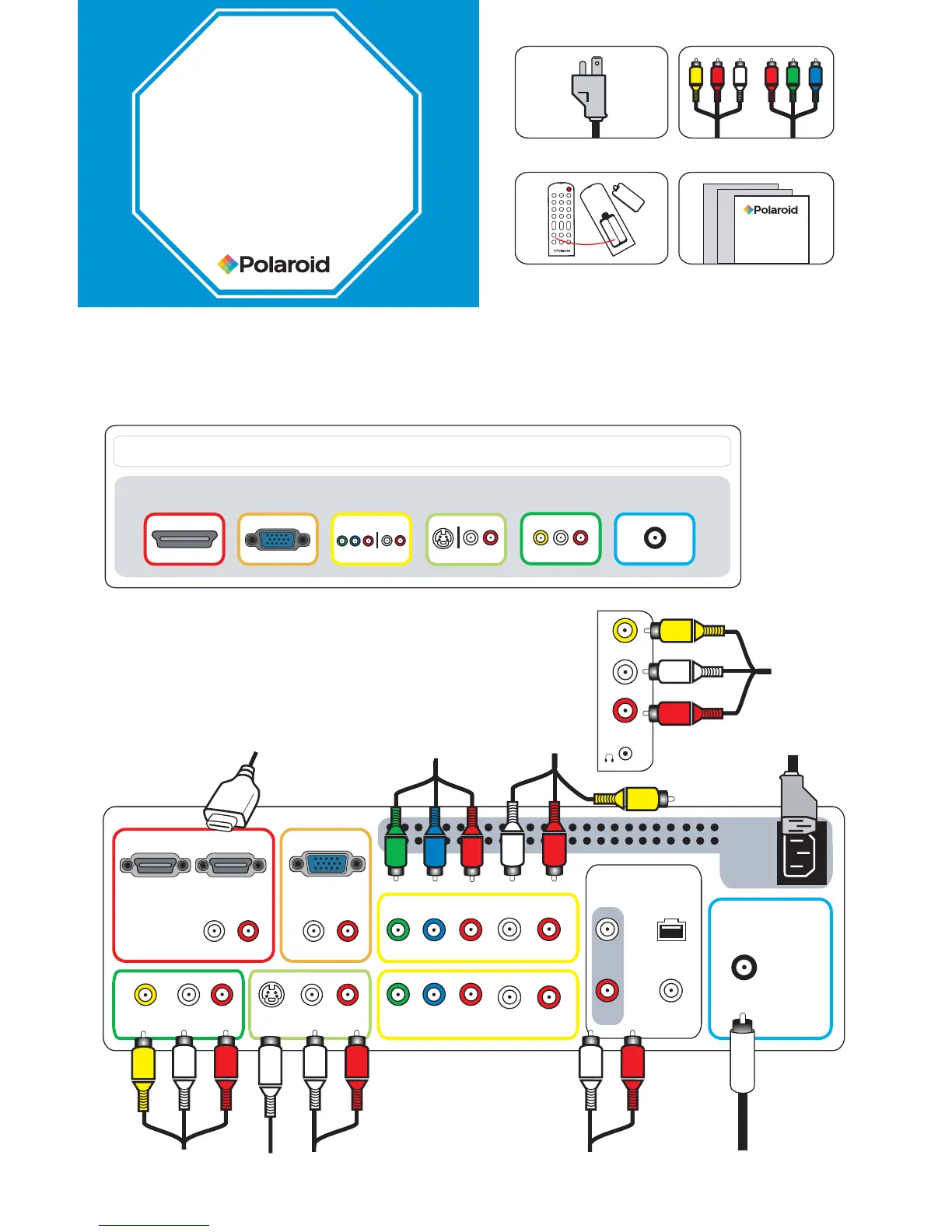

CONNECTION MAP
Rear of TV
Side of TV
THE BEST CONNECTION
We highly recommend you use Digital High Definition (digital HD) whenever possible. Make sure your external A/V devices are set to receive an
HDMI signal, when trying to use this connection. Please keep in mind however that not all components are capable of this type of connection.
For the best viewing experience, connect your TV to an HD digital cable/ satellite box, HD DVD player and/or other HD A/V device using the HDMI connection.
Make sure your external A/V devices are set to output an HDMI signal. Consult your A/V device’s User’s Manual for instructions on how to output an HDMI signal.
If you need assistance…Polaroid can help!
Use the provided Worldwide Support Contact sheet to call our helpful technical support center for your area or visit www.polaroid.com.
"Polaroid" and "Polaroid and Pixel" are trademarks of Polaroid Corporation, Waltham, MA, USA. Product features, specifications,
and appearances are subject to change without notice.
GOOD
BASIC
HDMI
VGA / PC ONLY COMPONENT
COMPONENT
CABLES
COMPOSITE
CABLES
POWER CORD
REMOTE CONTROL/
2 AAA BATTERIES
DOCUMENTS
S-VIDEO COMPOSITE
RF CABLE /
ANTENNA
+
-
+
-
L RVIDEO
S-VIDEO IN
S-VIDEO
VIDEO 2 IN
AUDIO
AUDIO
HDMI 2 INHDMI 1 IN VGA IN
L R
AUDIO
L R
L R
AUDIO
L R
AUDIO
STEREO DIGITAL
OPTICAL
COAXIAL
AUDIO OUT
R
L
VIDEO1 IN
VIDEO
L R
R
L
YPbPr1 IN
YPbPr2 IN
TV
CABLE / AIR
VHF / UHF IN
To Next Page
