Polk Audio DB 402 - Wiring Diagrams; Figure 1 Basic Coaxial Connection; Figure 2 Basic Component Connection

7

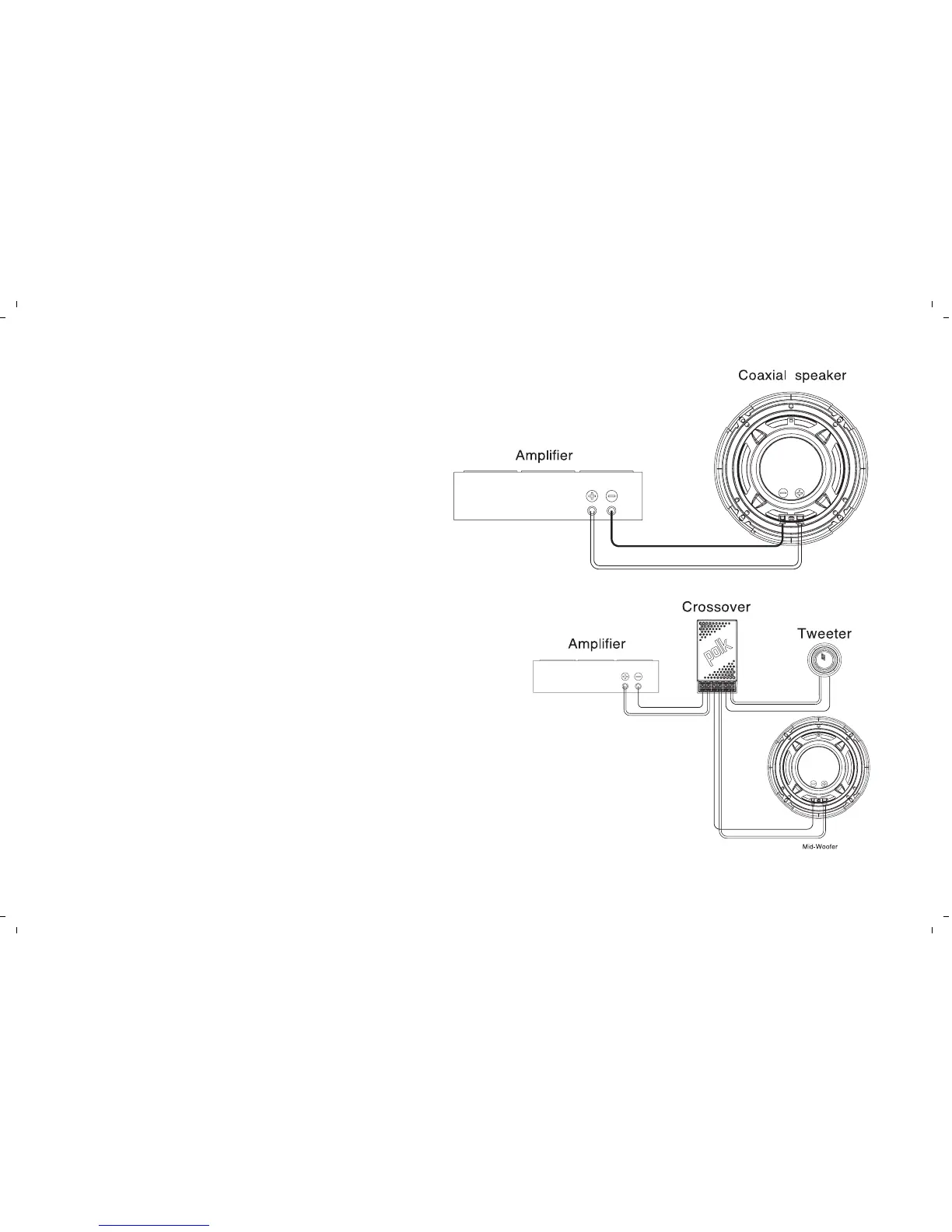

Wiring Diagrams
Figure 1
Basic coaxial connection
Figura 1
Conexión coaxial básica
Figure 1
Connexion d’un hautparleur coaxial
Abbildung 1
Einfache koaxialverbindung
Figura 1
Connessione coassiale di base
Figure 2
Basic component connection installing DB 5252, DB 6502
Figura 2
Conexión de componentes básicos instalación de DB 5252, DB 6502
Figure 2
Connexion de composant installation: DB 5252, DB 6502
Abbildung 2
Einfache komponentenverbindung installation von DB 5252, DB 6502
Figura 2
Connessione componenti di base installazione del DB 5252, DB 6502
Figure 1
Figure 2
