GP 44
Spare Parts - 57 -

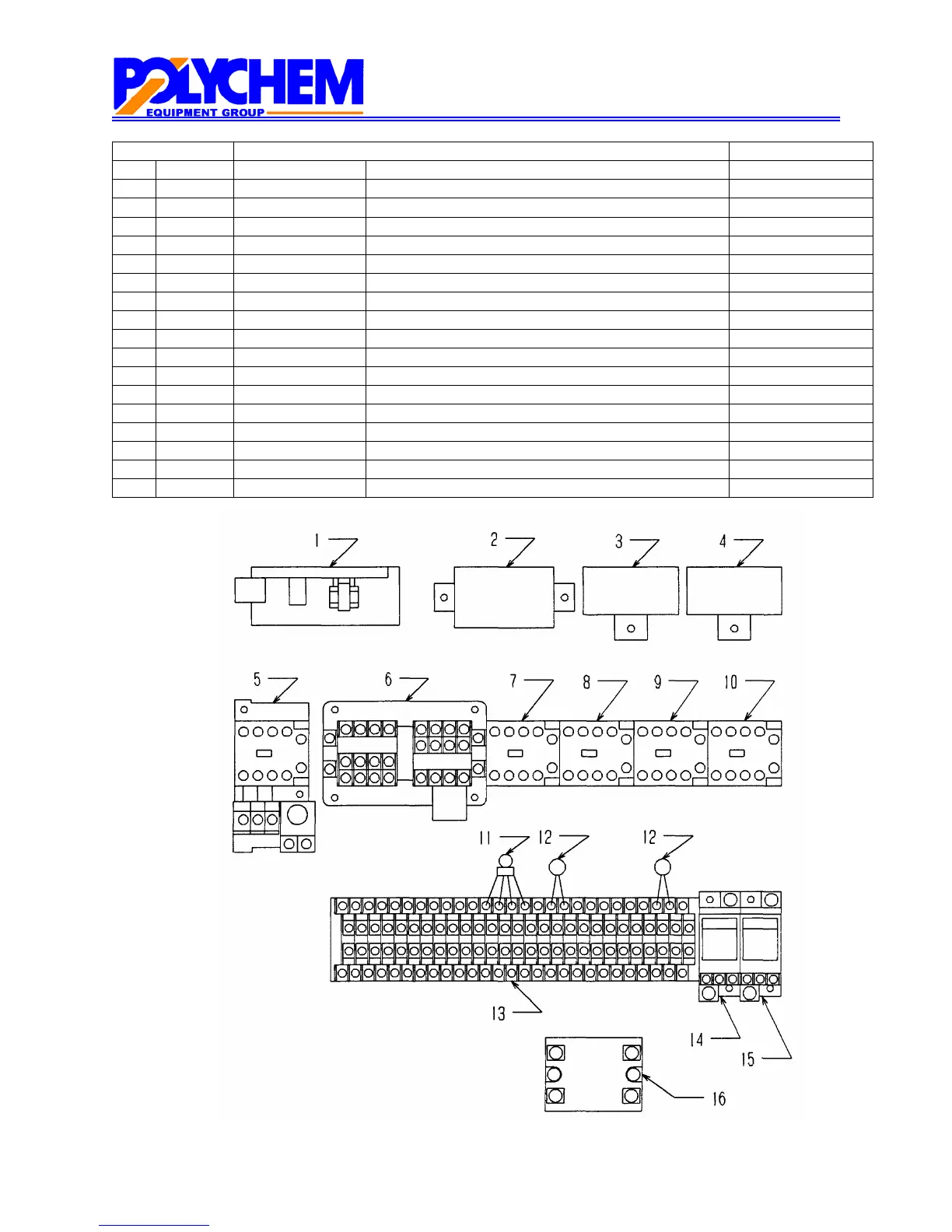

PARTS LIST RELAY BOX (GP44) FIG. RB-008
Key Part-Nr Ladder-Diagram Part-Name Form
1 E24031 Power Supply Power Supply S82J-0124 10W
2 E30015 Capacitor 35µF SH-P2
3 E30028 Capacitor 25µF SH-M
4 E30012 Capacitor 30µF SH-M
5 E15034 R20 Relay (M5 Motor) Strap Pull SJ-OWG 1.4A
6 E15042 R3, R2 Relay (M2 Motor) Strap Feed Primary Tension SJ-06GRM
7 E15040 R45 Relay (Strap Feed) SOL4 SJ-OG
8 E15040 R38 Relay (M1 Motor Brake) SJ-OG
9 E15040 R23 Relay (Auto lead) SOL7 SJ-OG
10 E15040 MS1 Relay (Main Control) SJ-OG
11 E30017 Rectifier Rectifier unit (S2VB60 and ZNR10K221)
12 E09010 Surge Absorber ERV14D221
13 E18131 Terminal Block CTW-15S2
14 E09036 OLM1 Circuit Breaker BAC111305
15 E09035 OLM2 Circuit Breaker BAC111705
16 E15010 R1 Solid State Relay (M1 Motor) Cam Shaft AQR256
