GP44 Semi-Automatic Strapping Machine
OPERATION -11-

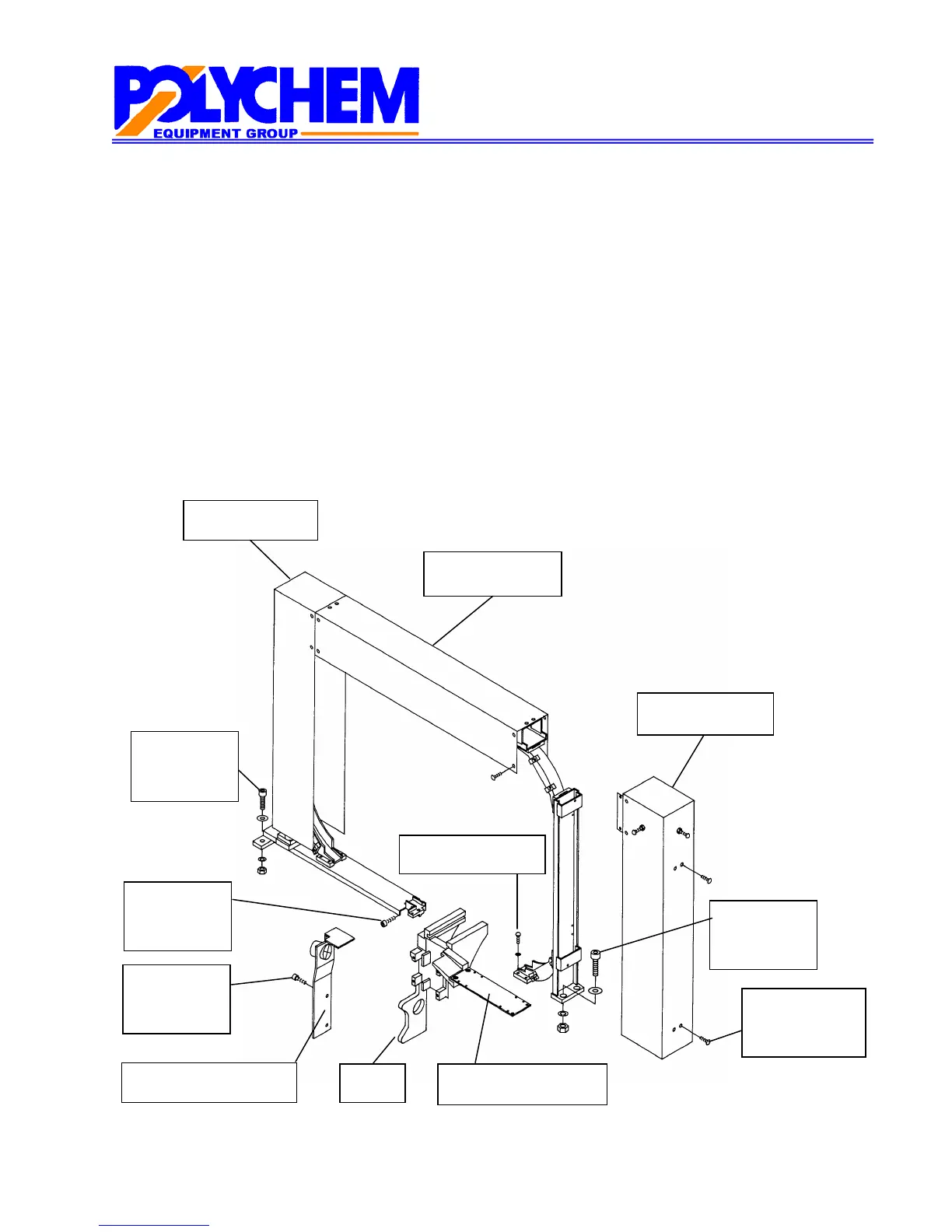

PROCEDURE OF ASSEMBLING ARCH UNIT
1.Remove Arch Cover D.
2.Unscrew cap screws and remove the top table support. (Cap screw is M6×15)
3.Mount the arch unit on the frame and drive cap screw softly. (Cap screw is M8×25 and M10×35)
4.Fix the arch unit firmly on Head by cap screws. (Cap screw is M6×35)
5. Fix the arch unit firmly on the installed Bracket for E Rail by pan head screws.
6.Tighten cap screws driven softly in No3.
7.Install the top table support removed in No2 to head.
8.Fix Arch Cover D on the arch unit.
Arch Cover B
Arch Cover C
Arch Cover D
Arch Unit (23” wide)
Pan head screw
Cap screw
M6×15
Cap screw
M8×25
Cap screw
M10×35
Top Table support
Head
Bracket for E Rail
Cap screw
M6×35
Button bolt
M5×8
To Next Page
