GP44 Semi-Automatic Strapping Machine
OPERATION -18-
HOW TO LOAD STRAP
1. Make sure strap is clear from photo eye S3.
2. Turn Auto Load Switch to the left.

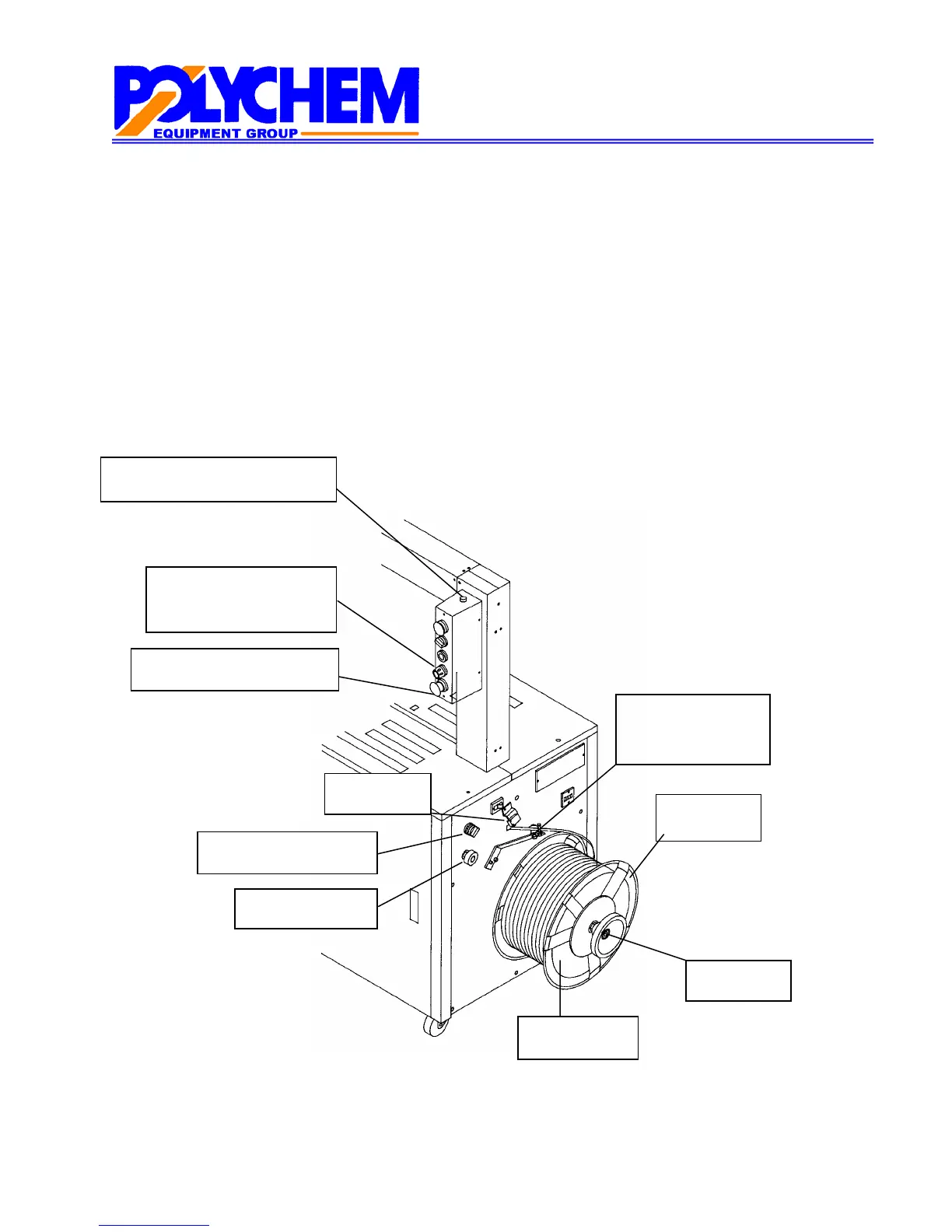

3. Load a coil on the reel as per drawing so that a tip of strap may be pulled and then
Reel Cover and Reel Nut may be installed and Reel Nut may be tightened firmly.
4. Thread strap through the guide roller and insert the strap into the entrance until
the strap reaches the feed roller. S3 will sense the strap.
5. Turn Auto Load Switch to the right so that the strap feeds into the arch completely.
NOTE: Strap Feed Complete Light glows green when strap has successfully fed around the arch.
ADJUSTING OF STRAP TENSION
Reel Coil
Reel Cover
Reel Nut
Auto Load Switch
Tension Knob
Entrance
Emergency Stop Switch
Circuit Power Switch
(With Light)
Strap Feed Complete Light
Strap Present
Photo Eye (S3)
To Next Page
