GP 44
Spare Parts - 21 -
PART LIST

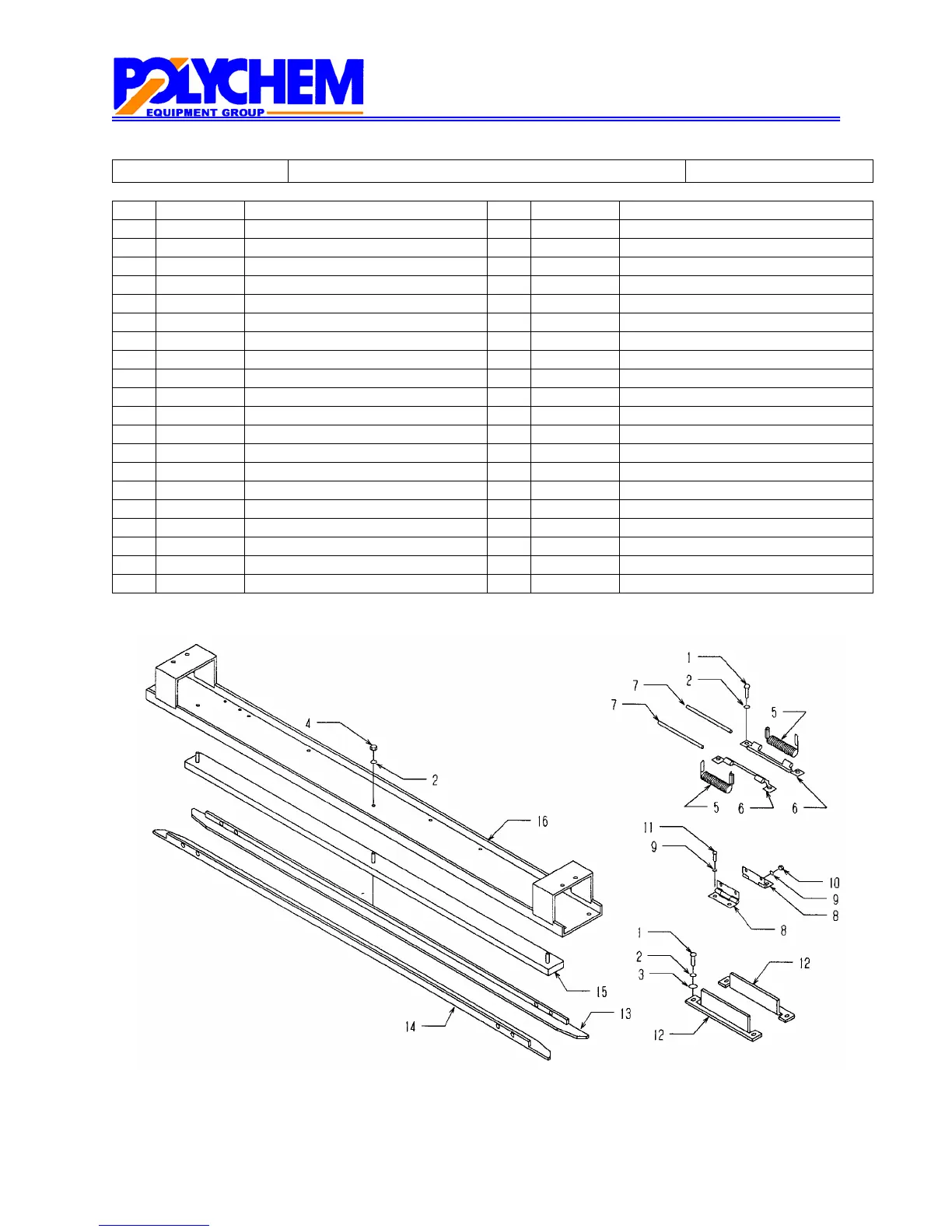

ARCH C FIG. A-12P
Key Part-No Description Key Part-No Description
1 B00108 Pan Head Screw M4×8 14 M09311 Arch Front Hinge 600C
2 B27100 Spring Washer M4 14 M09312 Arch Front Hinge 800C
3 B26100 Flat Washer M4 14 M09313 Arch Front Hinge 1000C
4 B17100 Nut M4 14 M09314 Arch Front Hinge 1200C
5 A00299 Spring 14 M09315 Arch Front Hinge 1400C
6 P15059 Spring Base 14 M09316 Arch Front Hinge 1600C
7 L12023 Spring Pin
8 P39001 Hinge 2 15 M09263 Arch Rail 600C
9 B27000 Spring Washer M3 15 M09264 Arch Rail 800C
10 B17000 Nut M3 15 M09265 Arch Rail 1000C
11 B00006 Pan Head Screw M3×6 15 M09266 Arch Rail 1200C
12 P00077 Stopper for Arch Hinge 15 M09267 Arch Rail 1400C
15 M09268 Arch Rail 1600C
13 M09317 Arch Rear Hinge 600C
13 M09318 Arch Rear Hinge 800C 16 A00151 Arch Rail Base 600C
13 M09319 Arch Rear Hinge 1000C 16 A00155 Arch Rail Base 800C
13 M09320 Arch Rear Hinge 1200C 16 A00159 Arch Rail Base 1000C
13 M09321 Arch Rear Hinge 1400C 16 A00163 Arch Rail Base 1200C
13 M09322 Arch Rear Hinge 1600C 16 A00259 Arch Rail Base 1400C
16 A00260 Arch Rail Base 1600C
