GP 44
Spare Parts - 30 -
PART LIST

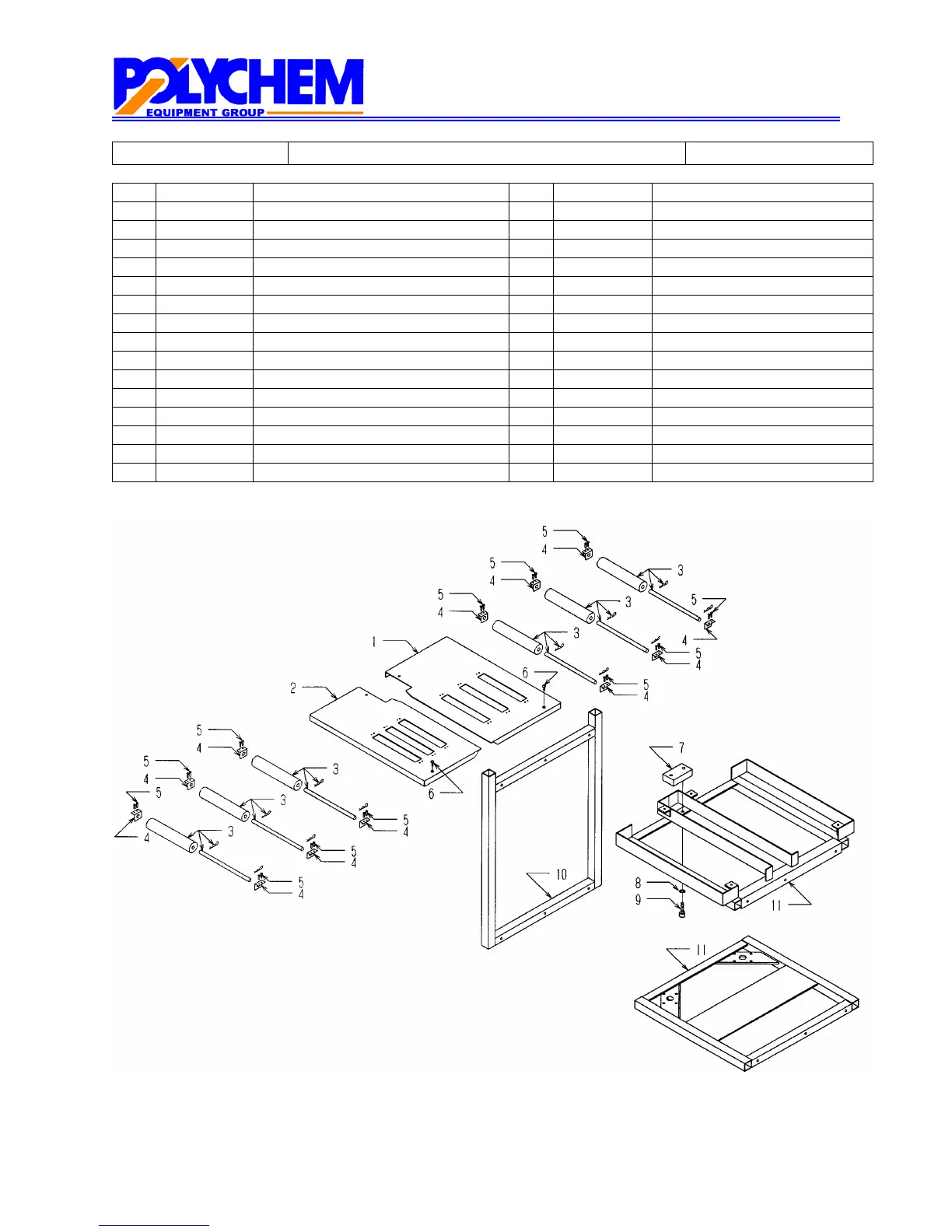

SUPPORT TABLE FIG. A-19-004
The different parts for strap size and the arch size.
Key Part-No Description Key Part-No Description
1 * * 1 P30495 Rear Support Table 1200
2 * * 1 P30358 Rear Support Table 1600
3 * * 2 P30494 Front Support Table 1200
4 P00145 Roller Bracket 2 P30357 Front Support Table 1600
5 B02108 Flat Head Screw M4×8 3 R08003 W200 Roller Assy.
6 B07208 Bolt M5×8 3 R08011 W600 Roller Assy.
7 M00399 Arch Rail Bracket 11 A03067 Frame 1200
8 B27500 Spring Washer M10 11 A03069 Frame 1600
9 B04515 Cap Screw M10×15
10 A03074 Frame
11 * *
12
13
14
15
To Next Page
