Remove all parts from the packaging box. Spread the Solar Heater Mat on a flat surface
without obstacles to the sky.
Insert the Elbow Fitting to the Water Inlet and
Water Outlet on the Mat. Tighten them with the
screw caps.
Insert each Transparent Hose to each Mat
Elbow Fitting.
Insert the 1.5” Hose Water Hoses to the
Valve Body. Tighten the Hose Clamps.
Turn off your Pump. Insert the Plug to the fittings
of the pool to stop water from coming out from the
pool.
Remove the 1.5” Hoses from the return fitting of
the pool.
Remove the 1.5” Water Hoses from the
water pump outlet.
Insert one 1.5” Water Hose of the Solar Heater Mat
to the water pump outlet. Tighten it with the Hose
Clamp. Use the Hose Adopter if the pump & pool
fittings are of 1.5” in diameter.
Insert another ripple-shaped Water Hose of the
Solar Heater Mat to the return fitting at the pool.
Tighten it with the Hose Clamp.
*The Hose Adepter is not needed if the 1.5”
fittings of your pool & pumps are of 1.5”
diameter.
The completed Solar Heater Mat setup after
installation.
Turn the Control Value handle 90º clockwise to
divert the water to the Solar Heater. Turn the
handle backward to use the pool.
Plug in the water pump to start pumping water into
the Solar Heater Mat after installation.
Should you encounter any problems, contact Customer Service at (888) 919-0070 from 8 AM to 5 PM Mon. thru Fri.
EST. Extended operating days and hours during peak season requirements.
OWNER′S MANUAL
Insert the other end each Tranparent Hose to
the Control Valve.
Tighten the Transparent Hose ends with cable
ties at the Elbow Fitting.
Tighten the Transparent Hose ends with cable
ties at the Control Value.
Insert the Hose Clamp and then the Hose Adapter
on each end of the 1.5” Hose.

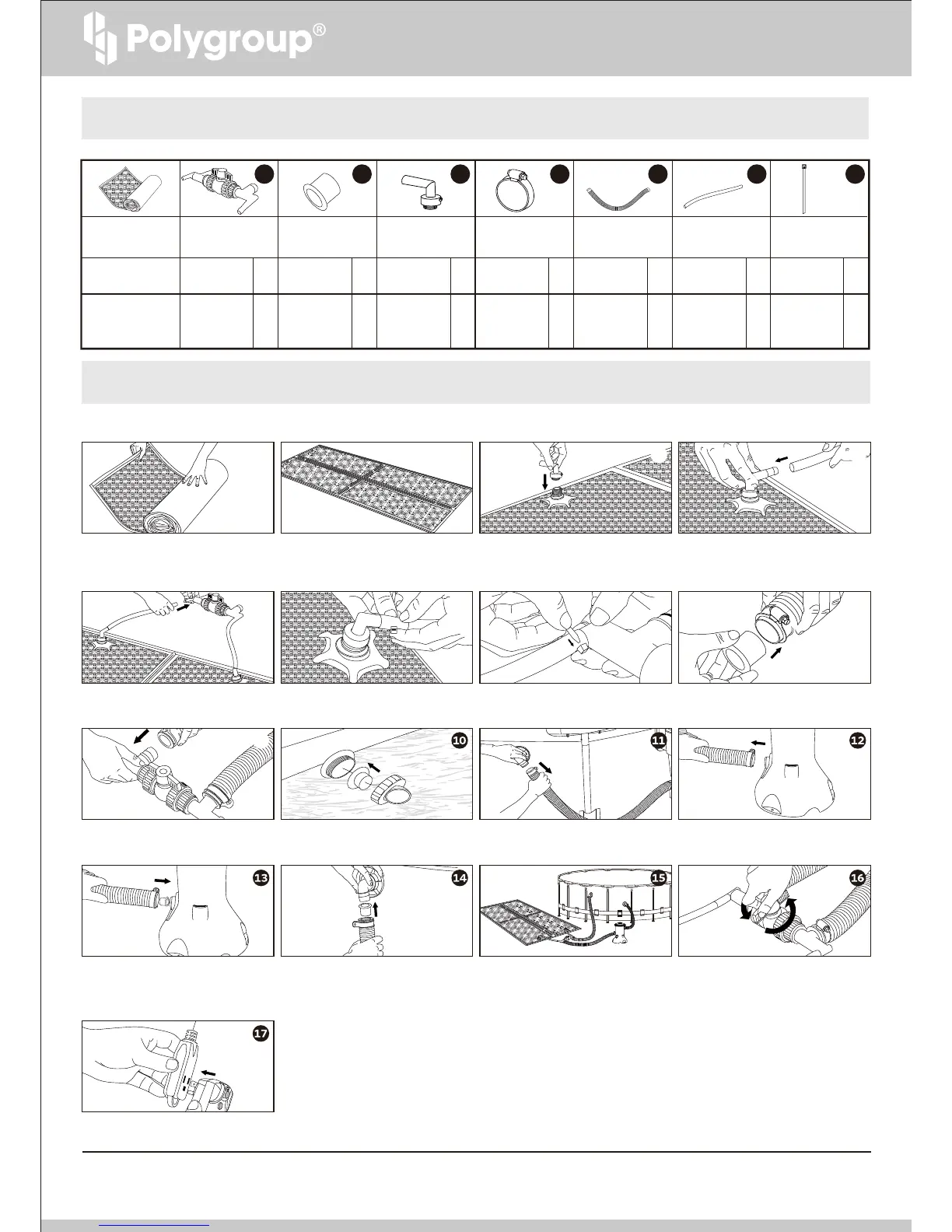

SETUP INSTRUCTIONS
Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts.
1 2 3 4 5 6
7
Pool Size
P5E004000099 P58PF5620P01P5E133000E01 P5E19500382A P5842504500A P58150054W01 P5E3141216C1 P5E044003BK3
Cable tie(4X250mm)
Part #Qty.
Qty.
Part #Qty.Part # Qty. Qty.Part # Part # Qty. Qty.Part # Part #
x1 x4
x2
x4 x2 x4x2
Solar
Heater Mat
Control Valve Hose Adapter Elbow Fitting Hose Clamp 1.5” Hose Transparent Hose
*
5 6 7 8
1 2
4
3
9
PARTS LIST
To Next Page
