6-69

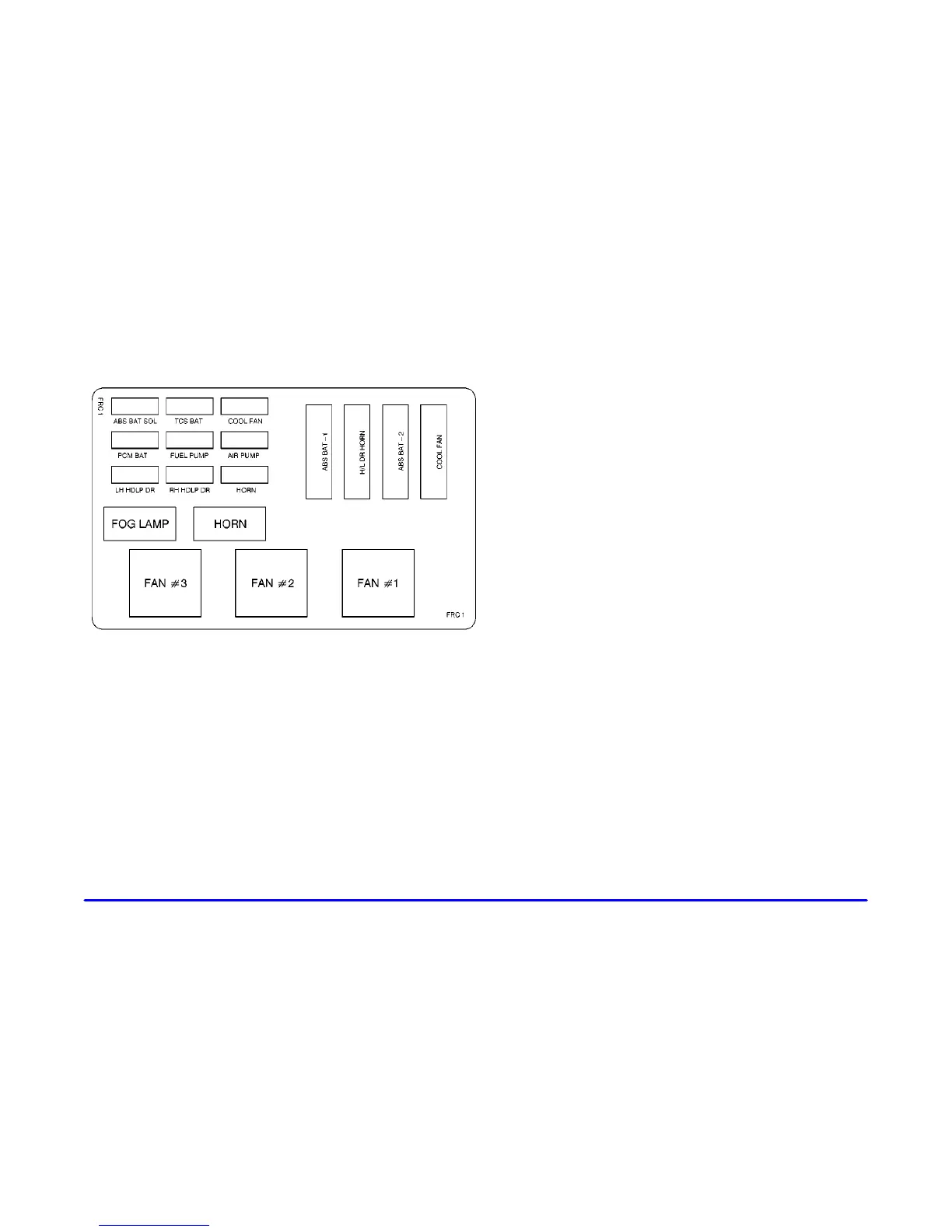

Underhood Electrical Center
Fuse and Relay Center 1
Fuse Usage
ABS BAT SOL Anti
-Lock Brake System
TCS BAT Traction Control System
COOL FAN Cooling Fan Control
Fuse Usage
PCM BAT Powertrain Control Module
(PCM)
FUEL PUMP Fuel Pump
AIR PUMP A.I.R. Pump Relay and
Bleed Valve
LH HDLP DR Left Headlamp Door Module
RH HDLP DR Right Headlamp Door Module
HORN Horn Relay
ABS BAT
-1 Anti-Lock Brake System Module
H/L DR HORN Horn and Headlamp Doors
ABS BAT
-2 Anti-Lock Brake and Traction
Control System
COOL FAN Cooling Fan Relays
Relay Description
FOG LAMP Fog Lamps
HORN Horn
FAN #3 Cooling Fans
FAN #2 Cooling Fans
FAN #1 Cooling Fans
To Next Page
