INSTALLATION
Ho CHLORINATORS must be installed by a qualied person (Pool Retailer, Pool Service
person or Pool Builder ).
Position the chlorinator power module at least 1m above ground and at least 2m
from the pool edge.

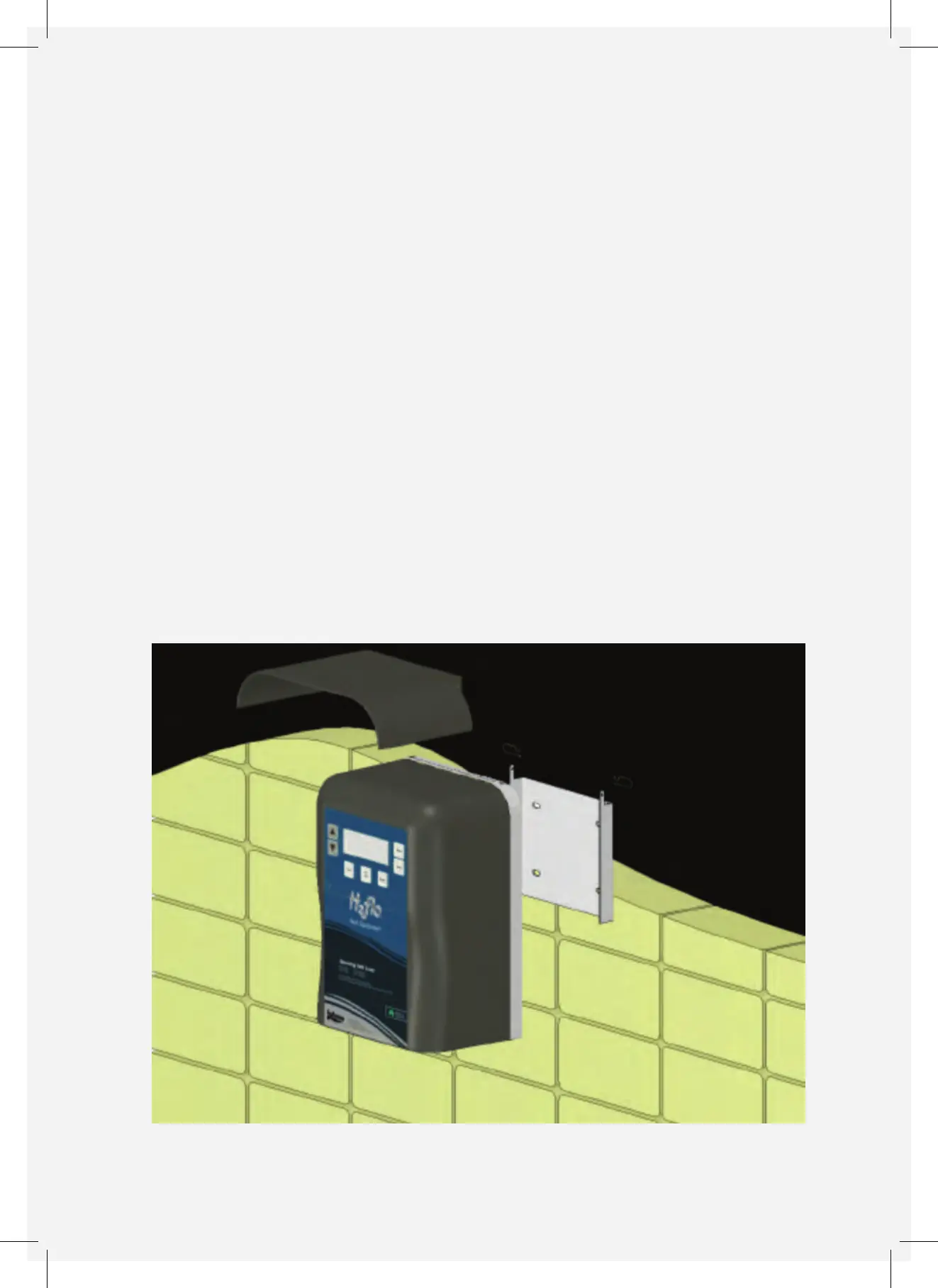

Mount the stainless steel bracket to a solid structure with the screws provided and t
the power module over the two raised pins on the bracket, secure with the 2
locking clips provided.
Protect the chlorinator module and cell housing from direct sunlight and rain where
possible for extended life.
Connect the mains plug from the chlorinator power pack into a RCD protected 240V
mains 10A outlet
Connect the cell cable connector into the connector on the bottom of the power pack
Connect the mains plug from the pump into the pump outlet on the bottom of
the chlorinator power pack.
4
