17

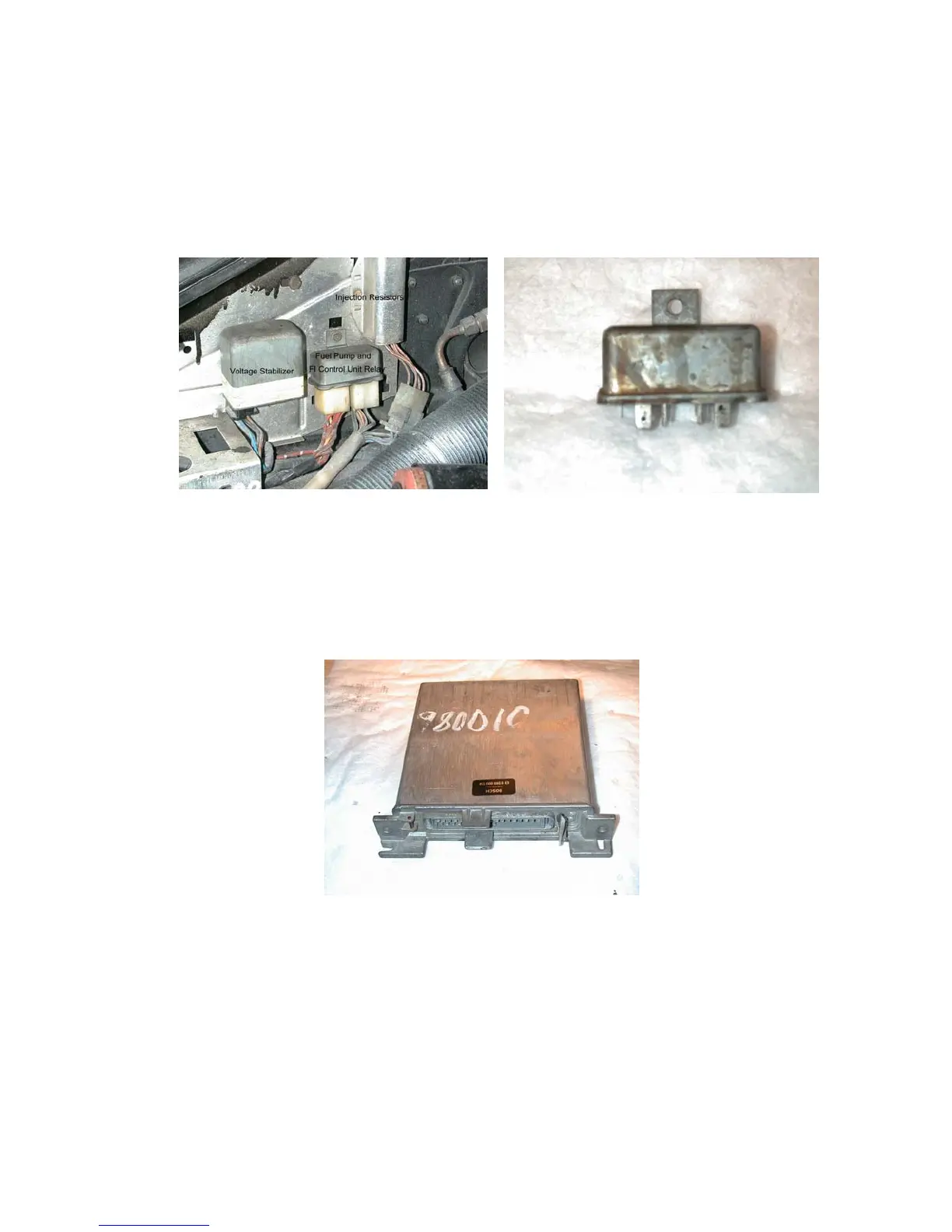

• Dual Relay – Located on the bulkhead of the driver’s side of the engine
compartment beside the relay plate cover. The voltage regulator and the
injection resistors are collocated with this component.
• Electronic Control Unit – Can be found on the bulkhead of the passenger
side of the engine compartment. Easily recognized by the large connector
attached to it. The wiring harness plug is removed for many of the tests
described in Section 5.0.
