Porsche Classic Radio Navigation System User Manual

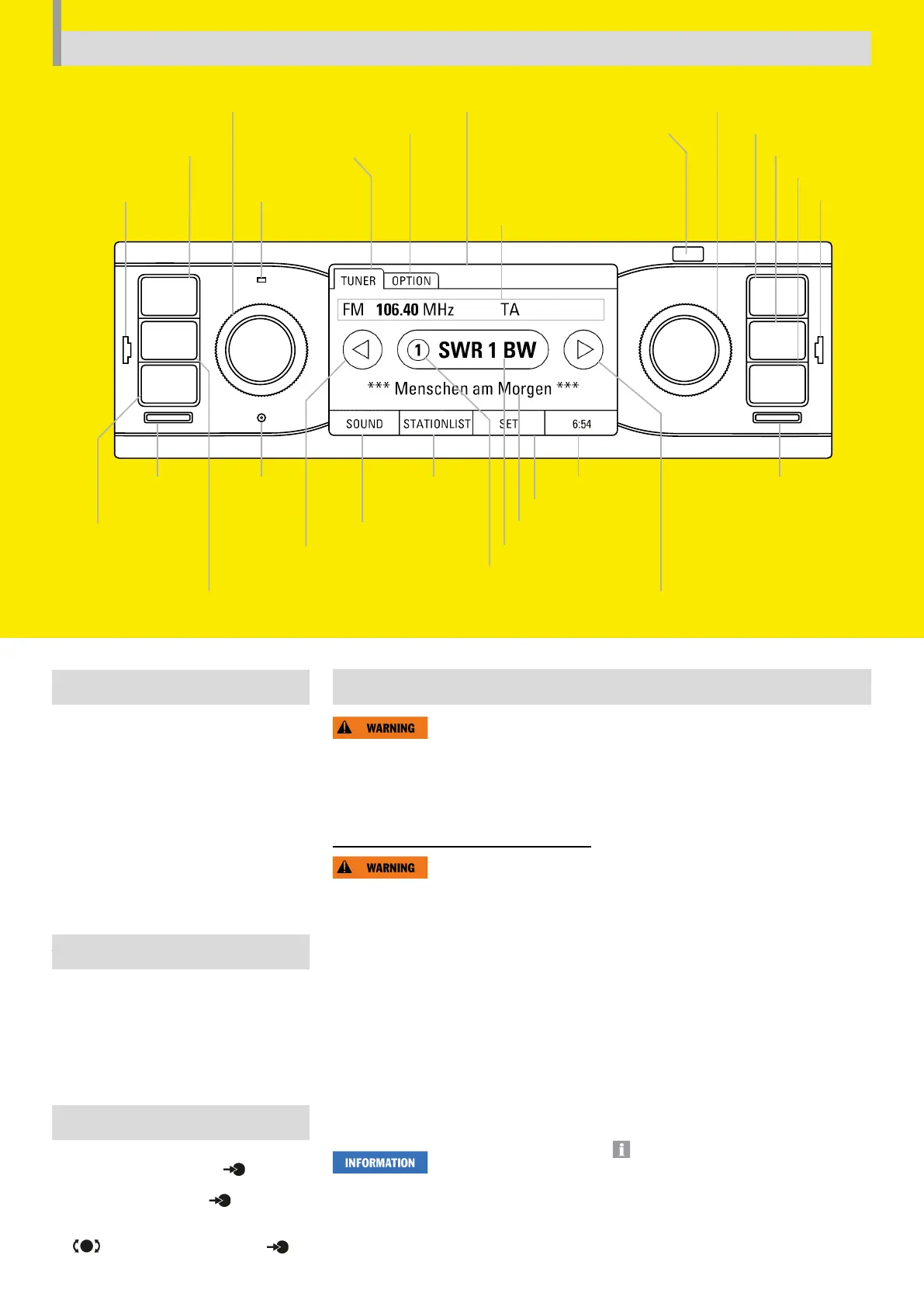

Controls
iPod/iPhone/USB stick/SD card/AUX in/BT media
MAP
SD
TUNER
MAP
BACK
MEDIA
PHONE
NAVI
On/O/Volume/Mute/Cancel TA
Microphone
Touchscreen
Tuner menu
Tuner options
Band/Channel/
Trac announcement
indicator
Light sensor
Select/OK/Change frequency/Search/Store
Navigation menu
Map view
Back button
Unlocking
FM/AM
Unlocking
BT menu
SD slot media Reset
Previous stored
station/Search
Sound settings
Available stations
General settings
Clock
SD slot navigation
Next stored station/Search
RDS text
Station name
Program storage
Sign in mobile phone
So that your Bluetooth
®
device can be found by the
PCRN, please ensure that the Bluetooth
®
function on
the mobile telephone has been switched on and set
to “visible”. For further information please refer to the
operating instructions of your mobile device.
1. Press the PHONE button.
2. Select menu option Add new device. A scan
is started, and a list of all identied devices is
displayed.
3. Select your device from the list.
4. If requested, enter the pairing code (default: 1234)
into your mobile device or conrm the prompt at
the mobile device. When the PHONE main menu is
shown, the mobile device has connected success
fully.
Enter an address as destination
1. Press the NAVI button.
2. Select Find menu option.
3. Select Find Address menu option.
4. Enter Country.
5. Enter Town or Postcode.
6. Enter Street and House Number.
7. Select New Route menu option to select this
location as your destination. The route will be
calculated.
Set and save stations
1. Press the TUNER key.
2. Briey press the right-hand knob
to set the
next available station.
3. Press and hold the right-hand
knob. The list of
stored stations is displayed.
4. Select the program storage via the right-hand knob
and store by pressing the right-hand
knob for an extended period.
Important information
Risk of accident! Any distraction may lead to a loss
of control over your vehicle.
 
Only operate the controls of your PCRN when it is
safe to do so and when trac permits.
If you have any doubt, stop and use the PCRN when
the vehicle is at standstill.
Risk of accident! The navigation system assists
the driver by suggesting a route. It is still your
sole responsibility as the driver to drive safely
and to observe and comply with all laws and legal
requirements pertaining to road safety. It is your
obligation as the driver to be aware of the trac
situation at all times. You as the driver are solely
responsible for the safe operation of your vehicle.

Always be aware of the trac situation.
Important information concerning installation
This device was designed for use in vehicles with a 12
volt battery. Before you install the radio device in your
vehicle, make sure that the battery voltage conforms to
the radio device. If this is not the case, use a voltage
transformer to convert the supply voltage to 12 volt.

Risk of short circuit and re when working on
vehicle electrical systems. Disconnect the battery
when working on vehicle electrical systems.

To prevent short circuits in the cabling and damage
to the device, secure all cables with cable clamps
or insulating tape. Do not run cables past places
that heat up. To ensure that the cable insulation
remains intact, also avoid places with moving parts,
such as the gear lever, handbrake lever or seat rails.

To prevent short circuits and damage, do not route
cables through the engine compartment to connect
to the battery.

If the fuse is detective, replace it only with a new
15 ampere fuse. Never use a fuse other than that
stated, since this can cause cable res or short
circuits.

Never connect devices to the battery, since this
can cause the battery to overheat.

Ensure that all cable connections to the loudspea-
kers are properly insulatedin order to prevent short
circuits.

Avoid connections from the earth cable to the
loudspeaker output, as this can damage the internal
power amplier.

The maximum load of the used loudspeaker is 4 x
45 watt.

Make sure the loudspeaker is correctly connected,
since the navigation announcements are routed only
to the front loudspeakers.

In principle, no tachometer signal is required for the
functionality of the device.

We recommend that the device is installed at a
specialist workshop.
Vehicles with antenna ampliers must connect the
ISO plug (black) to PIN5 (blue). If you have any
questions, please contact your Porsche Centre.
Frequency range:

Porsche Classic Radio Navigation System Specifications
