IF YOU NEED TO PULL DOWNWARD, YOU WILL NEED TO INSTALL
EITHER A PULLEY OR A ROLLER TO PREVENT DAMAGE TO THE WINCH SUPPORT
PLATE.
MAKE SURE THE ANCHORING VEHICLE’S HAND BRAKE IS ON AND
WORKING PROPERLY. POSITION BLOCKS BEHIND THE WHEELS TO PREVENT ROLL
BACK.
3.3.4 Using the winch support plate (PCA-1268) with Heck-Pack system for 50 mm
European balls (PCA-1266) and winch support plate adaptor (PCA-1265)

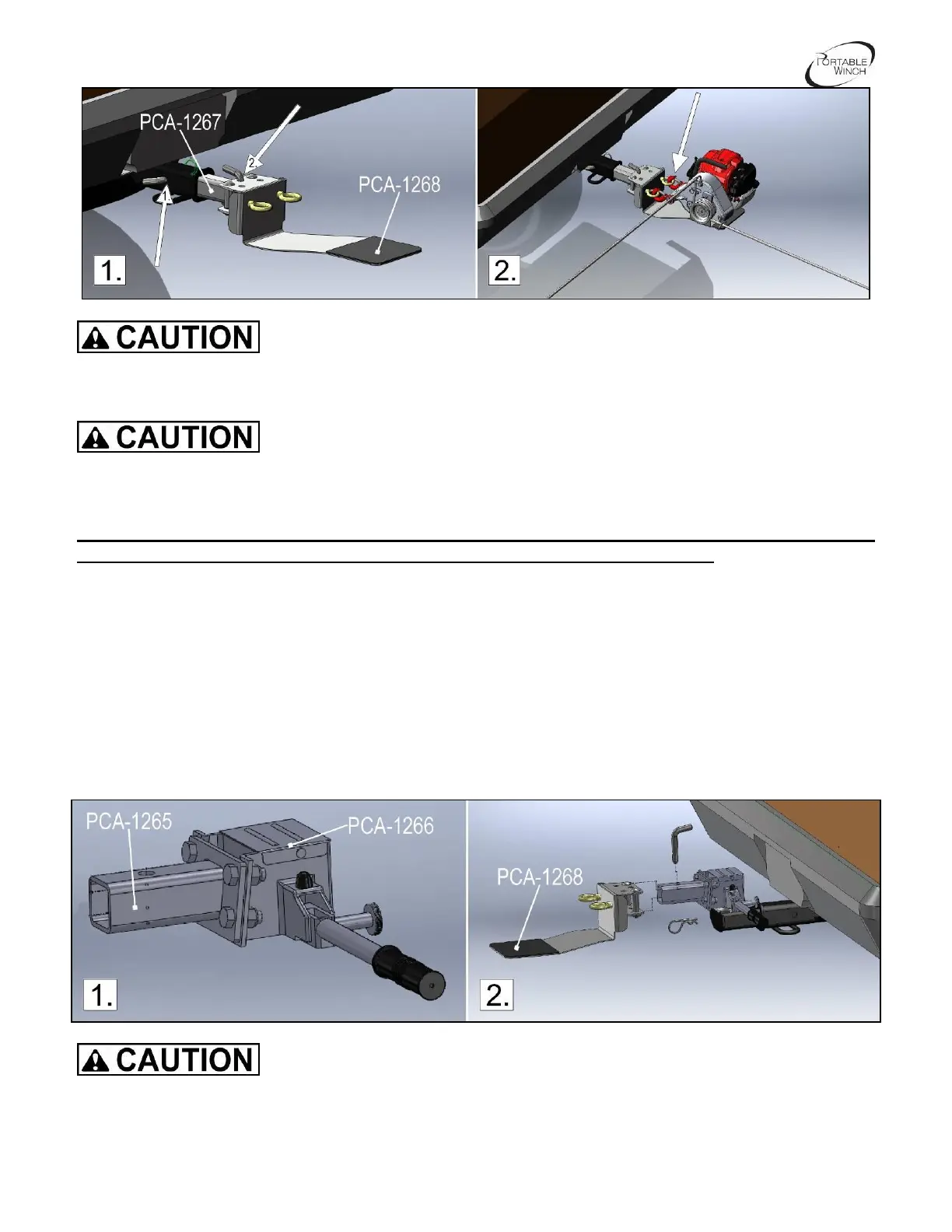

1) Figure 1: Bolt the winch support plate adaptor (PCA-1265) onto the Heck-Pack system
(PCA-1266) with the 4 bolts provided;
2) Figure 2: Insert the Heck-Pack on the ball and fasten it down with the lever;
3) Figure 2: Slide the winch support plate (PCA-1268) onto the square tubing and secure it
with both the hitch pin and the ‘’R’’ pin;
Note: Its lateral movement can be adjusted by positioning the bolts into the square holes;
4) Attach the winch anchor hooks to the eye bolts (as shown in section 3.3.3);
5) Wrap the rope around the drum and start winching. The winch will align itself
automatically with the load.
IF YOU NEED TO PULL DOWNWARD, YOU WILL NEED TO INSTALL
EITHER A PULLEY OR A ROLLER TO PREVENT DAMAGE TO THE WINCH SUPPORT
PLATE.
