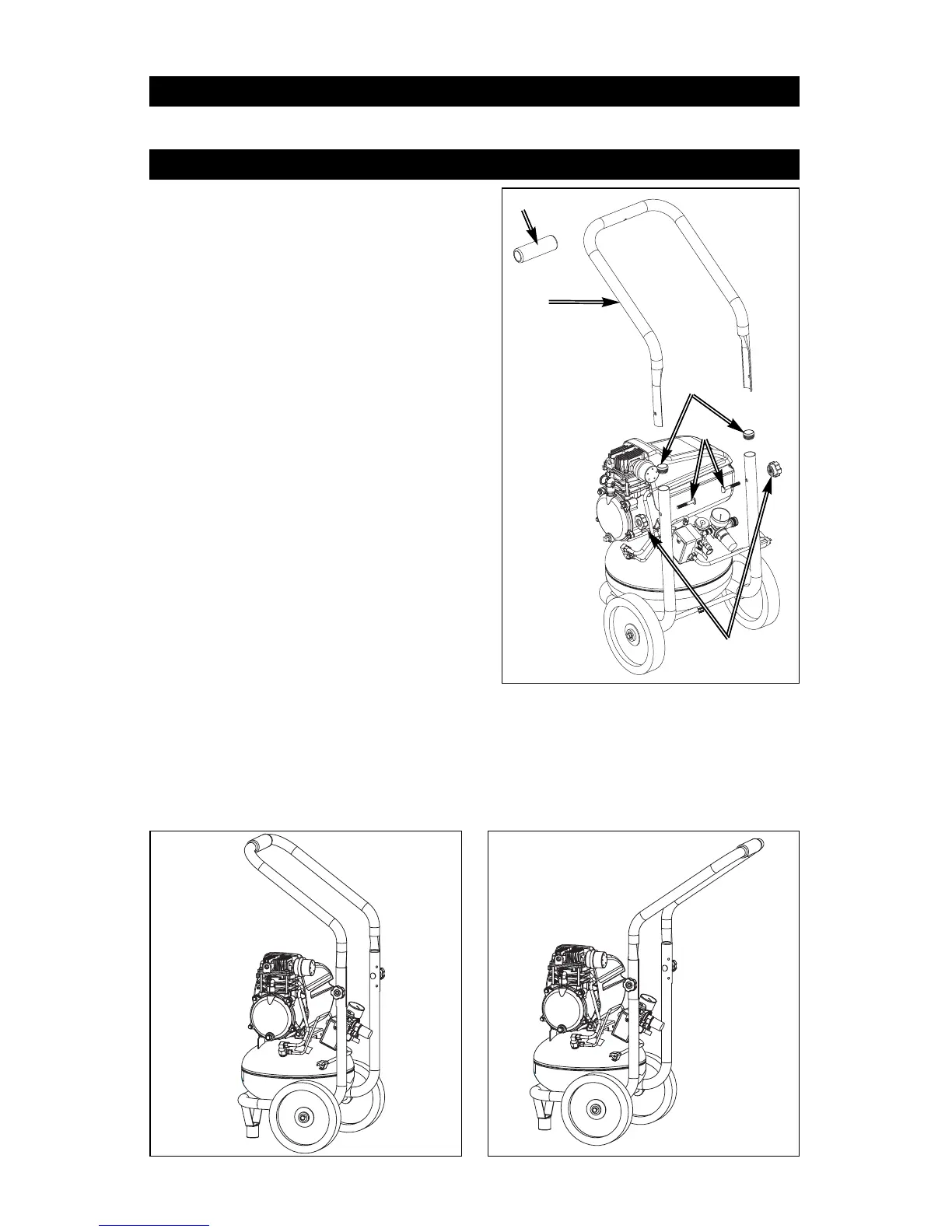

ASSEMBLY
HANDLE ASSEMBLY
1. To make installation easier, submerge
handle grip (C) into warm soapy water.
Remove handle grip (C) from soapy
water and slide onto handle (D).
2. Press tube plugs (E) into frame
assembly as shown.
3. Attach handles (D) to frame using
knobs (F) and saddle bolts (G)
supplied. Choose the recommended
or alternative position for the handles
as shown below.
C
D
E
F
G
RECOMMENDED HANDLE
ASSEMBLY
NOTE: This position of the handle
provides maximum protection to the air
compressor components.
ALTERNATE HANDLE
ASSEMBLY
NOTE: This position of the handle
allows easier mobility but does not
provide maximum protection to the air
compressor components.
