Battery Pack Installation.
1. Insert charged battery in the handle and secure with release button.
The spring must snap into place.
2. Separate the battery from the machine by pressing thr release button
below the machine handle.
Use only Battery Packets which have been produced by the
original manufacturer.
Always keep the charger free from dust and dirt.
Insert the Battery Packet into the charger. Verify correct
polarity before charging.
Always remove Battery Packet before working on the tool.
Cover the Battery Packet contacts to avoid short circuiting
the Battery Packet.
7.
8.
9.
10.
11.
Avoid the risk of explosion! Do not throw Ni-Cd
batteries into water or fire.
Protect the Battery Packet from impacts. Do not
open packet.
Never completely discharge the Battery Packet.
Recharge occasionally if Battery Packet is not in
use for a prolonged period.
12.
13.
14.
1.
2.
3.
Figure 2
1. CORDLESS DRILL.
2. BATTERY PACK.
3. RELEASE BUTTON
FIGURE 2
FIGURE 1
OPERATING INSTRUCTIONS AND CONTENTS
5
4
4.
3.
2.
1.
5.
6.
7.
8.
9.
10.
11.

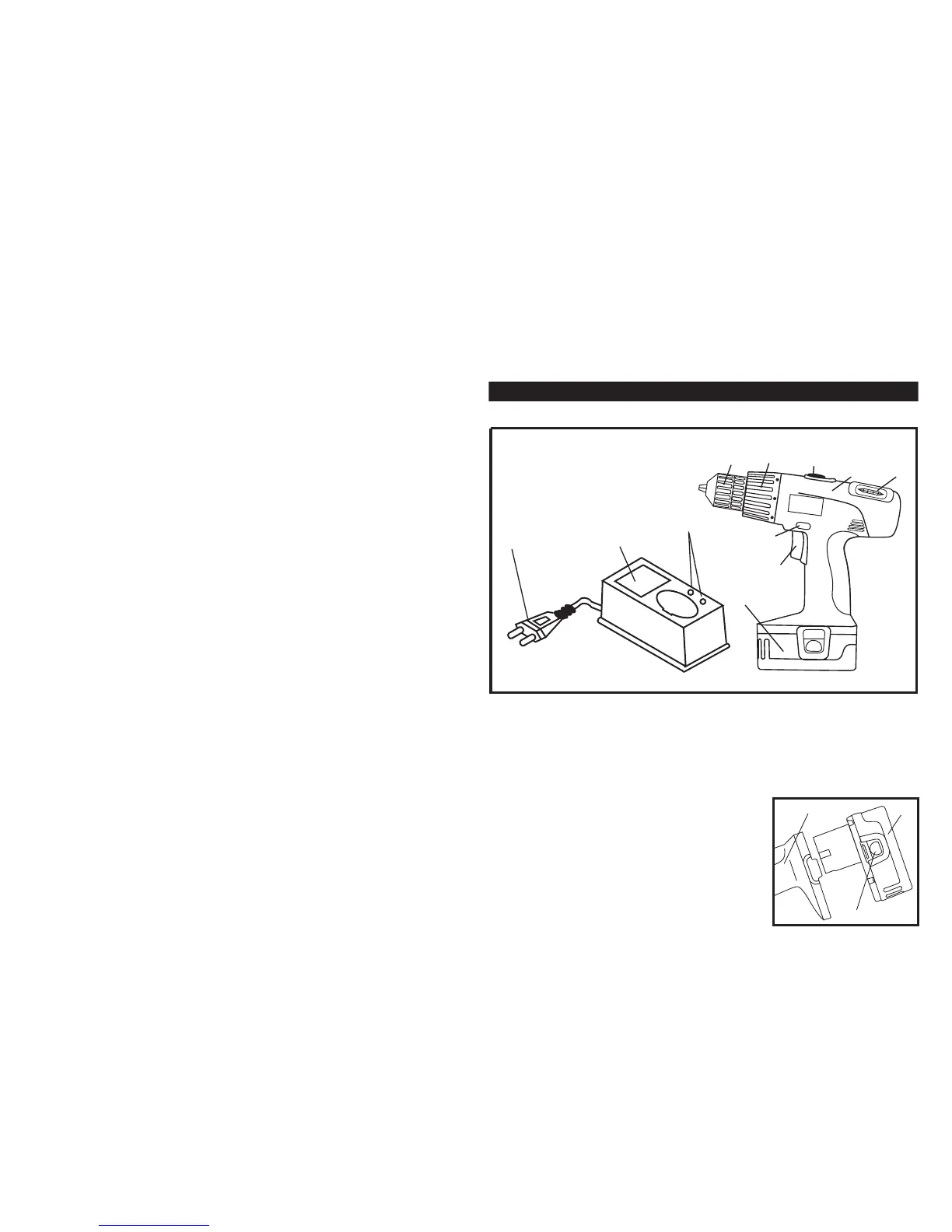

Figure 1
1. Cordless drill
2. Speed regulate button
3. 16-stage torque adjustment ring
4. Keyless drill chuck
5. Reverse switch
6. On-Off switch with speed control
7. Battery packet
8. AC Plug
9. Charger base
10. Indicator lights
11. Driver storage
DIAGRAM OF THE CORDLESS DRILL
