Power Wheels F-150 - Assembly - Steering System; Installing Dash Labels and Steering Column

W1070pr-0920
9
Steering Wheel
Large Opening
Steering
Column
Lower Bend Down

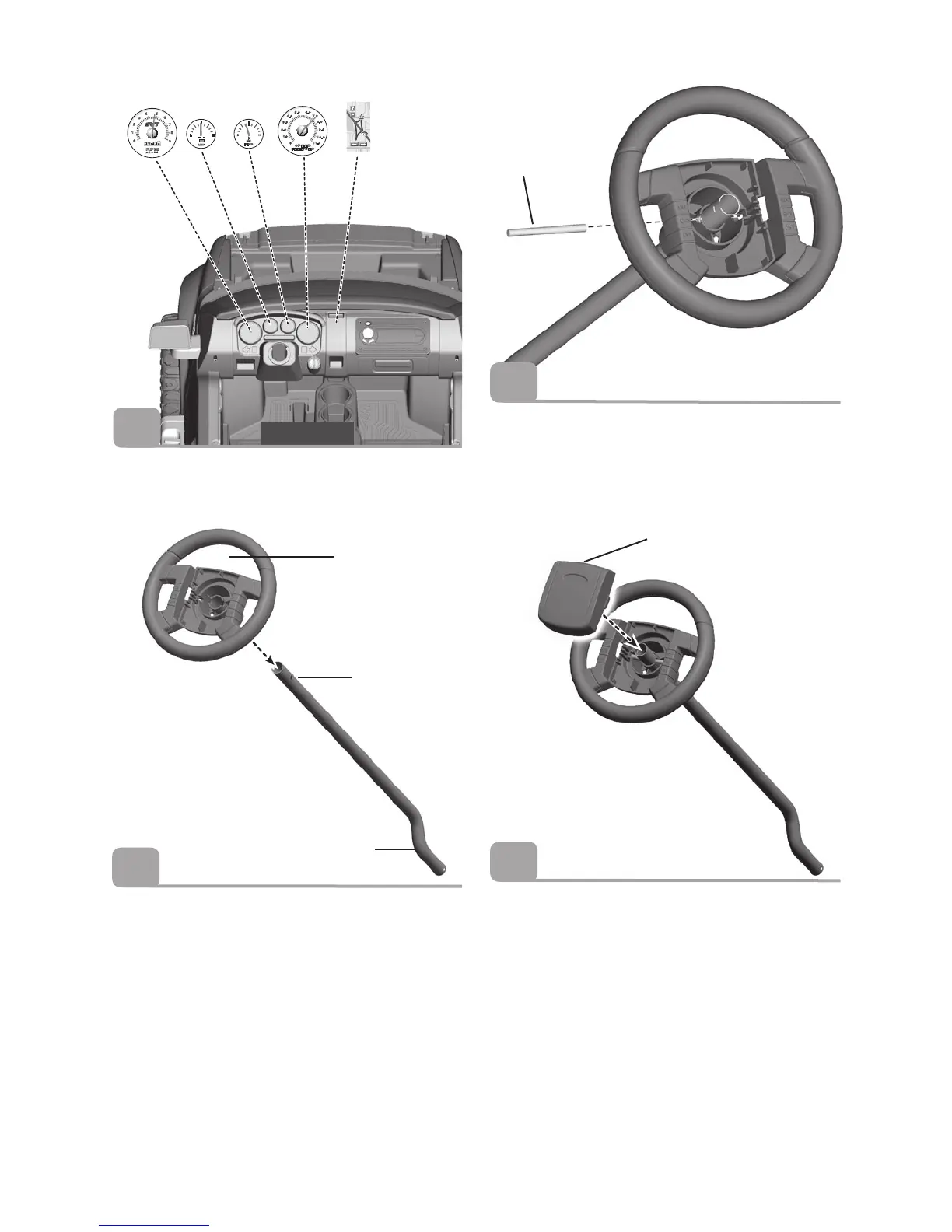

•Placethelabelsexactlyasshownintheillustrationand
avoid repositioning a label once it has been applied.
•Wipethesteeringcolumnwithapapertoweltoremove
any excess lubricant.
•Positionthesteeringwheelsothatthelarge opening
is upright.
•Positionthesteeringcolumnwiththelower bend
down, as shown.
•Fitthesteeringwheelontothesteeringcolumn.
5
DASH VIEW
•Aligntheholeinthesteeringwheelwiththeholeinthe
steering column.
•Insertthe0,25"x2,85"pinall the way through the
hole in the side of the steering wheel and through the
steering column, as shown.
6
•“Snap” the steering wheel cover onto the steering wheel.
Hint: If the steering wheel cover does not "snap" onto
the steering wheel, you have not properly assembled
the steering column to the steering wheel. Remove the
pin and the steering column from the steering wheel
and refer back to Assembly steps 5 and 6.
7
0,25" x 2,85" Pin
Steering Wheel Cover
ASSEMBLY
4
24
30 31
23
32
