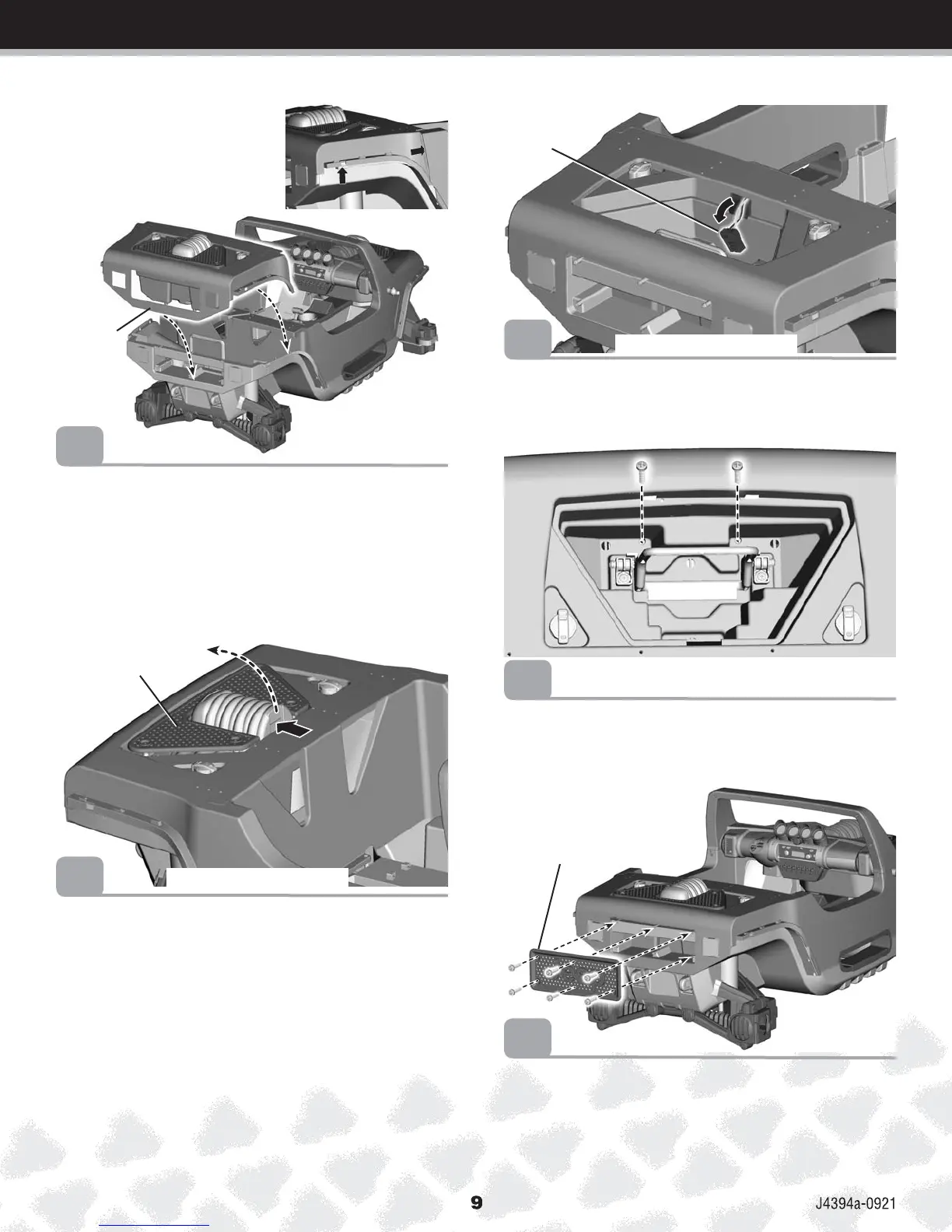

• Fit the rear clip onto the rear end of the vehicle and over the
rear bumper.
• Make sure the tabs on each side of the rear clip fit into the
sides of the vehicle.
• “Snap” the sides of the rear bumper into the openings on
each side of the rear clip.
2
Rear Clip
• Pull the motor harness connector through the opening in the
rear clip and into the trunk.
4
• Fit the rear grille to the rear bumper.
• Insert six screws into the rear grille and tighten.
6
Motor Harness
Connector
• Using safety scissors, cut the plastic tie holding the trunk lid
in place.
• Press the tab on the trunk lid and lift to remove it.
3
Trunk Lid
Rear Grille
• Insert two screws into the trunk and tighten.
• Replace the trunk lid.
5
SIDE VIEW
TOP VIEW
REAR VIEW
