The Powermate PM7500-PM9400E Portable Generator is a robust power solution designed for various applications, providing reliable electricity when and where it's needed. This owner's manual outlines its function, usage, and maintenance to ensure safe and efficient operation.

Function Description

The portable generator serves as an independent power source, converting fuel into electrical energy to operate a wide range of tools, appliances, and other electrical devices. It's particularly useful in situations where grid power is unavailable, such as during power outages, at construction sites, or for outdoor events. The PM7500-PM9400E models are equipped with different power outputs, indicated by their model numbers, to cater to varying power demands.

A key safety feature integrated into some models is the COsense® Carbon Monoxide (CO) Detection and Shut-off System. This system actively monitors for the accumulation of poisonous CO gas from the engine exhaust. If increasing levels of CO are detected, the system automatically shuts off the engine to protect users from potential carbon monoxide poisoning. This is crucial as CO is a colorless, odorless, and poisonous gas that can be deadly. The COsense® module only monitors when the engine is running and is not a substitute for an indoor carbon monoxide alarm. When a CO shut-off occurs, a blinking RED light on the COsense badge notifies the user of the hazard, prompting them to move the generator to an open, outdoor area with exhaust pointed away from people and buildings. If a system fault occurs, a YELLOW light will blink, indicating that the module may need servicing by a trained technician.

The generator also features a low oil level shutdown system, which automatically turns off the engine if the oil level drops below a specified point. This prevents potential engine damage due to insufficient lubrication. The engine will not restart until the oil has been refilled to the proper level.

Usage Features

Operating the Powermate generator involves several steps to ensure safety and optimal performance. Before starting, users must verify the engine oil and fuel levels, ensuring the unit is placed on a level surface in a well-ventilated outdoor area, far from windows, doors, and vents, with proper clearance on all sides to prevent overheating.

The generator offers both pull-start and electric-start options (if equipped). For pull-start engines, the process involves opening the fuel shut-off valve, setting the engine dial to "COLD START" (for cold engines) or "RUN" (for warm engines), bracing the frame, and firmly grasping the recoil handle to pull it rapidly. For electric-start models, after opening the fuel shut-off valve and setting the engine switch to "ON," the START/STOP button is pressed and held to prime the starter. The button illuminates green when ready.

Electrical loads should always be disconnected from the generator's receptacles before starting or stopping the engine to prevent equipment damage. The generator's control panel includes various receptacles, such as 120 Volt AC, 20 Amp, GFCI Duplex Receptacles and 120/240 Volt AC, 30 Amp, Twistlock Receptacles, protected by push-to-reset circuit breakers. Users must ensure that the total wattage of connected devices does not exceed the generator's capacity and that individual panel receptacles are not overloaded. A Wattage Reference Guide is provided to help users determine how many items can be operated simultaneously.

Proper grounding of the portable generator is essential, especially when connecting it to a building's electrical system via a manual transfer switch. The manual emphasizes that the generator's frame and external electrically conductive parts must be properly connected to an approved earth ground in accordance with the National Electric Code (NEC) and local electrical codes.

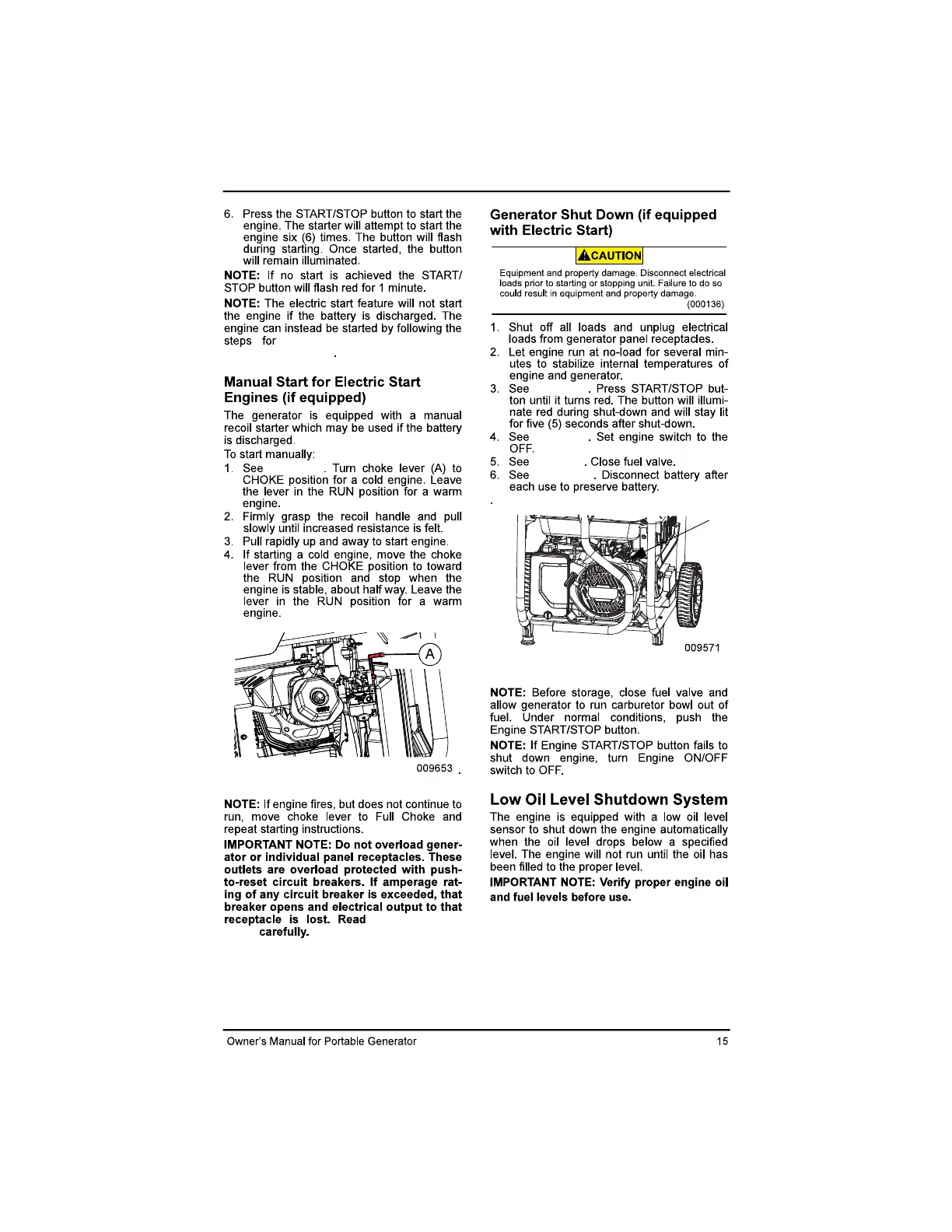

For shutting down the generator, all electrical loads must first be turned off and unplugged. The engine should be allowed to run at no-load for several minutes to stabilize internal temperatures. For pull-start models, the engine dial is rotated to "OFF," and the fuel valve is closed. For electric-start models, the START/STOP button is pressed until it turns red, the engine switch is set to "OFF," and the fuel valve is closed. If equipped with an electric start, the battery should be disconnected after each use to preserve its charge.

Maintenance Features

Regular maintenance is crucial for prolonging the life of the engine and equipment, ensuring optimal performance, and complying with emissions standards. The manual provides a detailed maintenance schedule, recommending service intervals based on hours of operation or yearly, whichever comes first. More frequent service may be required under adverse conditions like dirty or dusty environments.

Key maintenance tasks include:

Engine Oil: Checking the engine oil level before each use or every 8 hours of operation. Oil changes are recommended after the first 30 hours of operation, then every 100 hours or yearly. More frequent oil changes are necessary under heavy load or high temperatures. The manual specifies the recommended oil types based on ambient temperature.
Spark Plug: Inspecting and cleaning the spark plug every 200 hours or yearly, and replacing it if electrodes are pitted, burned, or porcelain is cracked. The spark plug gap should be checked and reset as specified.
Air Filter: Inspecting and cleaning the air cleaner filter every 200 hours or yearly. The air filter should be serviced more frequently in dirty or dusty conditions, and parts replaced if they cannot be adequately cleaned.
Spark Arrester: Inspecting and cleaning the spark arrester screen every 100 hours or yearly. The screen should be replaced if torn, perforated, or damaged.
Valve Clearance: Checking and adjusting valve clearance after the first 50 hours of operation, then every 300 hours or yearly. This task may require assistance from an Independent Authorized Service Dealer (IASD).
Preventive Maintenance: Daily cleaning of the generator, ensuring the area around the muffler is free from combustible debris, and inspecting all cooling air openings for obstructions. A damp cloth, soft bristle brush, and vacuum are recommended for cleaning, avoiding the use of a garden hose to prevent water from entering the engine's fuel system or internal windings.
Battery Charging (if electric start): The battery charger included in the accessory box should be used to keep the battery charged, as running the generator does not charge the battery.
Storage: For storage longer than 30 days, the fuel system must be prepared to prevent gum deposits. This involves adding fuel stabilizer and running the engine for 10-15 minutes to circulate it, or draining the fuel system completely. The engine oil should also be changed, and the spark plug removed to add a small amount of clean engine oil or fogging agent into the cylinder before reinstalling the spark plug. The unit should be stored in a clean, dry area with a suitable protective cover, away from heat and ignition sources.

The manual strongly recommends that maintenance work, especially for emissions control devices and systems, be performed by an Independent Authorized Service Dealer (IASD) to ensure warranty compliance and proper functioning.
