Powersmart DB8620 - Exploded View and Parts List

18

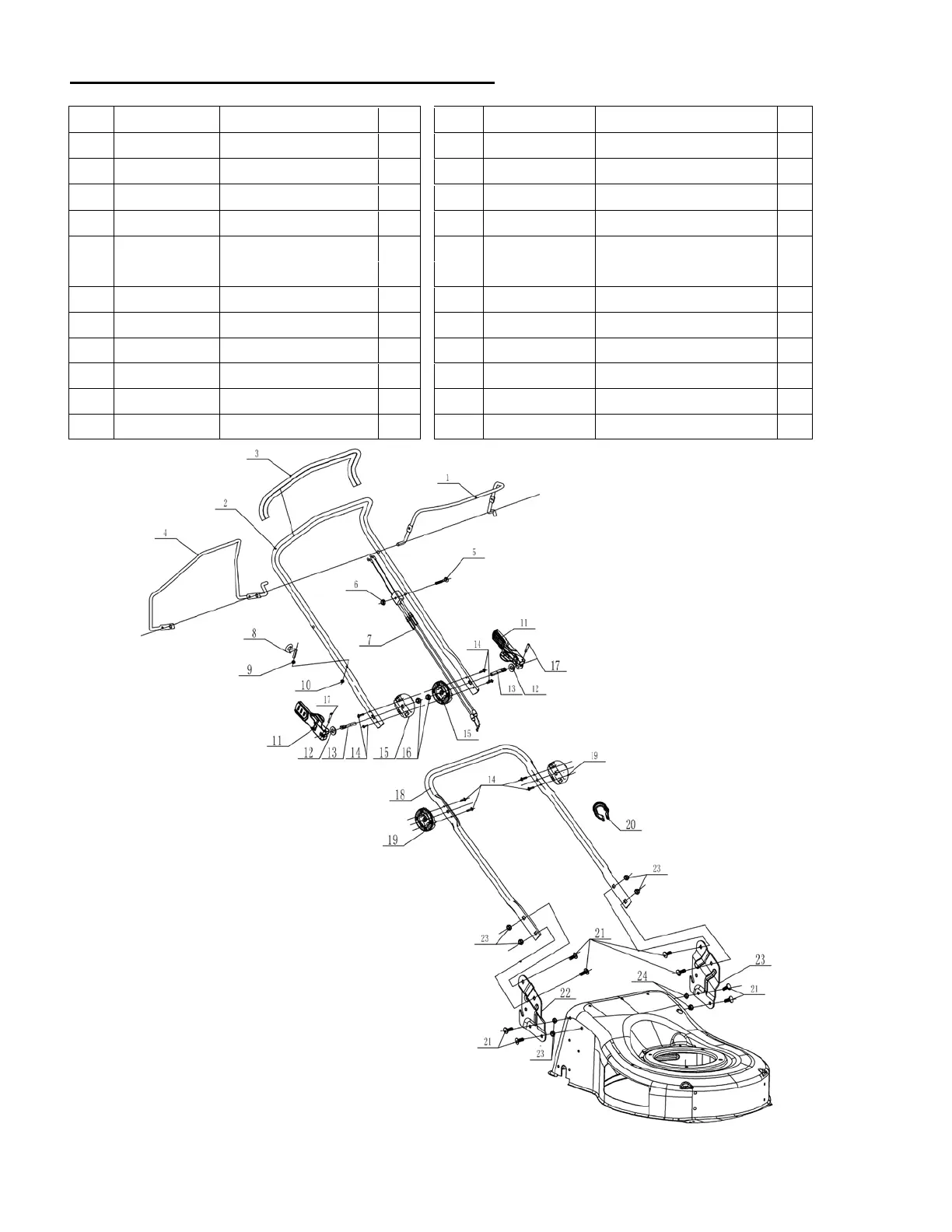

EXPLODED VIEW AND PARTS LIST
Handle Assembly
Item
Stock#
Description
Qty
Item
Stock#
Description
Qty
1
303080465
Engine control lever
1
13
303160611A
Screw
2
2
303070984A
Upper handle
1
14
303010269
Screw
8
3
302020019A
Sponge foam
1
15
303070983A
Upper handle base
2
4
303080466
Drive control bar
1
16
303030036
Nylon nut M8
6
5
303020502
Bolt M6x35
1
17
303123021
Cylindrical pin M5x26
2
6
303030032
Nylon nut M6
2
18
303070982A
Lower handle
1
7
303200099
Cable rubber plug
1
19
303070981A
Lower handle base
2
8
303160531
Rope hook
1
20
203040007
Cable clip
1
9
303030065
Nut M6
1
21
303020332
Square neck bolt
8
10
303030025
Cover type nut M6
2
22
203090013A
Right bracket
1
11
303230014A
Handle lock lever
2
23
203090012A
Left bracket
1
12
303042116
Flat washer 8
2
24
303030077
Nylon nut M8
4
