GETTING TO KNOW YOUR PSX continued

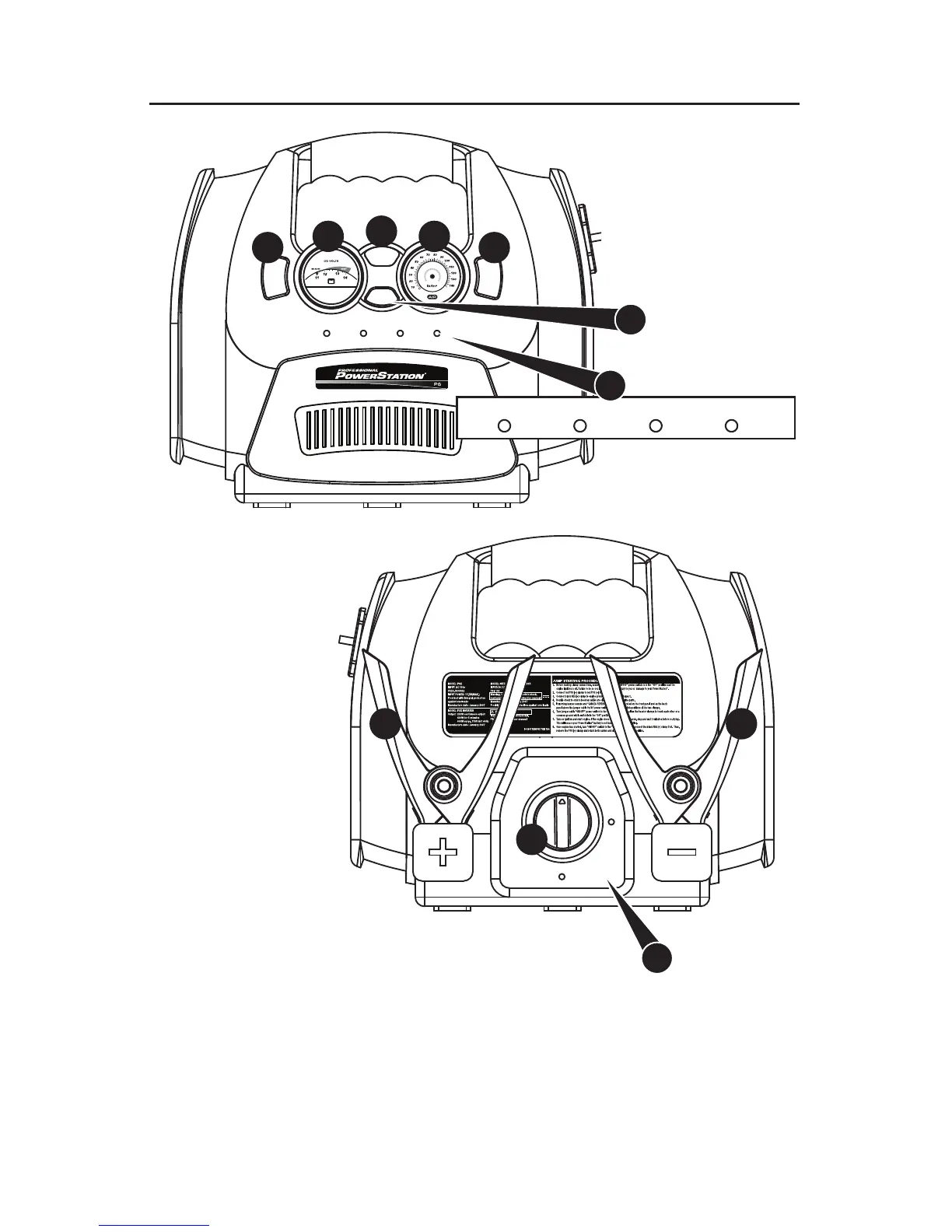

Figure 2
G. Battery test button
H. Voltmeter
I. Work light
J. Compressor gauge
K. Compressor ON/OFF button
L. Work light ON/OFF button
M. Indicator lights: cable power on / charging / full charge / cables reversed
N. Positive clamp
O. Negative clamp
P. Jumper cable ON/OFF switch
Q. Cables reversed LED indicator light
CHARGINGCABLE POWER FULL CHARGE
LIGHT
ON/OFF
CABLES REVERSED
BATTERY
TEST
COMPRESSOR
ON/OFF
PSXPS
CABLES REVERSED
OFF
ON
B. B.
B. B.
B.
G.
N. O.
P.
K.
H. J.
I.
L.
CHARGINGCABLE POWER ON
ON
FULL CHARGE CABLES REVERSED
M.
Q.
