F
E
D
C
G
A
ACCESS
DOOR
AIR
OUTLET
MODULE
B

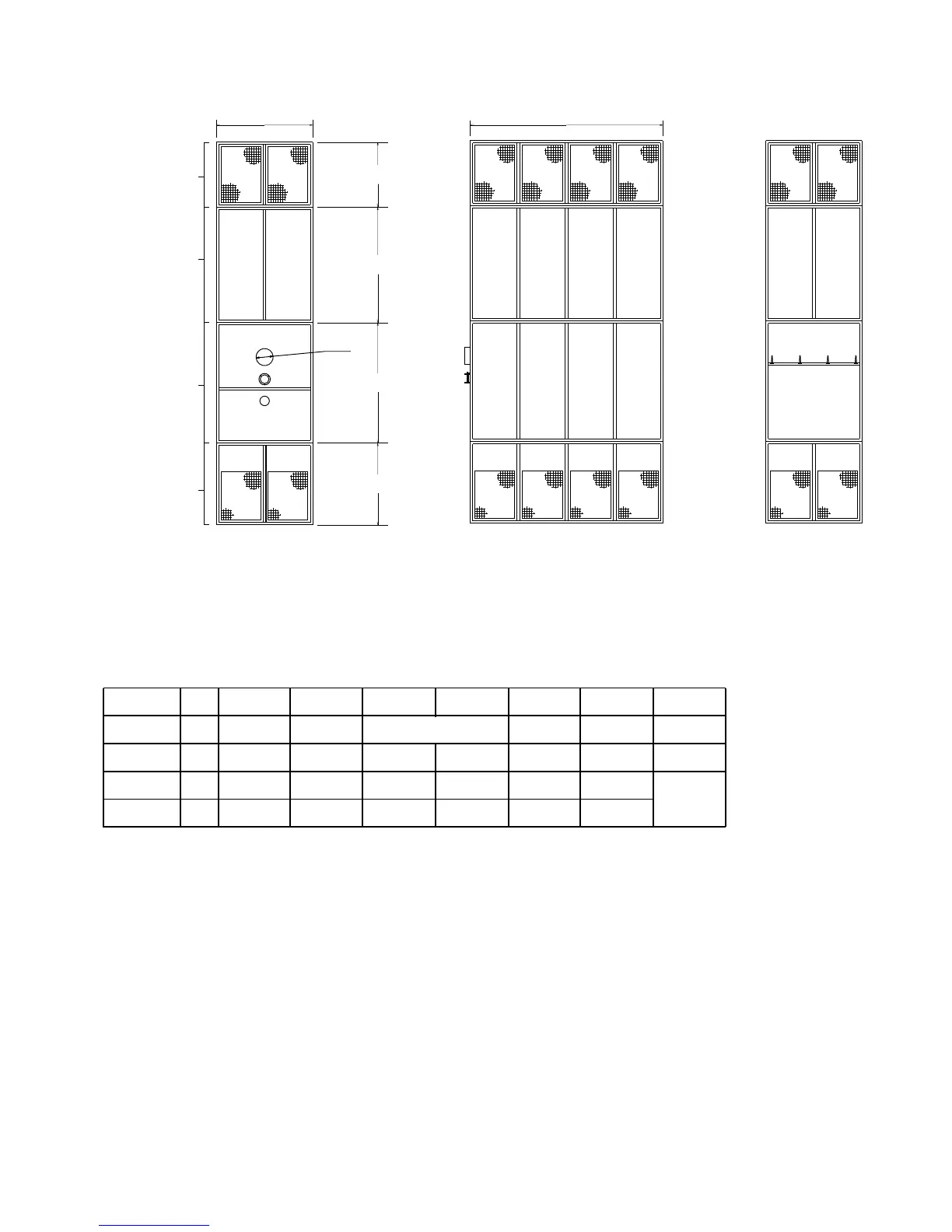

R.H. SIDE VIEW.FRONT VIEW
CLEAN OUT DOOR
REAR VIEW
EXTENSION
MODULE
HEAT
EXCHANGER
MODULE
FAN
MODULE
Note: TE 21 Fans and Combustion chamber/Heat exchanger are in one section
Table 1. Dimensions (S.I. Units)
TE21
TE31
TE41
TE61
Model A B C D E F G
mm
1010 1568 1873 in Total 1873 1416 150
mm
1162 2025 1213 1574 1778 660 200
mm
1518 2991 1213 1975 1899 959
300/350
mm
2026 4058 1721 2534 2432 1365
Specications, Burner Pressures and Electrical Data.
TE heaters are designed to suit individual applications. Please refer to the enclosed specification
sheet for the data specific to the heater supplied.
Note: The number of extension modules (0 - 2) depends on the application.
2 Technical Data
2.1 Dimensions
4
