Powtran PI500 series User Manual

Chapter 3 Keyboard
11
Chapter 3

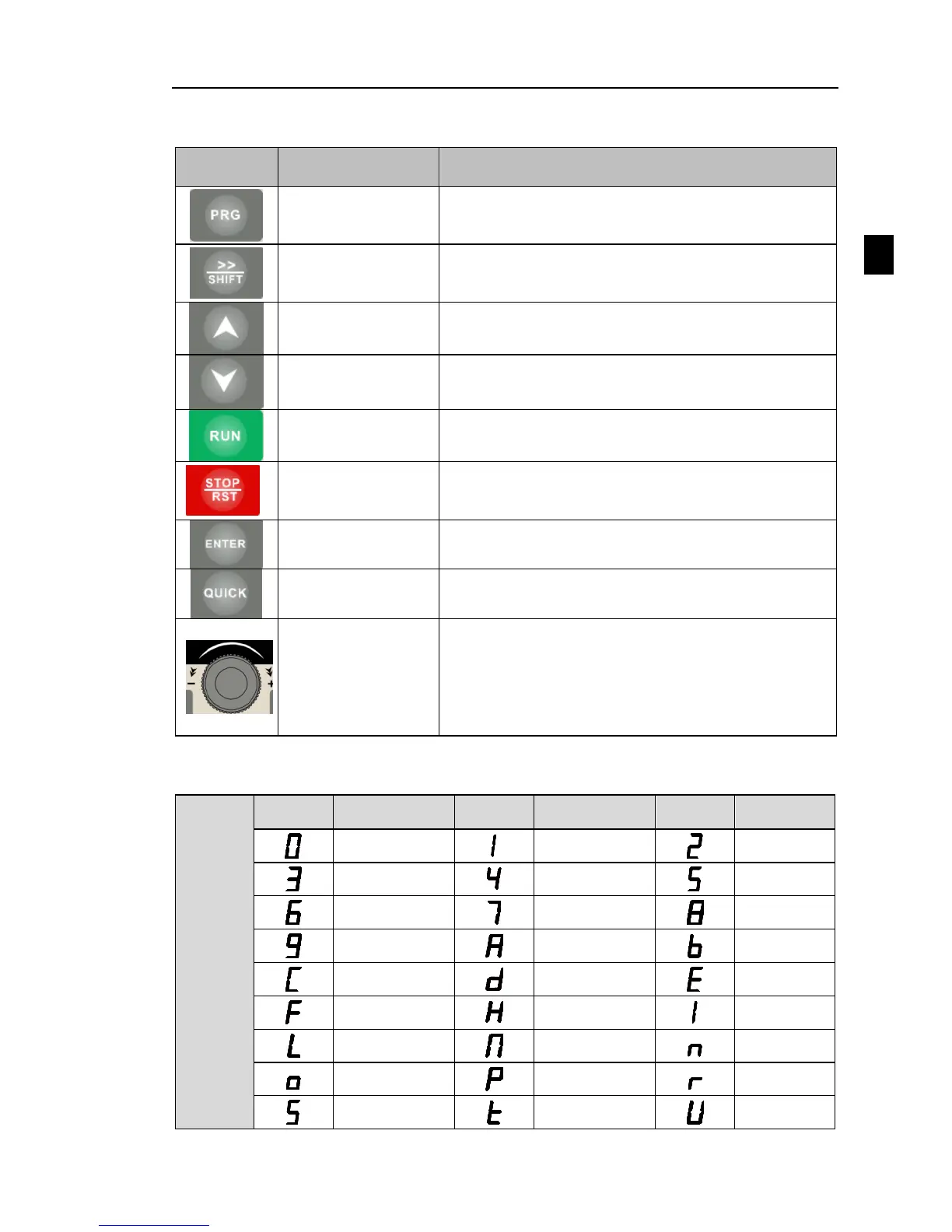

3-3.Description of operation panel keys
Sign
Name
Function
Parameter Setting/Esc
Key
* Enter into the modified status of main menu
* Esc from functional parameter modification
* Esc submenu or functional menu to status menu
Shift Key
*Choose displayed parameter circularly under running or
stop interface; choose parameter‟s modified position when
modify parameter
Increasing Key
Parameter or function number increasing,set by
parameter F6.18.
Decreasing key
Parameter or function number decreasing, set by
parameter F6.19.
Running key
For starting running in the mode of keyboard control status
Stomp/Reset Key
*For stopping running in the running status; for resetting
the operation in fault alarm status. The function of the key
is subject to F6.00
Running key
For starting running in the mode of keyboard control status
Quick multifunction
key
This key function is determined by the function code
F6.21.
Keyboard encoder
* In query
status
, function parameter increasing or
decreasing
* In modified status, the function parameter or modified
position
increasing or decreasing.
* In monitoring status, frequency setting increasing or
decreasing
3-4.Keyboard display letters and numbers correspondence
table
Digital
display
area
Display
letters
Corresponding
letters
Display
letters
Corresponding
letters
Display
letters
Correspondi
ng letters
0
1
2
3
4
5
6
7
8
9
A
B
C
d
E
F
H
I
L
N
n
o
P
r
S
t
U
