PPG wave 2.2 - Service Set A - Single Components; Pots; Switches; Connectors and Sockets

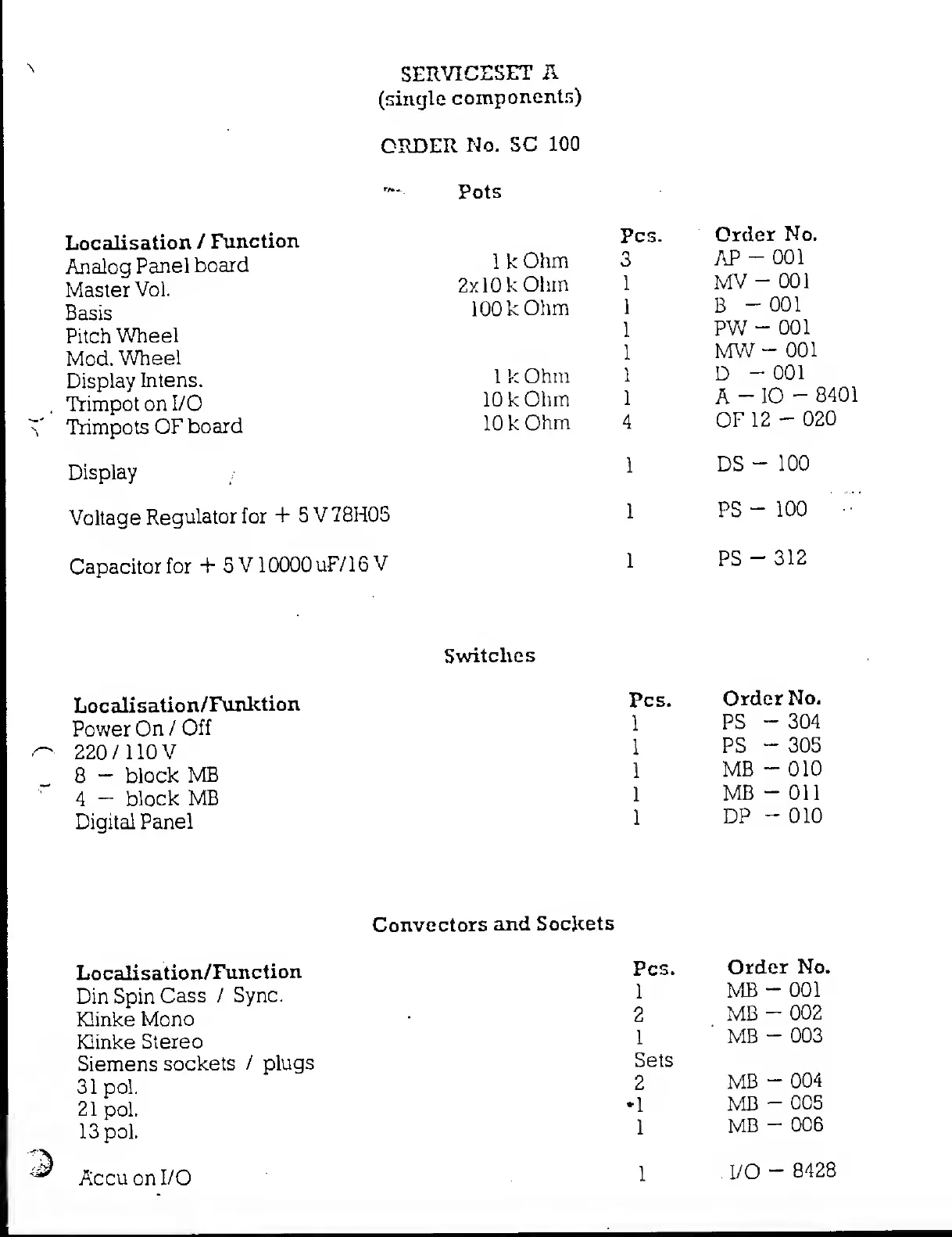

SERVICESET A
(single components)
ORDER No. SC 100
Pots
Localisation / Function
Pcs.
Order No.
Analog Panel board
1 k Ohm
3
AP - 001
Master Vol.
2x10 k Ohm
1
MV — 001
Basis
100 k Ohm
1
B - 001
Pitch Wheel
1
PW - 001
Mod. Wheel
1
MW - 001
Display Intens.
1 k Ohm
1
D - 001
Trimpot on I/O
10 k Ohm
1
A - IO - 8401
Trimpots OF board
10 k Ohm
4
OF 12 - 020
Display
1
DS - 100
Voltage Regulator for + 5 V 78H05
1
PS - 100 ■■
Capacitor for -P 5 V 10000uF/16 V
1
PS - 312
Switches
Localisation/Funktion
Power On / Off
220 / 110 V
8 - block MB
4 — block MB
Digital Panel
Pcs. Order No.
1 PS - 304
1 PS - 305
1 MB — 010
1 MB - Oil
1 DP ~ 010
Convectors and Sockets
Localisation/Function
Din Spin Cass / Sync.
Klinke Mono
Klinke Stereo
Siemens sockets / plugs
31 pol.
21 pol.
13 pol.
Accu on I/O
Pcs. Order No.
1 MB - 001
2 MB - 002
1 MB - 003
Sets
2 MB — 004
d MB - 005
1 MB - 006
1 I/O - 8428
