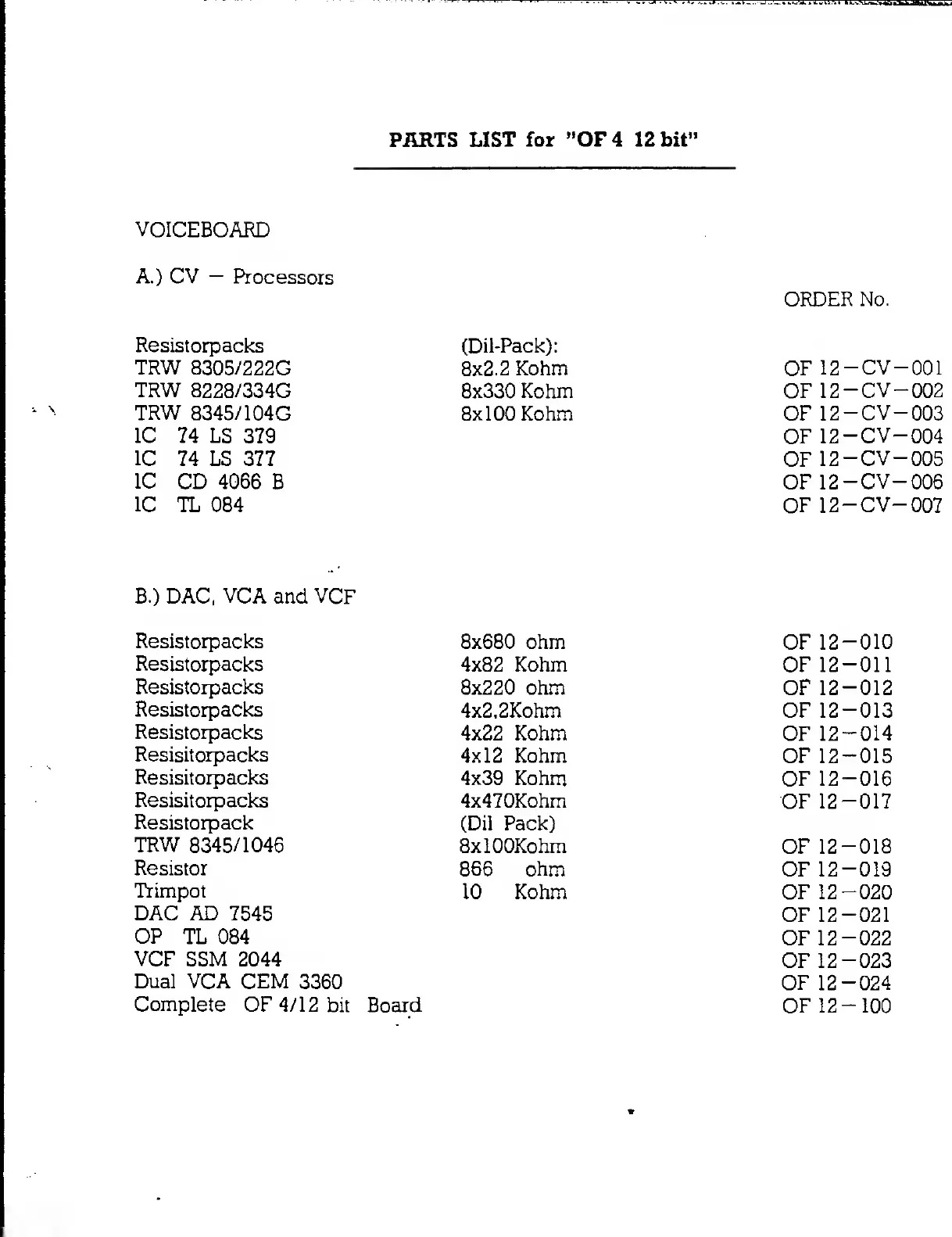

PARTS LIST for ”OF 4 12 bit”
VOICEBOARD
A.) CV — Processors
ORDER No.
Resistorpacks (Dil-Pack):
TRW 8305/222G 8x2.2 Kohm
TRW 8228/334G 8x330 Kohm
TRW 8345/104G 8x100 Kohm
IC 74 LS 379
IC 74 LS 377
IC CD 4066 B
IC TL 084
OF 12 — CV —001
OF 12 —CV —002
OF 12 —CV —003
OF 12 — CV —004
OF 12 — CV —005
OF 12 —CV—006
OF 12 —CV—007
B.) DAC, VCA and VCF
Resistorpacks 8x680 ohm OF 12-010
Resistorpacks 4x82 Kohm
OF 12-011
Resistorpacks
8x220 ohm
OF 12-012
Resistorpacks
4x2,2Kohm OF 12-013
Resistorpacks
4x22 Kohm OF 12-014
Resisitorpacks
4x12 Kohm
OF 12-015
Resisitorpacks
4x39 Kohm
OF 12-016
Resisitorpacks 4x470Kohm
OF 12-017
Resistorpack
(Dil Pack)
TRW 8345/1046 8xl00Kohm
OF 12-018
Resistor
866 ohm OF 12-019
Trimpot
10 Kohm
OF 12-020
DAC AD 7545
OF 12-021
OP TL 084
OF 12-022
VCF SSM 2044
OF 12-023
Dual VCA CEM 3360
OF 12-024
Complete OF 4/12 bit Board
OF 12-100
