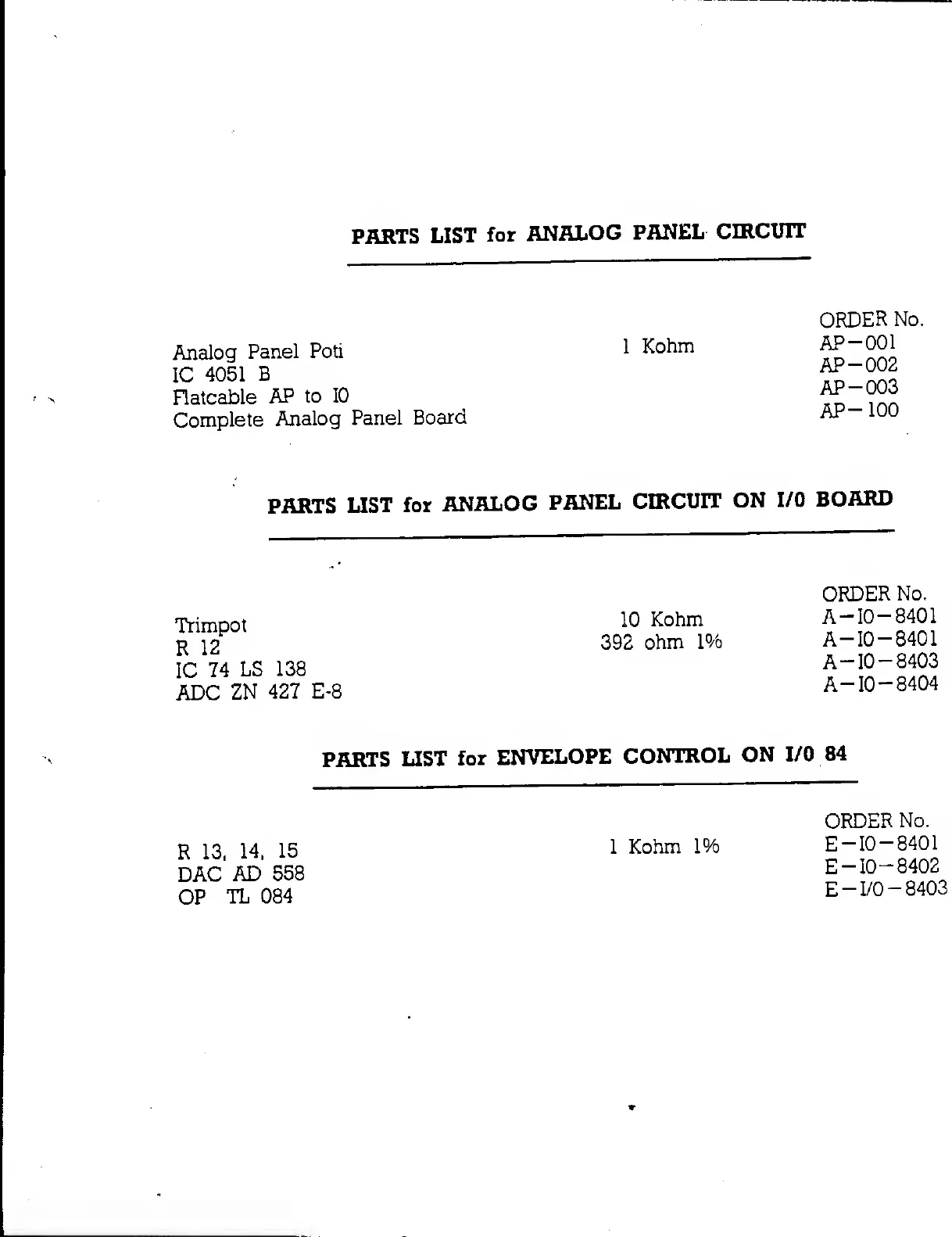

PARTS LIST for ANALOG PANEL CIRCUIT
Analog Panel Poti
IC 4051 B
Rateable AP to 10
Complete Analog Panel Board
ORDER No.
1 Kohm AP —001
AP —002
AP —003
AP-100
PARTS LIST for ANALOG PANEL CIRCUIT ON 1/0 BOARD
Trimpot
R 12
IC 74 LS 138
ADC ZN 427 E-8
ORDER No.
10 Kohm A-10-8401
392 ohm 1% A-10-8401
A-10-8403
A-10-8404
PARTS LIST for ENVELOPE CONTROL ON 1/0 84
ORDER No.
E —10 —8401
E-10-8402
E-1/0-8403
R 13, 14, 15
DAC AD 558
OP TL 084
1 Kohm 1%
