8 Maintenance
42

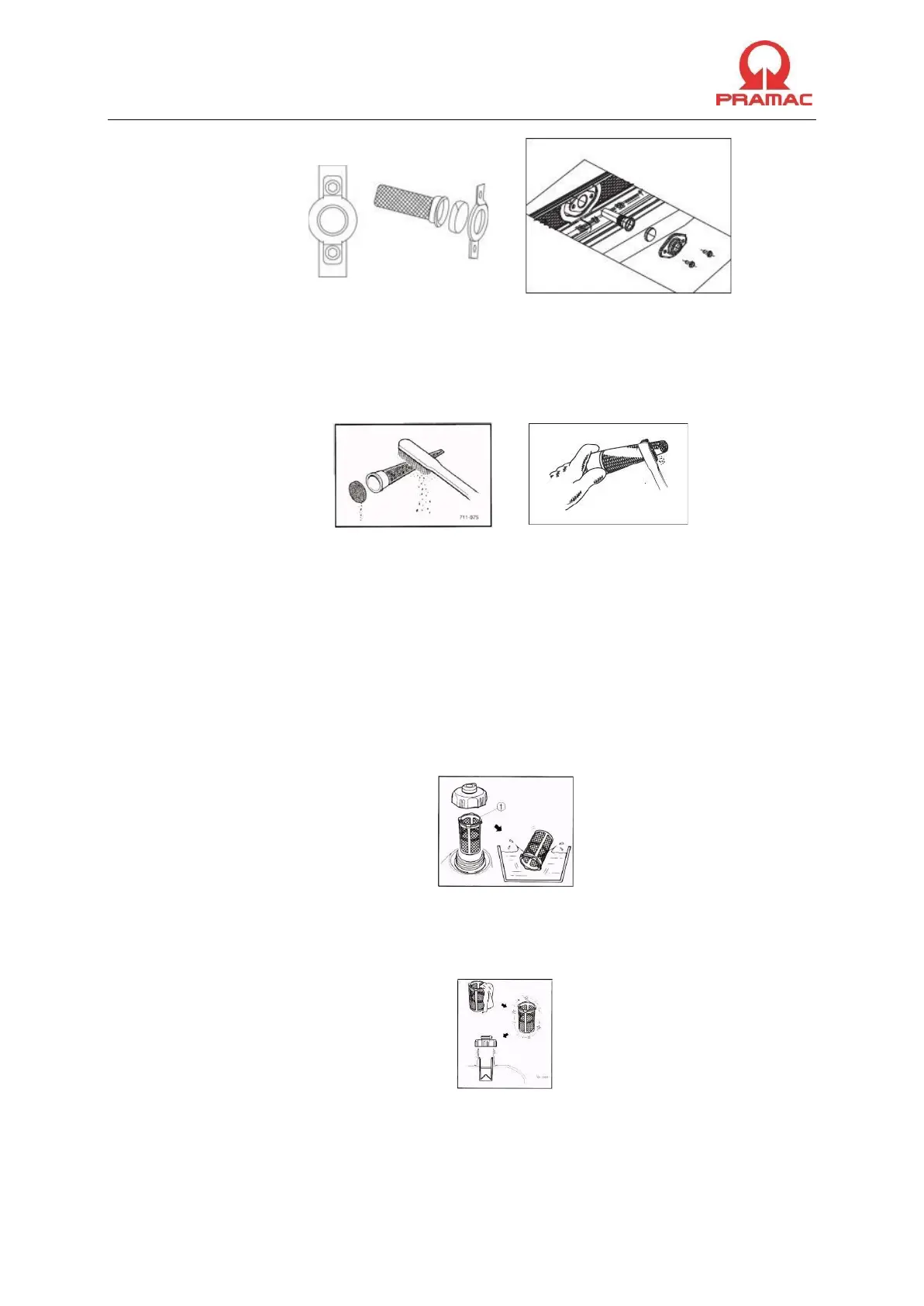

(Left image for P3000i-P3500i-P3500Io, right image for P7500i)
3. Remove the carbon deposits on the muffler screen and spark arrester using
a wire brush. Use wire brush lightly to avoid damaging the muffler screen or
spark arrestor.
(Left image for P3000i-P3500i-P3500Io, right image for P7500i)
4. Check the muffler screen and spark arrester replace them if damaged.
5. Install the spark arrester.
6. Install the muffler cap.
7. Install the cover and tighten the screws.
8.5 Fuel Filter Maintenance (where available)
Should be performed every 12 months or 300 hours.
1. Remove the fuel tank cap and filter.
2. Clean the filter with gasoline.
3. If damaged, replace it.
4. Wipe the filter and install it.
5. Install the fuel tank cap.
